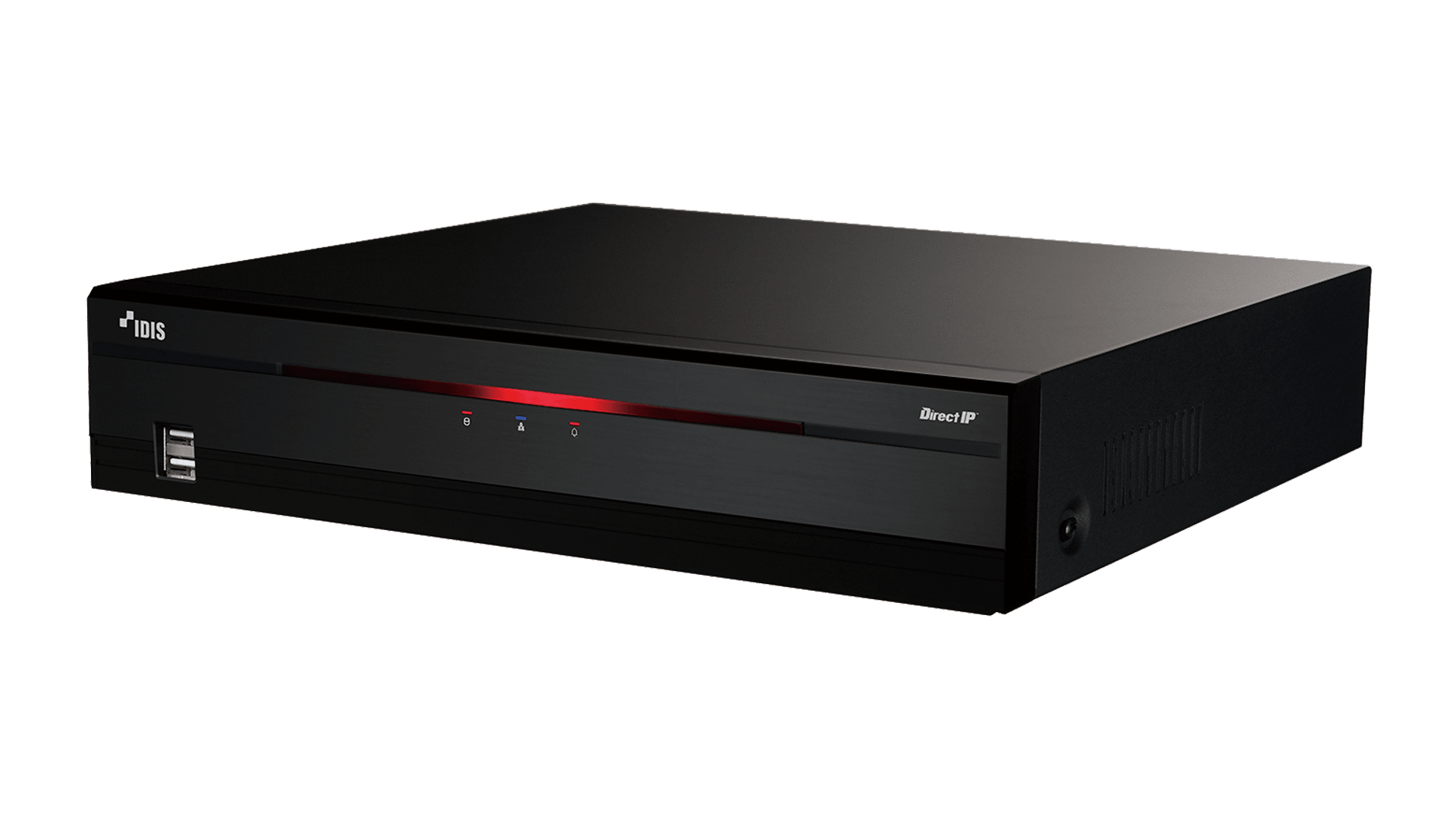

DR-2516P-10TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 320Mbps
- • Up to 480ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 480ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 8 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback 8ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.05A, 50.4W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |
This is a 16-channel Network Video Recorder designed for medium-scale, high-performance surveillance systems. It supports a broad range of IP cameras through DirectIP™, ONVIF™, and third-party protocols. A key feature is its eight integrated Power over Ethernet ports compliant with IEEE 802.3at, Class 4, which deliver both data and up to 50.4 watts of total power to connected devices, streamlining installation. An additional Gigabit Ethernet port allows for system expansion with an external switch.
The NVR excels at processing Artificial Intelligence metadata, enabling advanced Intelligent Deep Learning Analytics such as object detection, intrusion, and face detection, as well as Business Intelligence applications for occupancy monitoring. It records video at resolutions up to 12 Megapixels with a throughput of 180 Mbps, provides fluid 4K live viewing at up to 480 images per second, and supports 16-channel synchronous playback. Storage is handled by two internal SATA hard drive bays and an eSATA port. The unit operates on embedded Linux within a temperature range of 0°C to 40°C, with a power consumption of 26.4 watts for the NVR and up to 50.4 watts for the PoE subsystem.
