DR-2516P-8TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 320Mbps
- • Up to 480ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 480ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 8 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback 8ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.05A, 50.4W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |

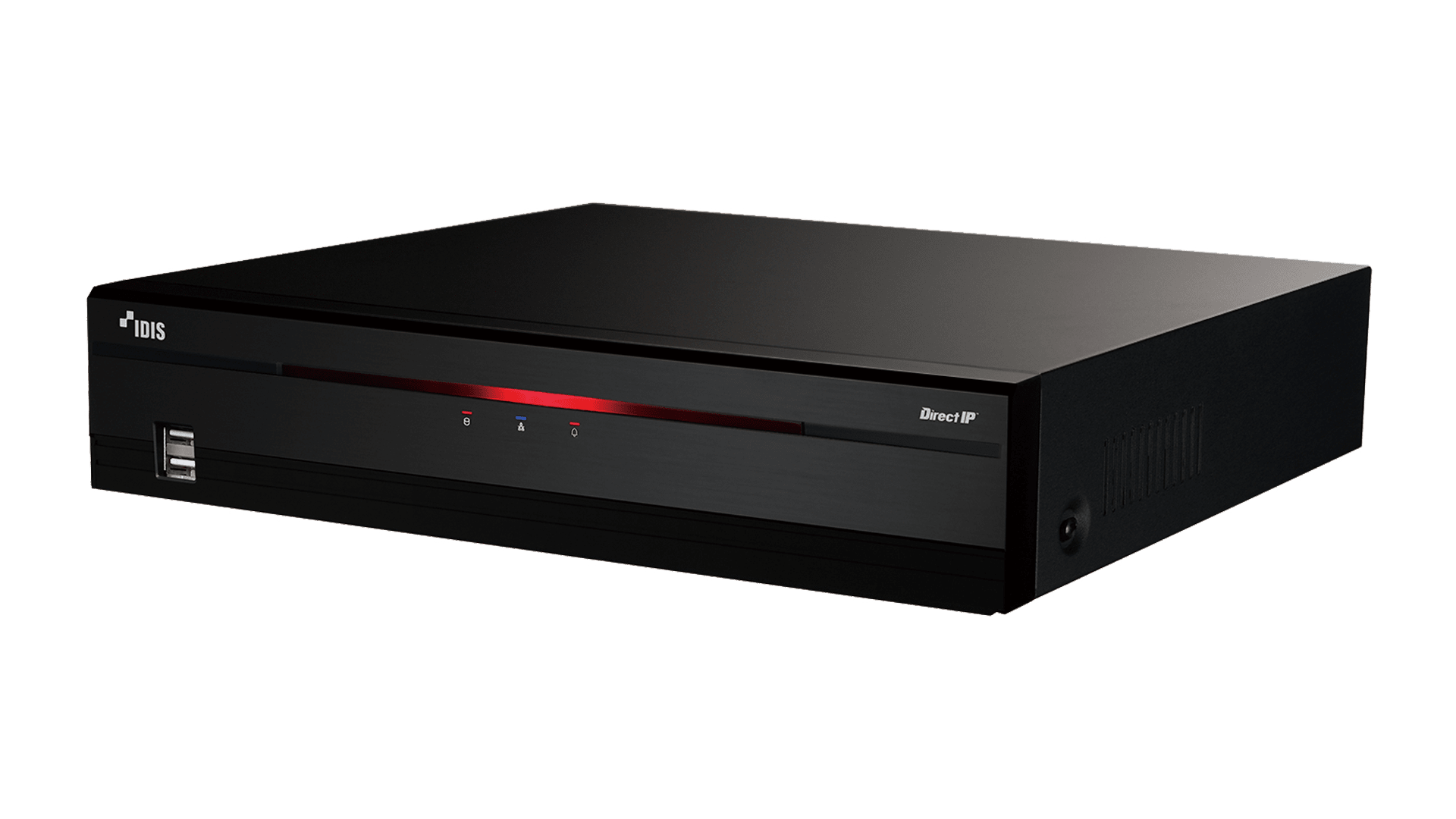

This device is a 16-channel Network Video Recorder engineered for medium-scale surveillance systems with a focus on high performance and AI analytics. It provides broad camera compatibility through support for DirectIP™, ONVIF™, and third-party brands. The unit simplifies installation by integrating eight Power over Ethernet ports compliant with IEEE 802.3at, Class 4, which deliver both data and up to 50.4 watts total power to connected cameras. An additional Gigabit Ethernet port is available for extending the system with an external switch.
A defining capability is its powerful processing of AI metadata from compatible cameras. It natively handles Intelligent Deep Learning Analytics for functions such as object detection, intrusion, loitering, line crossing, and face detection, and supports Business Intelligence rules for monitoring occupancy limits and social distancing. The NVR records video at resolutions up to 12 Megapixels with a maximum throughput of 180 Mbps and delivers a smooth 4K Ultra High Definition live viewing experience with a display speed of up to 480 images per second. It also supports comprehensive playback with 16-channel synchronous and 8-channel 4K playback. Storage is facilitated by two internal SATA hard drive bays and an eSATA port for expansion.
