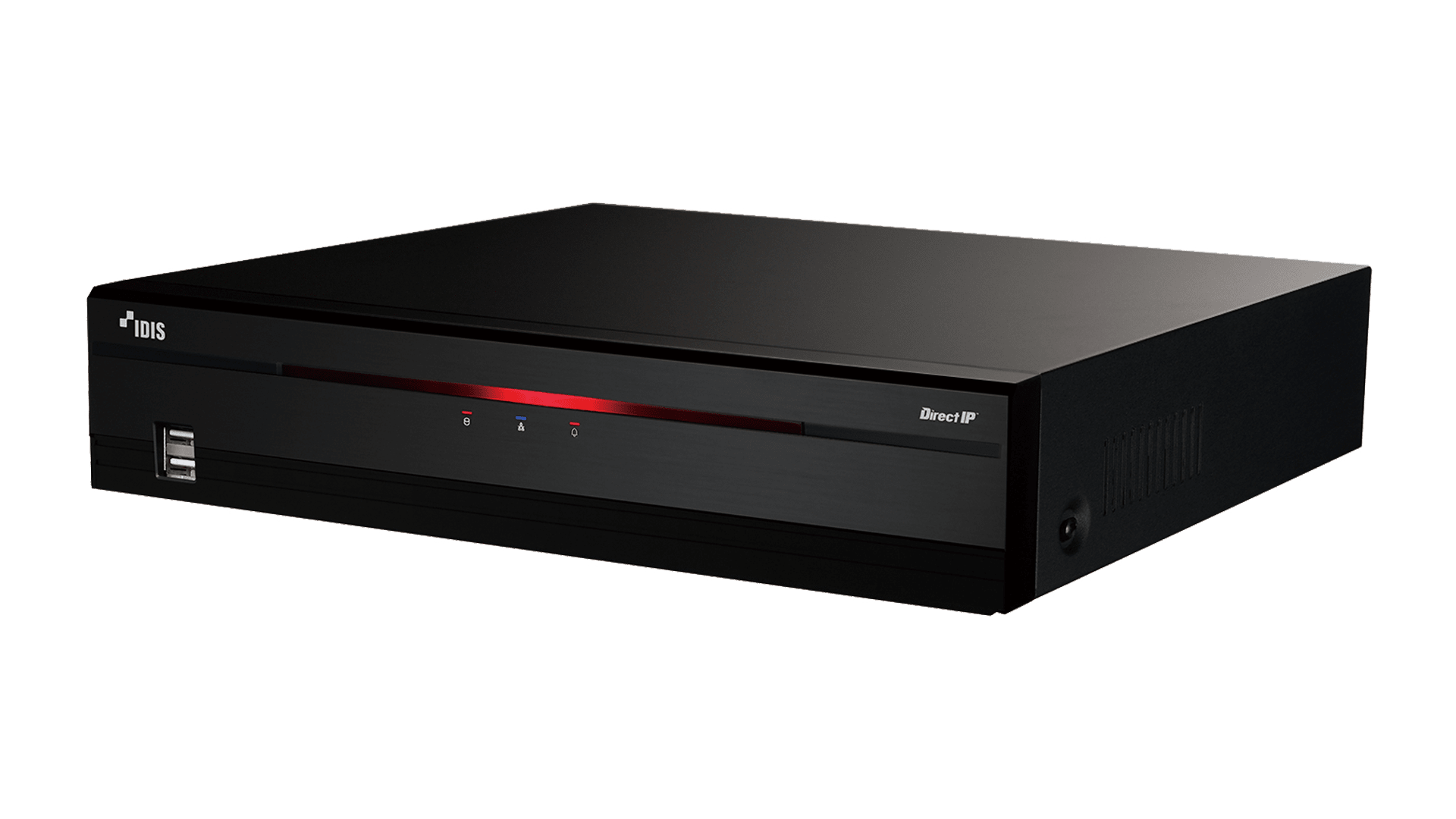

DR-2516P-4TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 320Mbps
- • Up to 480ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 480ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 8 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback 8ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.05A, 50.4W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |
This is a high-performance 16-channel Network Video Recorder designed for medium-scale surveillance deployments. It supports a wide array of IP cameras through protocols like DirectIP™, ONVIF™, and third-party integrations. The unit is equipped with eight integrated Power over Ethernet ports compliant with IEEE 802.3at, Class 4, providing up to 50.4 watts total power to connected cameras, plus an additional Gigabit Ethernet port for connecting more cameras via an external PoE switch.
The feature is its robust processing of Artificial Intelligence metadata, enabling advanced Intelligent Deep Learning Analytics for object detection, intrusion, loitering, line crossing, and face detection, as well as Business Intelligence applications like occupancy monitoring. The NVR can record video at resolutions up to 12 Megapixels with a maximum throughput of 180 Mbps and provides a fluid 4K Ultra High Definition live view at a display speed of up to 480 images per second. It supports 16-channel synchronous playback and 8-channel 4K playback. Storage is handled by two internal SATA hard drive bays and an eSATA port for expansion.
