MCD-4S - Electrical Box Surface-Mount Dome Cover - IDIS
Part number:
Price:

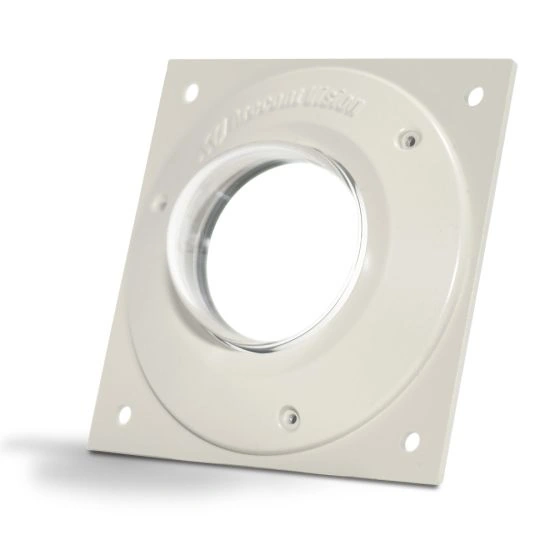

The MCD-4S is a MicroDome series surface-mount dome cover designed for mounting MicroDome series surface-mount IP megapixel cameras inside electrical boxes. It ensures a secure fit and provides heavy-duty protection for cameras operating in challenging environments.
• Easily Install a MicroDome Surface Model Inside an Electrical Box
• Heavy Duty Enclosure Protection for Applications in Harsh Environments
• Die-Cast Aluminum is Resistant to Impact and Salt Damage
| Compatibility | |
|---|---|
| Works with | MicroDome® Series surface mount domes (-S models only)* in conjunction with 3rd party 4-inch square box** 2-1/8 inch deep. |
| Mechanical | |
| Casing | Die-cast aluminum IP66 weather proof standard IK-10 impact-resistant |
| Color | Ivory (Pantone® Cool Gray 1C) |
| Dimensions | 4.13" L (105mm) x 4.13" W (105mm) x 1.5" H (38mm) |
| Weight w/o Camera | 0.18lbs (0.08kg) |
Name
Description
Size
Downloads
File
MCD-4S_Datasheet.pdf
0.8mb
