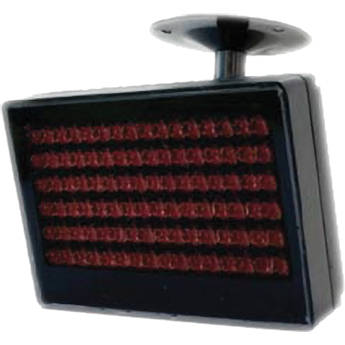

Iluminar IR229-C20-24 Medium-Range IR Illuminator
Features:
- IR illuminator with LED technology
- Distances up to 229’ (70m)
- Various angles (10o, 20o, 30o)
- 850nm or 940nm Wavelengths
- Low power consumption
- Even illumination
- No maintenance required
- 3 year warranty
- IP67 weatherproof rating
- c/w wall mount
- Built-in photocell IR on/off
- 24VAC input
| General | |
| Construction | Alloy housing with high transmittance protective (vandalproof) IR filter |
| Finish | Black polyester powder coat |
| Environment | Indoor or outdoor |
| Operating Temperature | 14o to 120o F (-10o to 50o C) |
| Humidity | Within 90% RH |
| MTBF | 20,000 hours |
| Output Terminal | 30CM L/W |
| Weight | 2.8 lbs (1300g) |
| Dimensions | 5.8” x 3.9” x 1.4” (149(W) x 99(H) x 35(D) mm) |
| Mount | Metal adjustable wall mount |
| Electrical | |
| Input Voltage | 24VAC |
| Input Current | 480mA max. |
| Wavelength | |
| Standard (A) | 850nm (semi-covert) Faint red glow visible on the illuminator only (no visible light) |
| Optional (C) | 940nm (covert) No visible glow from illuminator – ideal for transportation or high security applications |
| Certifications | |
| Meets NEMA Type 4 and IP67 standards |
