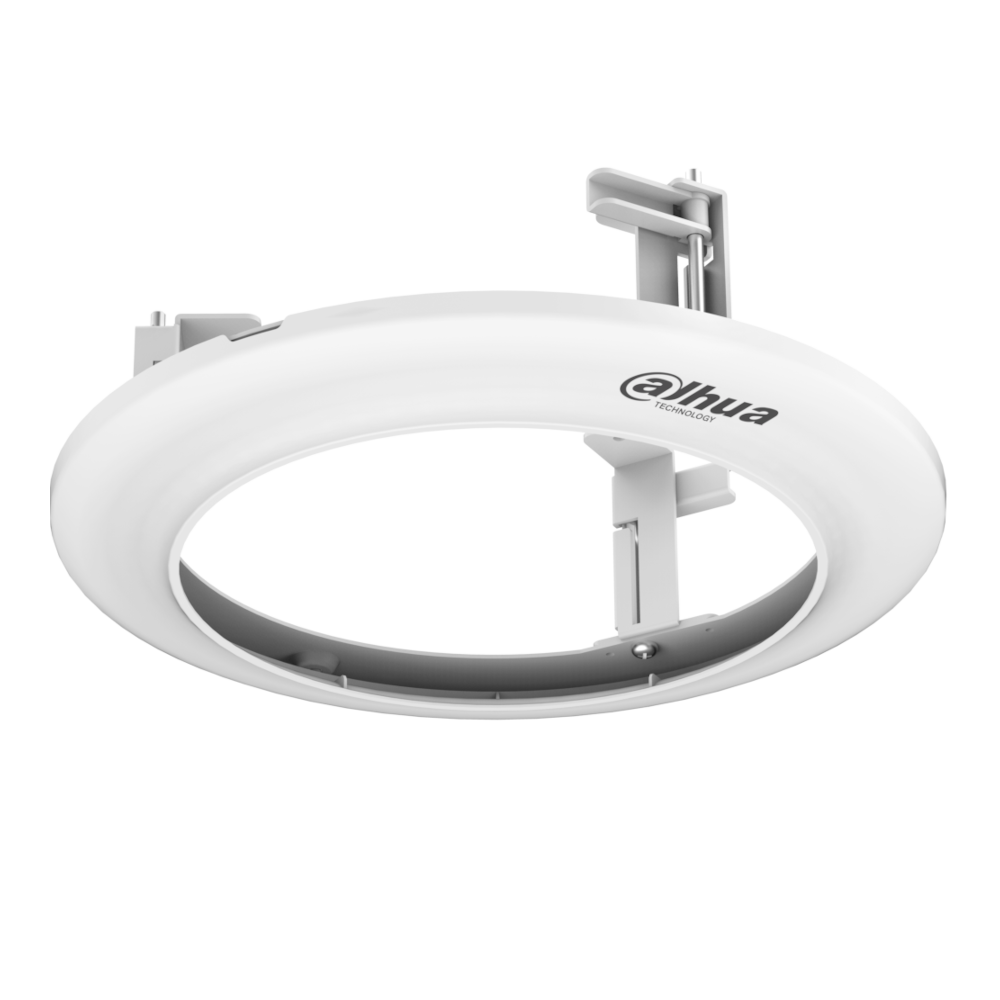

Dahua - DH-PFB5310C - In-ceiling Mount Bracket
Part number:
DH-PFB5310C
Price:
In-ceiling Mount Bracket
Features:
- Material: SECC and PC
- Color: White
- Dimensions: (W x H): 238.0 mm x 78.0 mm (9.37 in. x 3.07 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: < 90% (RH)
- Load Bearing: 3.0 kg (6.61 lb)
- Weight: 0.35 kg (0.77 lb)
- Compatible with 4A425DBNR
| Technical Specification | |
| Construction | |
| Material | SECC, PC |
| Dimensions | 238.0 mm × 78.0 mm (9.37 in. × 3.07 in.) |
| Color | White |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.62 kg (1.37 lb) |
| Load Bearing Weight | 3.0 kg (6.61 lb) |
| Package Dimensions (L × W × H) | 286.0 mm × 286.0 mm × 120.0 mm (11.26 in. × 11.26 in. × 4.72 in.) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | < 90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10% to 90% (RH) |
| Anti-Corrosion Level | Basic Protection |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
