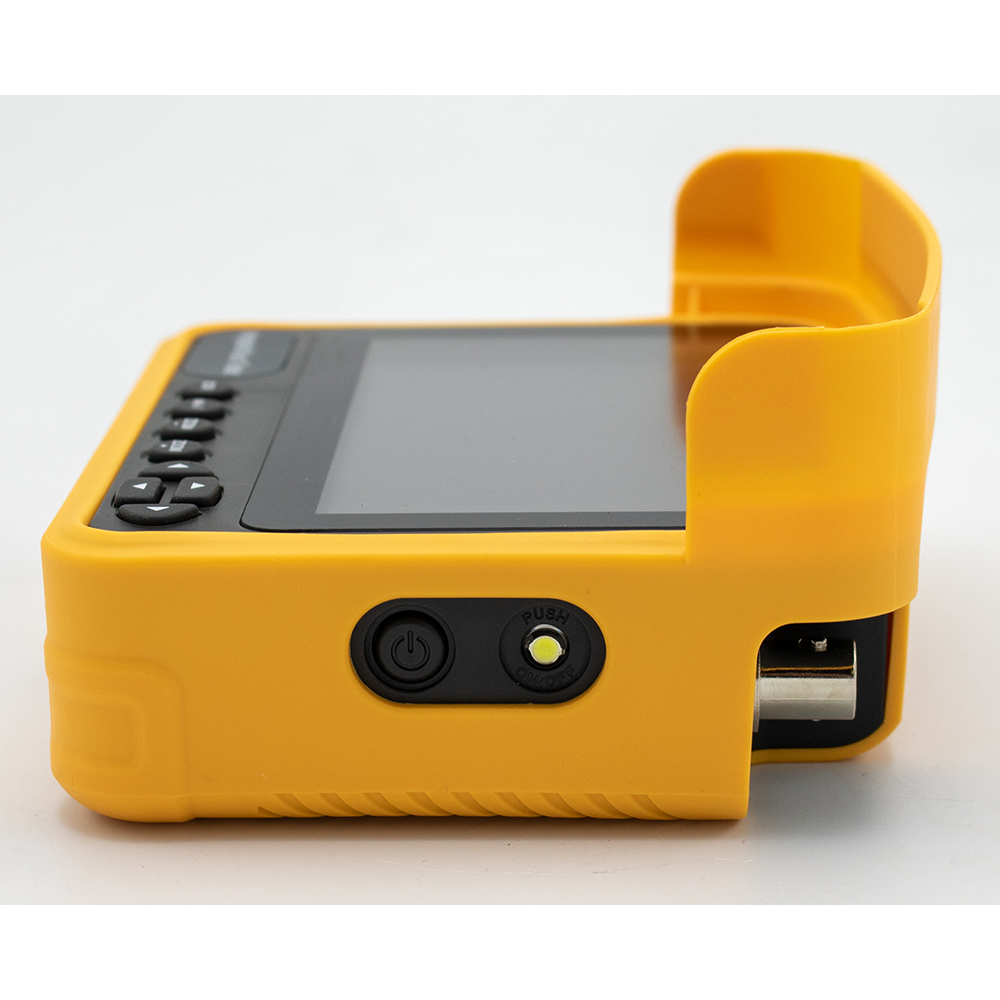

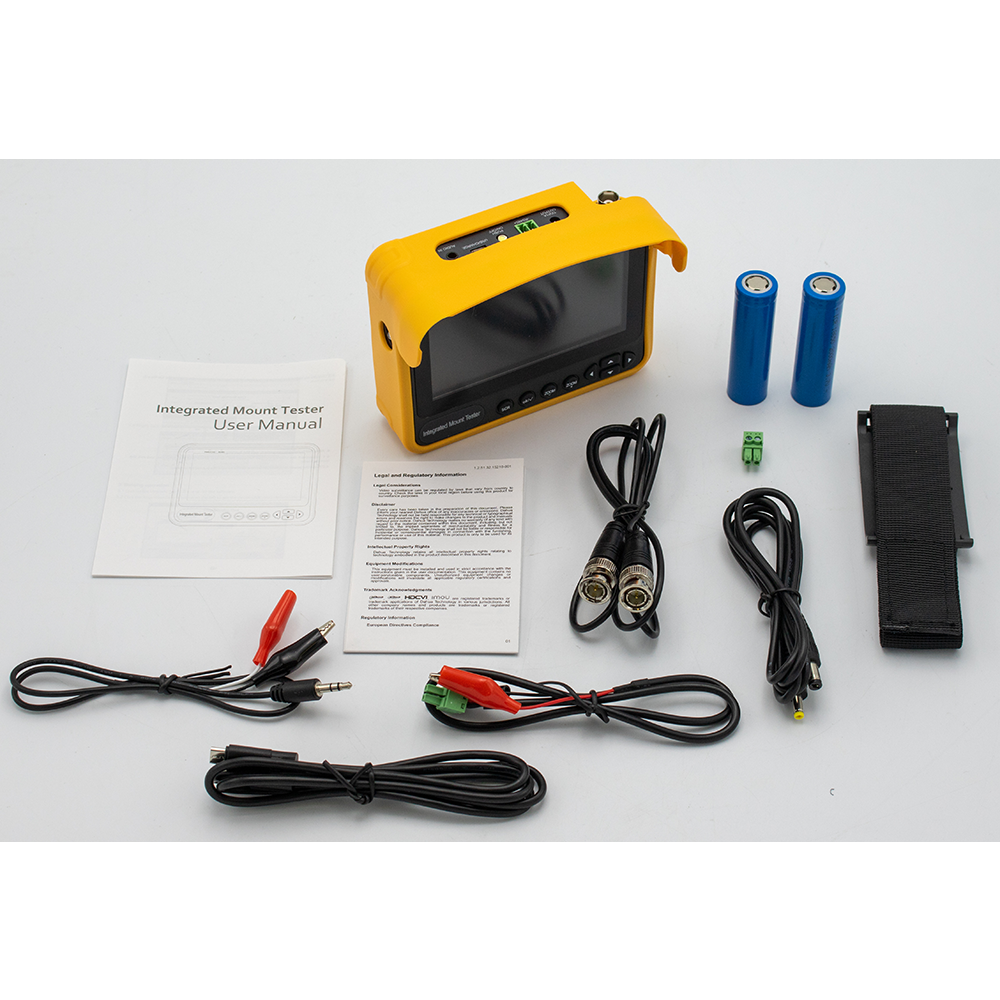

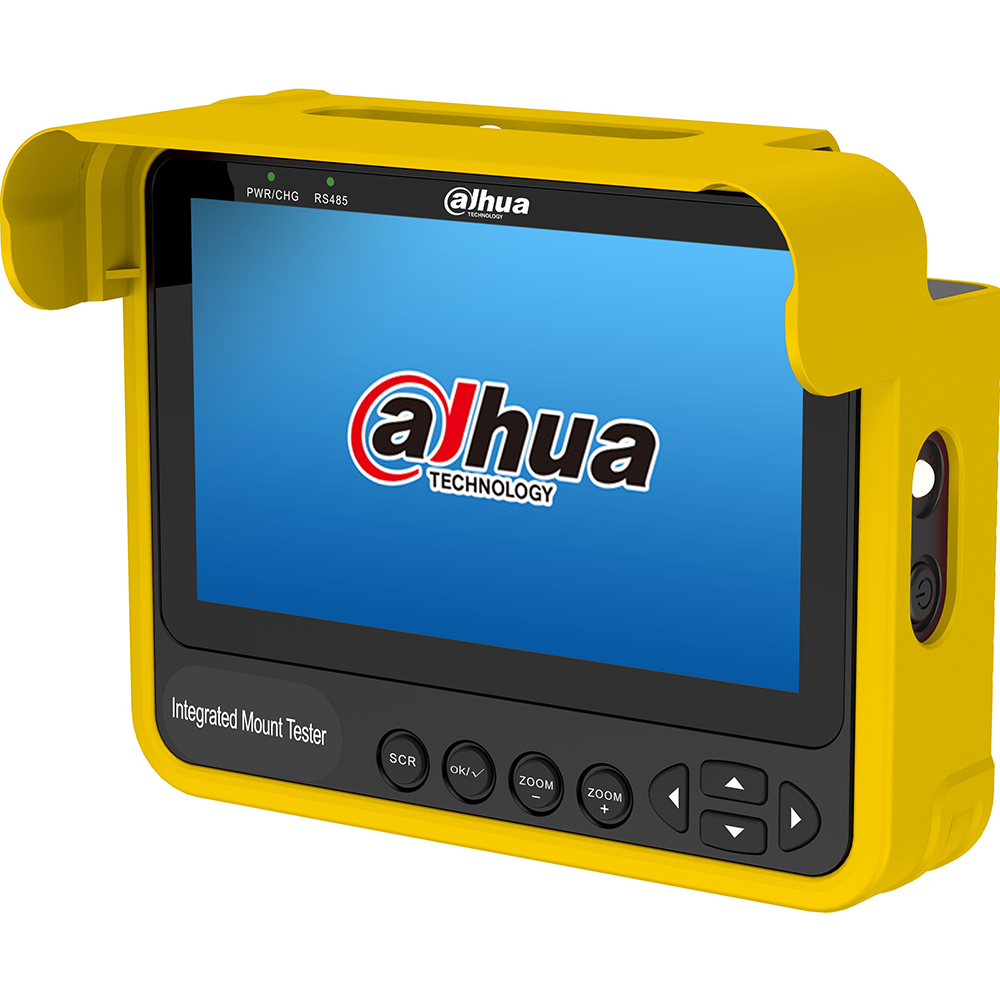

Dahua - DH-PFM904 - Integrated Mount Tester
Dahua - DH-PFM904 - Integrated Mount Tester
Dahua - DH-PFM904 - Integrated Mount Tester
Dahua - DH-PFM904 - Integrated Mount Tester
Dahua - DH-PFM904 - Integrated Mount Tester
Dahua - DH-PFM904 - Integrated Mount Tester Dahua - DH-PFM904 - Integrated Mount Tester Dahua - DH-PFM904 - Integrated Mount Tester Dahua - DH-PFM904 - Integrated Mount Tester

Dahua - DH-PFM904 - Integrated Mount Tester

Part number:
DH-PFM904
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Integrated Mount Tester



Features:

  • Ergonomic, Portable Design
  • One-hand Operation with Removable Wrist Strap
  • 4.3-in. TFT Screen, 480 x 272 Resolution
  • Supports HDCVI, AHD, TVI, and CVBS Formats
  • Audio and RS485 Test Control
  • 12 VDC, 1 A Power Output
  • Micro USB-B Port for Charging and Data I/O
  • Two (2) 18650 Lithium Ion Batteries, Replaceable up to 8 Hours Normal Operation​
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Technical Specifications
System
Operating SystemLinux
Language SupportMulti-language Interface
Operation ModeEight-key Keyboard with Power Button
FunctionsAuto Standby/Shutdown, Keyboard Sound, Local Update
Screen4.3-in. TFT, 480 x 272 Resolution
LED Indicator3 x 35 lm Lights

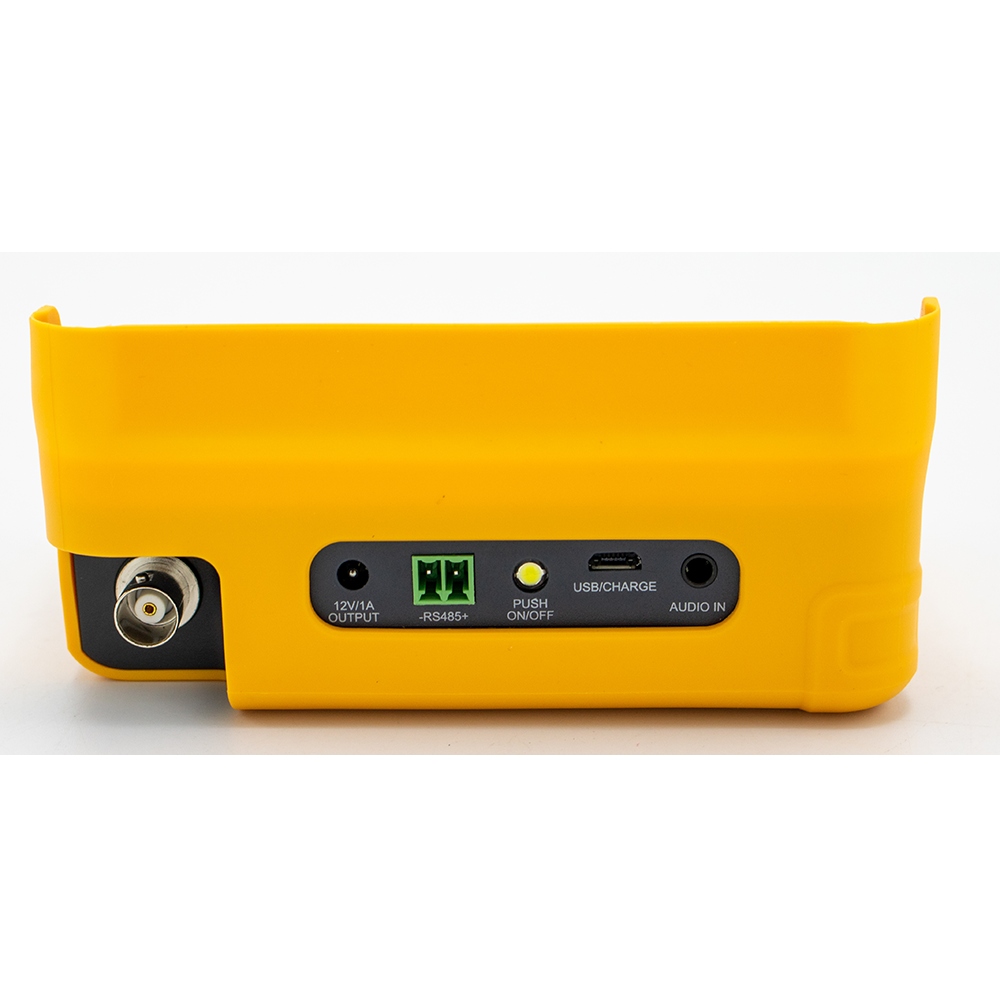

Physical Ports
Audio InputOne (1) Channel, 3.5 mm Jack
Power Supply, Output12 VDC, 1 A Power Output
USBOne (1) Micro-B, for charging tester and data I/O
RS485PortOne (1) Port
ProtocolOver 30 Protocols, including Pelco-P/D, Samsung, Panasonic, Lilin, and Yaan
Baud Rate150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps;
4800 bps; 9600 bps; 19200 bps
Analog Video Test
FormatHDCVI, AHD, TVI, CVBS
Supported Video
Formats		HDCVI2 MP at 30 fps, 4 MP at 30 fps, 5 MP at 20 fps,
6 MP at 20 fps, 8 MP at 15 fps
TVI2 MP at 30 fps, 4 MP at 30 fps, 5 MP at 20 fps;
AHD2 MP at 30 fps, 4 MP at 30 fps
CVBSPAL/NTSC Formats
Function ControlOSD Menu Display PTZ
Video DisplayLive View
Power
ChargerInput: Micro USB; 5 V, 1 A
BatteryTwo (2) 18650 Lithium Ion Batteries, up to 14.8 Wh
Working TimeEight (8) Hours
Power Output12 VDC, 1 A, maximum
Certifications
Electromagnet Compatibility (EMC)47 CFR FCC Part 15 Subpart B
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
Environmental
Working Temperature–10° C to +55° C (14° F to 131° F), 30% to 95% RH
Casing ColorYellow
Dimensions120.0 mm x 100.0 mm x 65.0 mm (4.92 in. x 3.94 in. x 2.56 in.)
Net Weight0.34 kg (0.75 lb)
Gross Weight0.74 kg (1.63 lb)
ESD
Protection		Air Discharge±8 KV
Contact
Discharge		±6 KV
