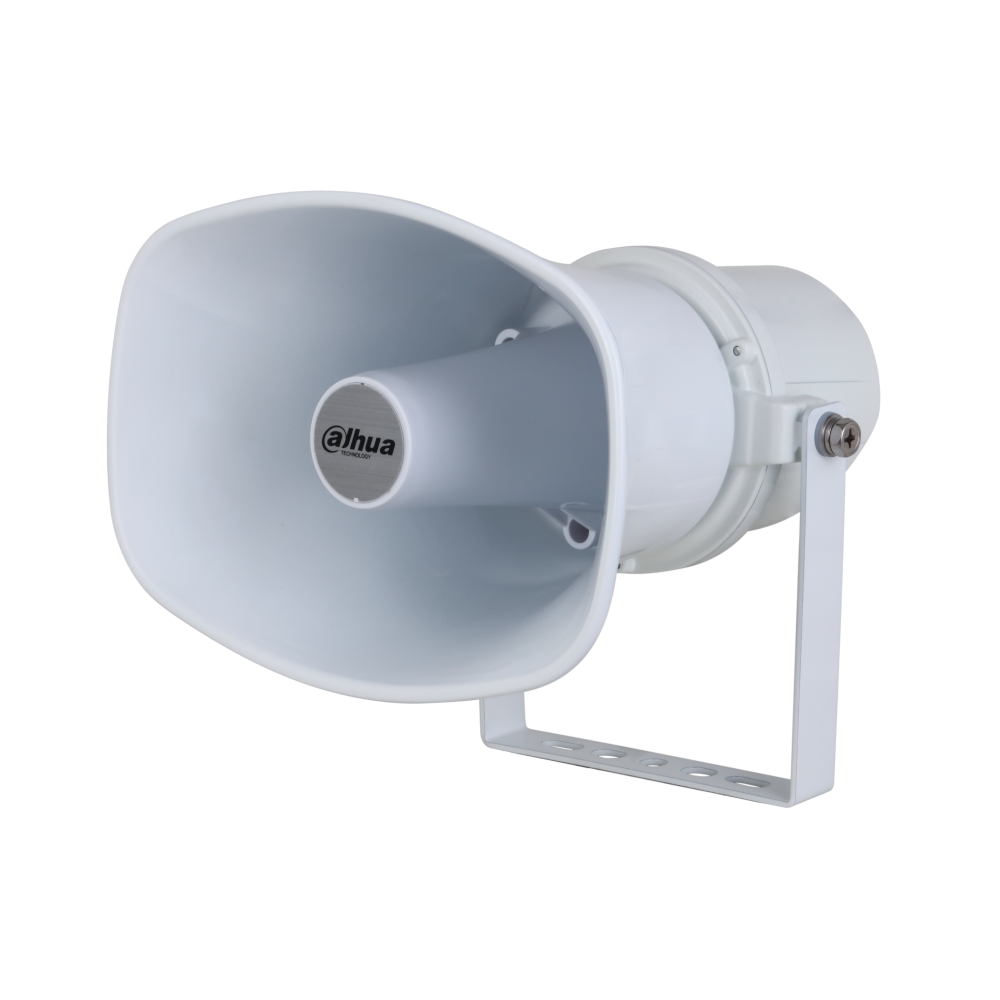

Dahua’s IP speaker is designed to suit a variety of applications. It supports ONVIF protocol , ensuring compatability with 3rd party cameras. It is powered by PoE+ for easy installation and use. The speaker has an built-in microSD slot and an internal storage capacity of 512 MB. The built-in microphone allows for two-way communication. The speaker can be used for outdoor applications thanks to its IP67 ingress protection rating.
Features:
- Maximum Connection Distance 100 m (328 ft)
- Supports ONVIF and SIP protocol
- Internal Storage 512 MB, SD Card Support
- Can be used with auxiliary input, 24V adapter, or PoE switch
- Built-in Microphone
- IP67 Ingres
- Three-year Warranty*
| Technical Specification | |
| Microphone | |
| Type | Built-in Microphone |
| Pickup Distance | ≥ 8m |
| Frequency Response | 50Hz to 12KHz |
| Microphone Input | 15 mV |
| Speaker | |
| Maximum Sound Pressure Level | 120 dB |
| SNR | ≥ 75dB |
| Frequency Response | 250Hz to 16KHz |
| Coverage Pattern | 70° (H) x 100° (V) |
| Speaker Output | 15W |
| Audio Protocol | MP3, G.711a/u.G. 722 |
| Amplifier | |
| Type | Built-in 15W, 8Ω Amplifier |
| Interface | |
| TF Card Interface | Support |
| 24V Auxiliary Input | Support, Can use ordinary network |
| Network | |
| Network Port | RJ45 |
| Network Protocol | TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF |
| Storage | 512 MB Internal Storage, TF Card, MicroSD Card |
| Electrical | |
| Input | PoE+(IEEE 802.3at) / DC24V 1A (Standby) |
| Consumption | 15 W |
| Environmental | |
| Operating Temperature | 40 °C to 60 °C (-40 °F to 140 °F), 60%~95% RH |
| Ingress Protection | IP67 |
| Certifications | |
| Electromagnetic Comptability (EMC) | EN 55032 Class B, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), VCCI Class B, RCM AS/ NZS CISPR 32 Class B, KC KN32 Class B, KC KN35 |
| Safety | IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 |
| Environmental | IEC/EN 60529 IP67, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA 250 Type 4X, MIL-STD810G 509.5 |
| Construction | |
| Product Dimensions (L x W x H) | 225mm x 170mm x 250mm (8.85 in. × 6.69 in. × 9.84 in.) |
| Packaging Dimensions (L x W x H) | 240 mm x 200 mm x 275 mm (9.45 in. × 7.87 in. × 10.83 in.) |
| Net Weight | 1.8 kg (3.97 lb) |
| Gross Weight | 2.5kg (5.51 lb) |
