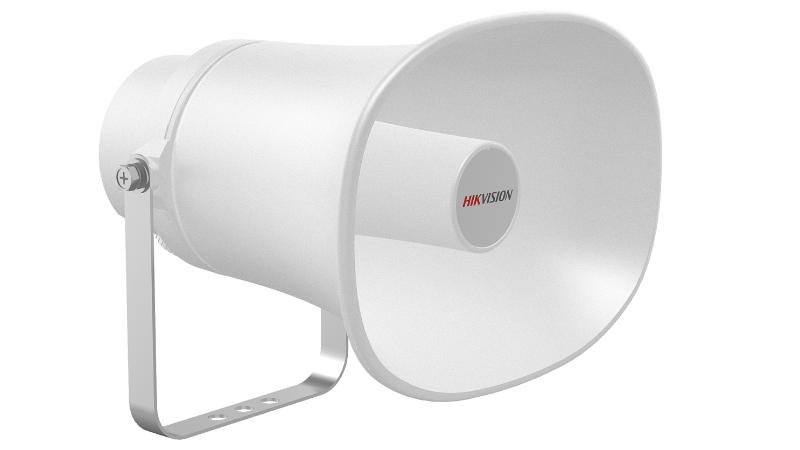

Hikvision - DS-PA0103-B - IP Speaker
Part number:
DS-PA0103-B
Price:
IP speaker
Features:
- Network broadcast: playing audio file or real-time audio stream
- SD card broadcast: playing audio files from SD card
- One-way audio: remote computer can talk to the horn speaker
- On-the spot sound collection: remote computer can collect the real-time sound around the horn speaker
| Specification | |
| Max sound pressure level | 120 db |
| Network Interface | 10/100Base-TX self-adaptive network, RJ45 interface |
| Network Protocol | TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP |
| Audio Protocol | MP3, G.711a/u, G.722 |
| Storage | Micro SD Card, up to 32 GB |
| MIC Input | 0.2 Vrms |
| Speaker Output | 8 Vrms |
| Power Input | PoE (IEEE 802.3af), maximum 13 W |
| Approvals | EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,NEMA 250 Type 4X, CNS 13438 |
| Color | White |
| Weight | Approx. 1.5 kg (3.31 lb.) |
| Material | Casing: aluminum alloyRear cover: stainless steel |
| Dimension | With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17" × 13.33")Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17" × 9.84") |
| Power consumption | < 1 W (without sound), maximum 13 W (producing sound) |
| Protection level | IP67 |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Frequency Response | 300 Hz~12.5 kHz |
| Coverage Pattern | 70° horizontal by 100° vertical |
| Amplifier Description | Built-in 15 W Class-D amplifier |
Name
Description
Size
Downloads
File
Quick Start Guide
0.7mb
