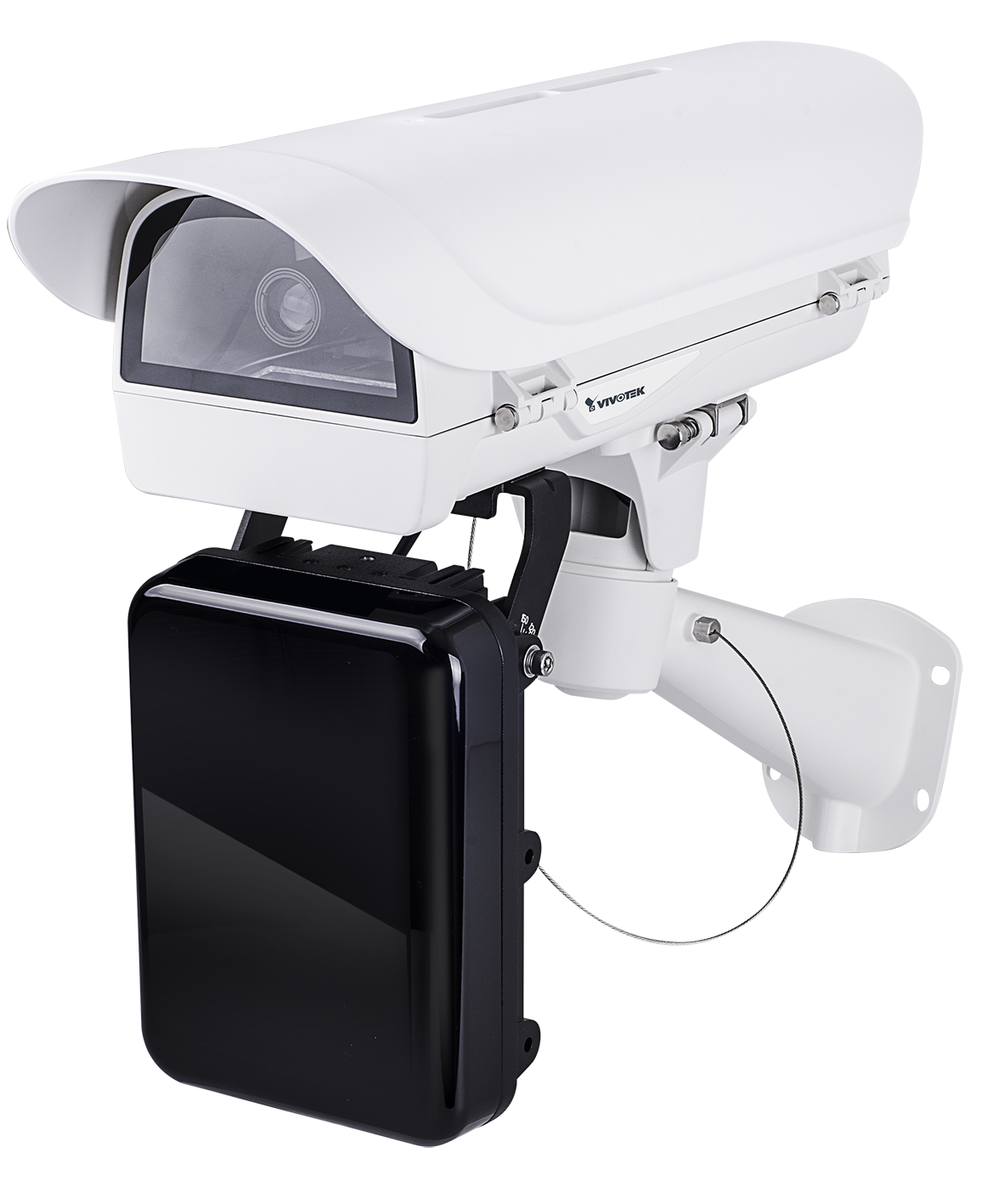

Vivotek - IP9165-LPC Kit (i-CS) - License Plate Capture Solution (110MPH/180km/hr), i-CS
VIVOTEK’s IP9165-LPC Kit represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP9165-LPC box camera. The CaMate IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances. The Headlight filter is implemented to reduce instances of glare from direct headlight contact. The IP9165-LPC Kit delivers clear license plate images for reliable recognition, in both the sunniest days, and in the darkest nights.
Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP9165-LPC Kit can capture clear plate images from the vehicles moving at speeds of up to 110MPH (180km/hr).
Value-added features such as i-CS (intelligent-CS) lens, DIS (Digital Image Stabilization) and remote IR beam angle adjustment ensure that the IP9165-LPC Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanes, the IP9165-LPC Kit is also the most economic solution in LPR applications.
- Capture Vehicle Speed up to 110MPH (180km/hr)
- One Camera Covers Both Scene Overview & LPC View
- Supreme Anti-Glare Capability
- One Camera Covers Dual Lanes
- i-CS Lens and Remote Controllable IR Illuminator for Clear Images and Easy Installation
- Certified by Numerous LPR Software Manufacturers around the World
- Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing
System Information
| Max. Speed |
Highway: 110MPH (180 km/hr) |
| IR Threshold | IR on: 300 Lux IR off: 600 Lux RS485 configurable |
| Shutter Time | Highway: 1/1,600 to 1/10,000 sec. Street: 1/1,000 to 1/10,000 sec. |
| Max. Shutter Time | 1/5 to 1/32,000 sec. |
| IR Illuminators | Highway: 80W, 20° ~ 40° remote control beam angle Street: 48W, 10° ~ 30° remote control beam angle, embedded IR illuminator |
| Capture Range | Up to 35 meters |
| Captured Lanes | Highway: Road-side: 2 Lanes Gantry: 2 Lanes Street: Road-side: 1 Lane Gantry: 2 Lanes *Suggested width per lane: 3.5 ~ 4M |
| Power Input | AC/DC 24V |
| Power Consumption | Highway: Max. 110 W, AC/DC 24V Suggested Power: AC 24V or DC 24V/ 5A Street: Max. 78 W, AC/DC 24V Suggested Power: DC 24V or AC 24V / 3.5A |
| Operating Temperature | Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater |
| Humidity | 90% |
Storage
| HDD Devices I | Internal x1 |
| HDD Max. Capacity | 6TB x1 |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T |
Video & Audio
| Video Output | HDMI x1 |
| Resolution | 3840x2160, 1920x1080, 1280x720 |
| Graphics Decoder | Hardware decoding |
| Camera Position | Change the viewcell position on the Live View screens |
