Infrared illumination is energy which is invisible to the human eye but can be seen by a high quality black/white or true day/night camera (IR cut filter removed). The energy from IR illuminators resides just outside the visible red section of the electromagnetic spectrum, above 700nm and below 1000nm.

IR illumination is an ideal source of illumination for security cameras for the following reasons.

• It is invisible to the human eye but visible to black/white and true day/night cameras, which makes it ideal as a covert/none obtrusive form of illumination.
• Because it is invisible to the human eye it does not create the problem of light pollution.
• It has a longer range than visible light due to the higher wavelength (up to approx. 919’ or 280m)

All ofiluminar’s infrared illuminators are designed to provide superior IR lighting for CCTV systems. They are available with a range of angles and distances to cover different ranges and scenes.

Features:

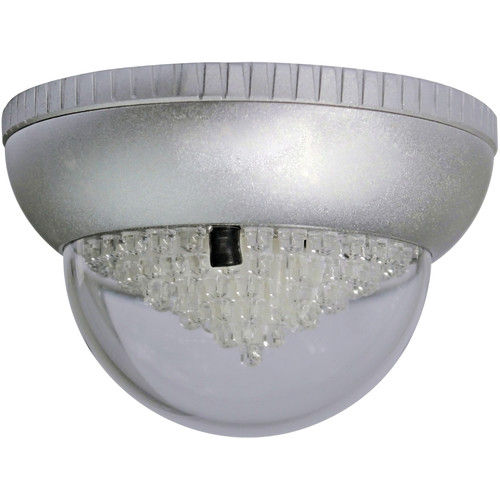

• 180^o Panoramic IR illuminator for
• Day/night CCTV cameraso
• Ideal for 180 panoramic cameras
• Area of illumination 95m²
• 850nm Wavelength
• Low power consumption (7.6W) 1yearwarranty
• Weatherproof rating IP65 (indooronly)
• Built-in photocell IR on/off
• Dual power 12VDC or 24VAC input
