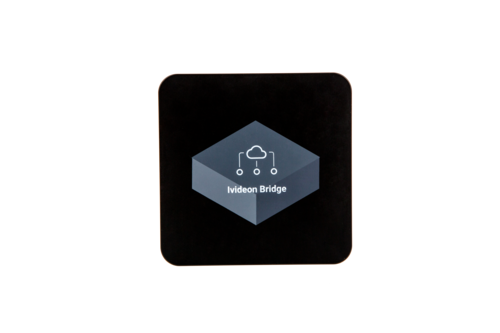

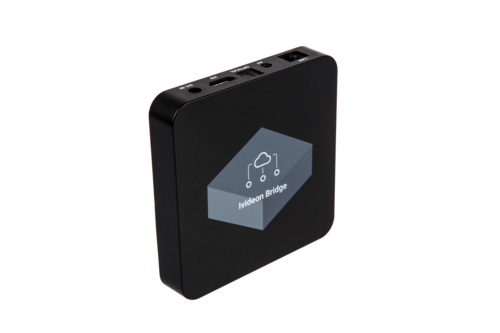

Ivideon - B-1610 - Bridge
Ivideon Bridge B-1610 for connecting any cameras and video recorders to Ivideon Cloud
- 1-year warranty and free 24/7 tech support
- Connects cameras and DVR of any manufacturer using RTSP, ONVIF, DAHUA, or HIKVISION protocols
- Supports up to 16 cameras or DVR channels
- Easy to set up and manage in Ivideon personal account
- Cameras settings configuration via Ivideon Cloud
- Bank standard encryption of transmitted data
- Works with paid tariff plans only
Part number:
B-1610
Price:
- Digital and analogue video recorders, IP cameras Supported protocols: RTSP, ONVIF, Dahua, Hikvision ISAPI
- Maximum number of connected devices: any combination of 16 cameras or video recorder channels with a maximum total bit rate of 32 Mbps
- Video: H.264; resolution, bit rate, and FPS limited by the end device, though not exceeding a total bit rate of 32 Mbps
- Audio: AAC, G.711, G.726
- Power supply: DC 5V/2A (EU/UK plug only)
- Dimensions: 100 × 100 × 15 mm
- Weight: 100 g (260 g with packaging).
|
Hardware |
|
|
SoC |
Amlogic S905W Quad-Core 64-bit ARM Cortex-A53@2GHz |
|
GPU |
Quad-Core Mali-400 |
|
ROM |
16GB EMMC |
|
RAM |
2GB DDR3 |
|
Interfaces |
|
|
LAN |
Ethernet:10/100M, RJ-45 |
|
Wireless |
802.11a/b/g/n |
|
USB |
2 High speed USB 2.0 |
|
HDMI |
HDMI 2.0b |
|
AV |
composite |
|
SPDIF/IEC958 |
optical |
|
Card reader |
SD/SDHC/MMC |
|
Software |
|
|
OS |
Android 7.1 |
|
Applications |
Ivideon Server |
|
Power |
|
|
Power supply |
DC, 5V/2A |
|
Power LED |
Enable |
|
Dimensions |
|
|
Enclosure dimension |
100*100*15mm |
|
Package |
180*110*55mm |
|
Weight |
260g |
|
Equipment |
1 x Ivideon Bridge I |
|
1 x Power supply |
|
|
1 x Ethernet cable |
|
|
1x Quick start user guide |
|
Name
Description
Size
Downloads
File
Datasheet
0.4mb
