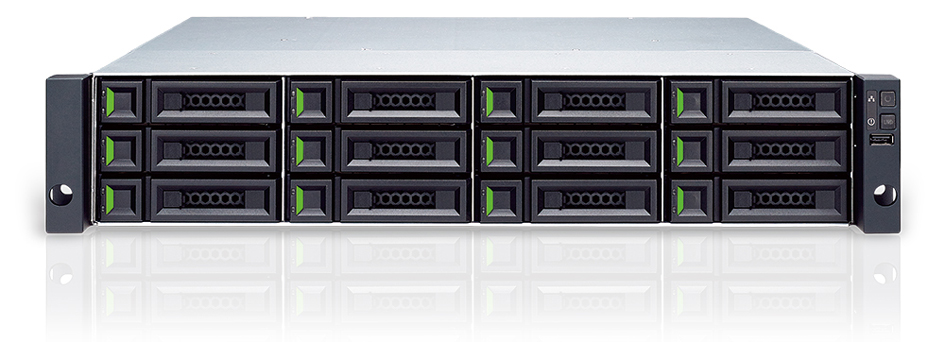

JetStor 812iX iSCSI-SAN storage system offers next-generation storage with blazing fast CPU power, DDR4 system memory, mind blowing performance, high availability, uparalleled scalability, suitable for enterprise level and SMB storage requirements. The JetStor 812iX series was designed to be an ideal solution for enterprise, cloud data centers, and remote branch office (ROBO) deployments.
- iSCSI-SAN storage system with optional Dual-Active(Active/ Active) controller
- High availability design with no single point of failure
- Intel® D1500, dual core processor,up to 64GB RAM per controller
- Latest 12Gb SAS 3.0 technology
- Built-in 10GbE iSCSI
- Over 300K IOPS
- Scale up solution supports over 4.4PB of raw storage capacity
- JetStor SANOS (SAN Operating System) v4.0
- Advanced Storage Management- Thin Provisioning-Snapshot- Cache Mirroring through NTB Bus
- 2 optional flexible I/O host cards 10G SFP+ 8 ports
- Local clone and remote replication for disaster recovery
- Virtualization support for VMware VAAI, Microsoft Hyper-V ODX, and Citrix
- Cache-to-Flash memory protection technology
- Remote Replication
|
RAID Controller |
812iX: Single-upgradable or 812iXD: Dual-Active |
|
Host Connectivity (per controller) |
Built-in 2x 10GBASE-T iSCSI (RJ45) ports Built-in 1x 1GbE management port |
|
Host Card Slot 1 (optional) |
4x 10GbE iSCSI (SFP+) ports OR 4x 1GbE iSCSI (RJ45) ports OR 2 x 10GbE iSCSI (RJ45) ports |
|
Host Card Slot 2 (optional) |
4x 10GbE iSCSI (SFP+) ports (Slot 2 provides 20Gb bandwidth) OR 4x 1GbE iSCSI (RJ45) ports OR 2 x 10GbE iSCSI (RJ45) ports |
|
Processor |
Intel® D1500 dual core processor |
|
Memory (per controller) |
DDR4 ECC 4GB, up to 64GB |
|
Disk Drives |
Native 12Gb SAS backplane 3.5”: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB 2.5” SAS: 1.2TB, 1.8TB, 2.4TB 2.5” SATA SSD: 960GB, 1.9TB, 3.8TB 2.5” SAS SSD: 960GB, 1.9TB, 3.8TB, 7.6TB, 15.3TB |
|
Expansion Connectivity (per controller) |
2 x mini-SAS HD (SFF-8644) ports onboard |
|
Expansion Enclosure |
JX JBOD series 12Gb SAS expansion enclosure / 812JX (LFF 12bay) |
|
Max. # of drives |
272 |
|
Form Factor |
2U 12-bay |
|
Dimensions |
(H x W x D) 19” Rackmount 3.5 x 17 x 19 in |
|
LCM (LCD Module) |
USB LCM (optional) |
|
Memory Protection |
Cache-to-Flash module (optional) Super capacitor module + Flash module : Protect up to 16GB memory |
|
Power Supply |
80 PLUS Platinum, two redundant 770W (1+1) |
|
AC Input: |
100 - 127V 10A, 50-60Hz 200 - 240V 5A, 50-60Hz |
|
DC Output: |
+12V 63.4A +5VSB 2.0A |
|
Fan Module |
2 x hot pluggable/redundant fan modules |
|
Temperature |
Operating temperature : 0 to 40°C Shipping temperature : -10°C to 50°C |
|
Relative Humidity |
Operating: 20% to 80% non-condensing Non-Operating: 10% to 90% |
|
Supported Host OS |
VMware, Citrix, Hyper-V, KVM, Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016; SLES (SUSE Linux Enterprise Server) 10, 11, 12; Red Hat |
|
Warranty |
Please refer to our Warranty Support section |
