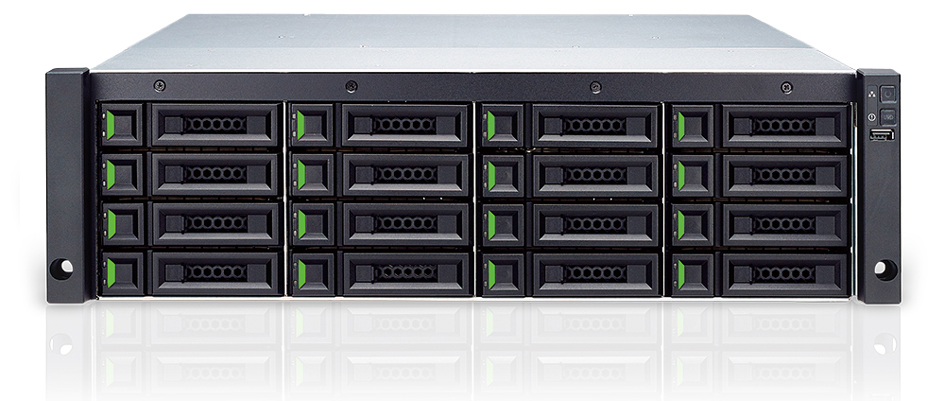

The JetStor 816iX high-performance 16-bay iSCSI SAN storage system features Single-upgradable or Dual-Active (Active/Active) controllers, Intel’s latest D1500 dual core processor, cutting edge 12Gb SAS 3.0 technology, two onboard 10GBase-T ports and the latest SANOS 4.0 (SAN Storage Management Operating System v4.0) by QSAN.

JetStor 816iX iSCSI SAN storage system offers next-generation storage with blazing fast CPU power, DDR4 system memory, mind blowing performance, high availability, unparalleled scalability, suitable for enterprise level and SMB storage requirements. The JetStor 816iX series was designed to be an ideal solution for enterprise, cloud data centers, and remote branch office (ROBO) deployments.

JetStor 816iX features optional Dual-Active controller architecture, both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache hit ratio, ensuring maximum utilization of system resources and maximized throughput. If one controller fails, the other controller can transparently take over all storage services. In addition to storage services, management service can transparently pass to the secondary controller.

The JetStor 816iX series is a highly-available iSCSI SAN storage system. All of the critical components in the 816iX series are hot pluggable and designed with full redundancy. This design allows the system to withstand multiple component failures and achieve 99.999% availability.

• RAID EE level 5EE, 6EE, 50EE, and 60EE
• SSD wear lifetime indicator
• Disk drive firmware batch update
• Volume QoS (Quality of Service)
• Advanced disk awareness
• Lowest per GB Cost on the Market
• Up to 300K IOPS
• Best Price Performance Ratio
• Optional Dual-Active (Active/Active) controllers
• Built-in 10GbE iSCSI
• 5th-gen Intel D1500 dual core processor, up to 64GB RAM per controller
• Auto Tiering
• Thin Provisioning, Snapshot, Cache Mirroring through NTB Bus
• Two optional flexible I/O host cards - 10G SFP+ 8 ports
• Local clone and remote replication for disaster recovery
• Virtualization support for VMware VAAI, Microsoft Hyper-V ODX, KVM, and Citrix
• Cache-to-Flash memory protection technology
• Scale up solution supports over 4.4PB of raw storage capacity
• RAID level 0 ,1 ,0+1 ,3 ,5 ,6 ,10 ,30 ,50, 60, and N-way mirror
• Flexible storage pool ownership
• Thin Provisioning (QThin) with space reclamation
• Global, local, & dedicated hot spares
• Write-through & write-back cache policy
• Online disk roaming
• Support RAID member disks across enclosure boundary
• Background I/O priority setting
• Instant RAID volume availability
• Fast RAID rebuild
• Online storage pool expansion
• Online volume extension / migration
• Auto volume rebuilding
• Instant volume restoration
• Online RAID level migration
• Support video editing mode for enhanced performance
• Support disk drive health check & S.M.A.R.T attributes
• Storage pool parity check and media scan for disk scrubbing
• Local Clone
• High availability design with no single point of failure
• Latest 12Gb SAS 3.0 technology
• SANOS (SAN Operating System) v4.0 by QSAN
