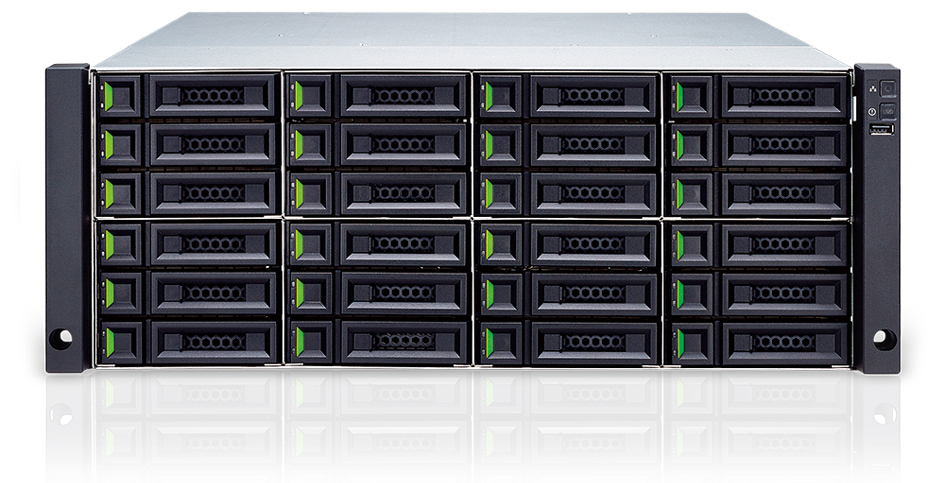

JetStor 824iX iSCSI-SAN storage system offers next-generation storage with blazing fast CPU power, DDR4 system memory, mind blowing performance, high availability, uparalleled scalability, suitable for enterprise level and SMB storage requirements. The JetStor iX series was designed to be an ideal solution for enterprise, cloud data centers, and remote branch office (ROBO) deployments.
- RAID EE level 5EE, 6EE, 50EE, and 60EE
- SSD wear lifetime indicator
- Disk drive firmware batch update
- Volume QoS (Quality of Service)
- Advanced disk awareness
-
Lowest per GB Cost on the Market
-
Up to 300K IOPS
-
Best Price Performance Ratio
-
Optional Dual-Active (Active/Active) controllers
-
Built-in 10GbE iSCSI
-
5th-gen Intel D1500 dual core processor, up to 64GB RAM per controller
- Auto Tiering
- Thin Provisioning, Snapshot, Cache Mirroring through NTB Bus
- Two optional flexible I/O host cards - 10G SFP+ 8 ports
- Local clone and remote replication for disaster recovery
- Virtualization support for VMware VAAI, Microsoft Hyper-V ODX, KVM, and Citrix
- Cache-to-Flash memory protection technology
- Scale up solution supports over 4.4PB of raw storage capacity
- RAID level 0 ,1 ,0+1 ,3 ,5 ,6 ,10 ,30 ,50, 60, and N-way mirror
- Flexible storage pool ownership
- Thin Provisioning (QThin) with space reclamation
- Global, local, & dedicated hot spares
- Write-through & write-back cache policy
- Online disk roaming
- Support RAID member disks across enclosure boundary
- Background I/O priority setting
- Instant RAID volume availability
- Fast RAID rebuild
- Online storage pool expansion
- Online volume extension / migration
- Auto volume rebuilding
- Instant volume restoration
- Online RAID level migration
- Support video editing mode for enhanced performance
- Support disk drive health check & S.M.A.R.T attributes
- Storage pool parity check and media scan for disk scrubbing
- Local Clone
- High availability design with no single point of failure
- Latest 12Gb SAS 3.0 technology
- SANOS (SAN Operating System) v4.0 by QSAN
|
RAID Controller |
824iX: Single-upgradable or 824iXD: Dual-Active |
|
Host Connectivity (per controller) |
Built-in 2x 10GBASE-T iSCSI (RJ45) ports Built-in 1x 1GbE management port |
|
Host Card Slot 1 (optional) |
4x 10GbE iSCSI (SFP+) ports OR 4x 1GbE iSCSI (RJ45) ports OR 2 x 10GbE iSCSI (RJ45) ports |
|
Host Card Slot 2 (optional) |
4x 10GbE iSCSI (SFP+) ports (Slot 2 provides 20Gb bandwidth) OR 4x 1GbE iSCSI (RJ45) ports OR 2 x 10GbE iSCSI (RJ45) ports |
|
Processor |
Intel® D1500 dual core processor |
|
Memory (per controller) |
DDR4 ECC 4GB, up to 64GB |
|
Disk Drives |
Native 12Gb SAS backplane 3.5”: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB 2.5” SAS: 1.2TB, 1.8TB, 2.4TB 2.5” SATA SSD: 960GB, 1.9TB, 3.8TB 2.5” SAS SSD: 960GB, 1.9TB, 3.8TB, 7.6TB, 15.3TB |
|
Expansion Connectivity (per controller) |
2 x mini-SAS HD (SFF-8644) ports onboard |
|
Expansion Enclosure |
JX JBOD series 12Gb SAS expansion enclosure / 824JX (LFF 24bay) |
|
Max. # of drives |
284 |
|
Form Factor |
4U 24-bay |
|
Dimensions |
(H x W x D) 19” Rackmount 6.7 x 17 x 19 in |
|
LCM (LCD Module) |
USB LCM (optional) |
|
Memory Protection |
Cache-to-Flash module (optional) Super capacitor module + Flash module : Protect up to 16GB memory |
|
Power Supply |
80 PLUS Platinum, two redundant 770W (1+1) |
|
AC Input: |
100 - 127V 10A, 50-60Hz 200 - 240V 5A, 50-60Hz |
|
DC Output: |
+12V 63.4A +5VSB 2.0A |
|
Fan Module |
2 x hot pluggable/redundant fan modules |
|
Temperature |
Operating temperature : 0 to 40°C Shipping temperature : -10°C to 50°C |
|
Relative Humidity |
Operating: 20% to 80% non-condensing Non-Operating: 10% to 90% |
|
Supported Host OS |
VMware, Citrix, Hyper-V, KVM, Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016; SLES (SUSE Linux Enterprise Server) 10, 11, 12; Red Hat |
|
Warranty |
Please refer to our Warranty Support section |
