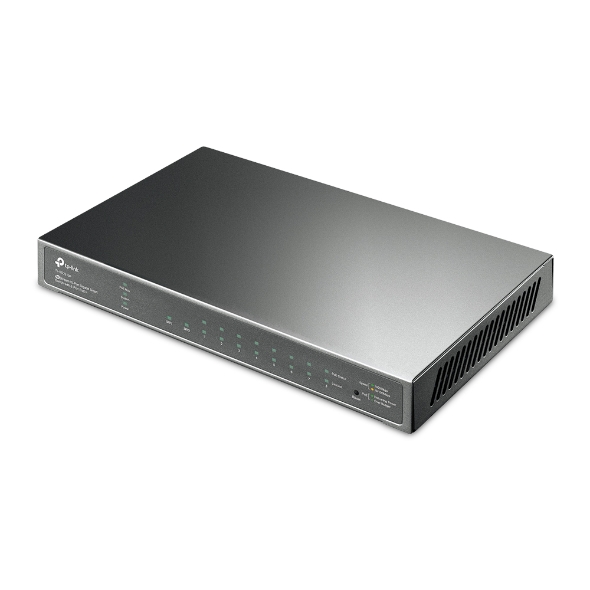

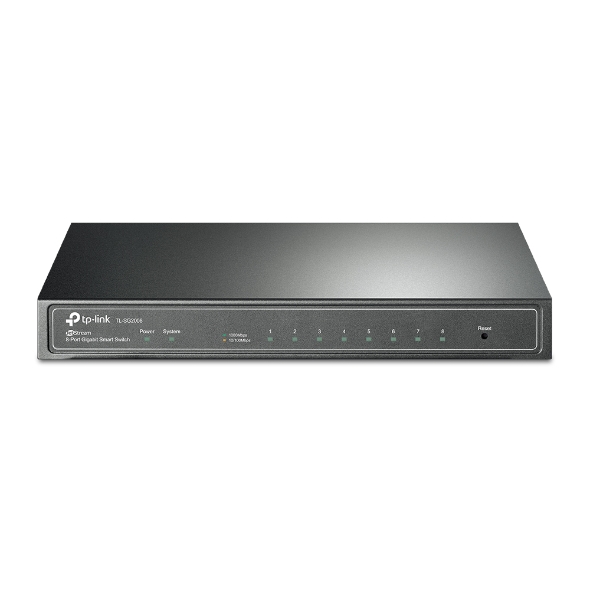

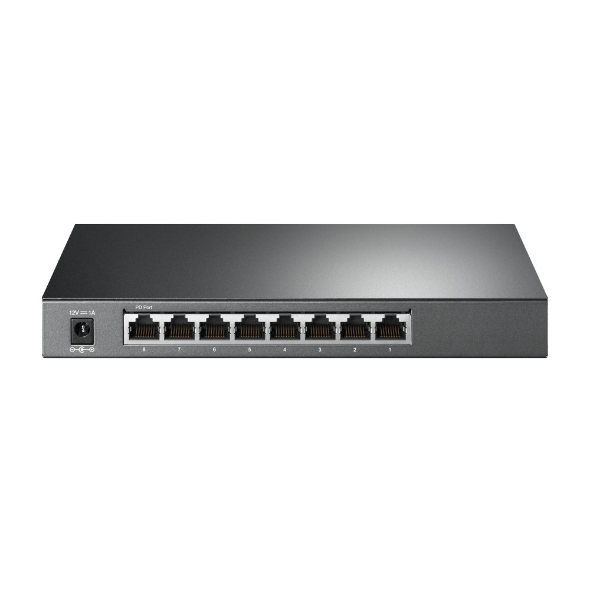

TP-Link - TL-SG2008 - JETSTREAM 8-PORT GIGABIT SMART PERP SWITCH
Part number:
TL-SG2008
Price:
JetStream 8-Port Gigabit Smart Switch
Features:
- Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
| Technical Specification | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
| Fan Quantity | Fanless |
| Power Supply | • 12 VDC/1 A External Adapter or |
| • Obtain Power from PoE Source | |
| Power Consumption | 6.4 W (220 V/50 Hz) |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| PERFORMANCE | |
| Bandwidth/Backplane | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority |
| • 8 priority queues | |
| • Priority Schedule Mode | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| • Queue Weight Config | |
| • Bandwidth Control | |
| - Port/Flow based Rating Limit | |
| • Smoother Performance | |
| • Storm Control | |
| - Multiple Control Modes(kbps/ratio) | |
| - Broadcast/Multicast/Unknown-Unicast Control | |
| L2 and L2+ Features | • 16 IP Interfaces |
| - Support IPv4/IPv6 Interface | |
| • Static Routing | |
| - 32 IPv4/IPv6 Static Routes | |
| • DHCP Server | |
| • DHCP Relay | |
| - DHCP Interface Relay | |
| - DHCP VLAN Relay | |
| • DHCP L2 Relay | |
| • Static ARP | |
| • Proxy ARP | |
| • Gratuitous ARP | |
| • Link Aggregation | |
| - Static link aggregation | |
| - 802.3ad LACP | |
| - Up to 8 aggregation groups and up to 8 ports | |
| per group | |
| • Spanning Tree Protocol | |
| - 802.1D STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: TC Protect, BPDU Filter/Protect, | |
| Root Protect | |
| • Loopback Detection | |
| • Flow Control | |
| - 802.3x Flow Control | |
| • Mirroring | |
| - Port Mirroring | |
| - CPU Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Flow-Based | |
| - Ingress/Egress/Both | |
| • Device Link Detect Protocol (DLDP) | |
| • 802.1ab LLDP/ LLDP-MED | |
| VLAN | • VLAN Group |
| - Max. 4K VLAN Groups | |
| • 802.1Q tag VLAN | |
| • MAC VLAN: 12 Entries | |
| • Protocol VLAN | |
| • GVRP | |
| • Voice VLAN | |
| Access Control List | • Support up to 230 entries |
| • Time-Range | |
| - Time Slice | |
| - Week Time-Range | |
| - Absolute Time-Range | |
| - Holiday | |
| • Time-based ACL | |
| • MAC ACL | |
| - Source MAC | |
| - Destination MAC | |
| - VLAN ID | |
| - User Priority | |
| - Ether Type | |
| • IP ACL | |
| - Source IP | |
| - Destination IP | |
| - IP Protocol | |
| - TCP Flag | |
| - TCP/UDP Source Port | |
| - TCP/UDP Destination Port | |
| - DSCP/IP TOS | |
| • IPv6 ACL | |
| • Combined ACL | |
| • Rule Operation | |
| - Permit/Deny | |
| • Policy Action | |
| - Mirror | |
| - Rate Limit | |
| - Redirect | |
| - QoS Remark | |
| • ACL Rules Binding | |
| - Port Binding | |
| - VLAN Binding | |
| • Actions for flows | |
| - Mirror (to supported interface) | |
| - Redirect (to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| Security | • AAA |
| • 802.1X | |
| - Port based authentication | |
| - MAC (Host) based authentication | |
| - Authentication Method includes PAP/EAP-MD5 | |
| - MAB | |
| - Guest VLAN | |
| - Support Radius authentication and | |
| accountability | |
| • IP/IPv6-MAC Binding | |
| - 512 Binding Entries | |
| - DHCP Snooping | |
| - DHCPv6 Snooping | |
| - ARP Inspection | |
| - ND Detection | |
| • IP Source Guard | |
| - 253 Entries | |
| - Source IP+Source MAC | |
| • IPv6 Source Guard | |
| - 183 Entries | |
| - Source IPv6 Address+Source MAC | |
| • DoS Defend | |
| • Static/Dynamic/Permanent Port Security | |
| - Up to 64 MAC addresses per port | |
| • Broadcast/Multicast/Unicast Storm Control | |
| - kbps/ratio control mode | |
| • Port Isolation | |
| • Secure web management through HTTPS with | |
| SSLv3/TLS 1.2 | |
| • Secure Command Line Interface (CLI) | |
| management with SSHv1/SSHv2 | |
| • IP/Port/MAC based access control | |
| Management | • Web-based GUI |
| • Command Line Interface (CLI) through telnet | |
| • SNMPv1/v2c/v3 | |
| • SNMP Trap/Inform | |
| • RMON (1,2,3,9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • EEE | |
| • SNTP | |
| • System Log | |
| Advanced Features | • Automatic Device Discovery |
| • Batch Configuration | |
| • Batch Firmware Upgrading | |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| MANAGEMENT | |
| Omada App | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) |
| • Omada Hardware Controller OC300 | |
| • Omada Hardware Controller OC200 | |
| • Omada Software Controller | |
| Cloud Access | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2) |
| Management Features | • Web-based GUI |
| • Command Line Interface (CLI) through telnet | |
| • SNMPv1/v2c/v3 | |
| • SNMP Trap/Inform | |
| • RMON (1,2,3,9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • EEE | |
| • SNTP | |
| • System Log | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG2008 |
| • Power Adapter | |
| • Installation Guide | |
| • Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉); |
| • Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| • Operating Humidity: 10%~90% non-condensing | |
| • Storage Humidity: 5%~90% non-condensing | |
