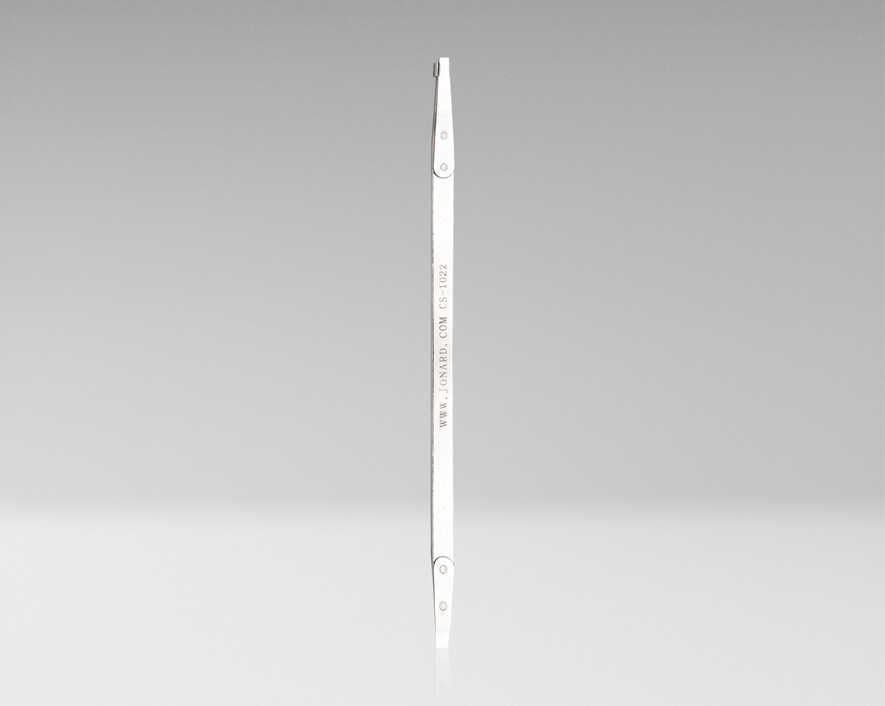

Jonard - CS-1022 - Clip Setter
Part number:
CS-1022
Price:

Designed for inserting or removing E and C clips, this clip setter is perfect for holding E and C clips in position while inserting or grabbing them for removal. This clip setter features the following:



Features:

  • Used on E and C clips 0.156" - 3.00" inside diameter, and thicknesses 0.025" - 0.093"

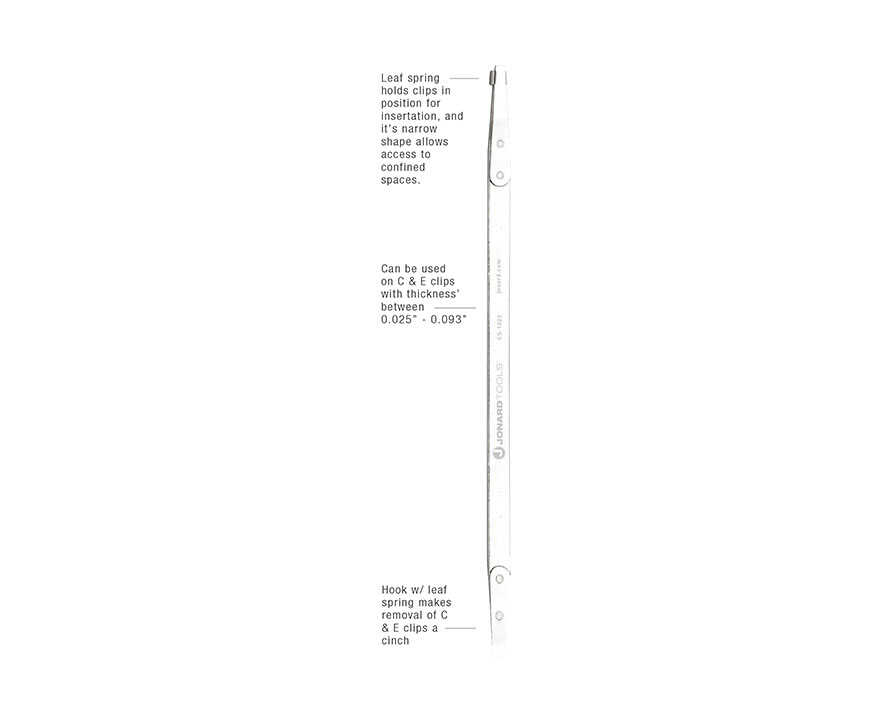

  • Hook and leaf spring on one end of the tool removes the clips with ease
  • Leaf spring on other end of the tool holds clips in position while inserting
  • Thin narrow body allows access to confined spaces
SPECIFICATIONS-
CLIP DIAMETER0.156” - 3.00” (3.96 mm - 76.2 mm)
CLIP THICKNESS0.025” - 0.093” (0.635 mm - 2.36 mm)
THICKNESS1/16” (1.59 mm)
WIDTH0.275” (6.99 mm)
LENGTH6 3/4” (17.1 cm)
WEIGHT0.033 lb (15 g)
