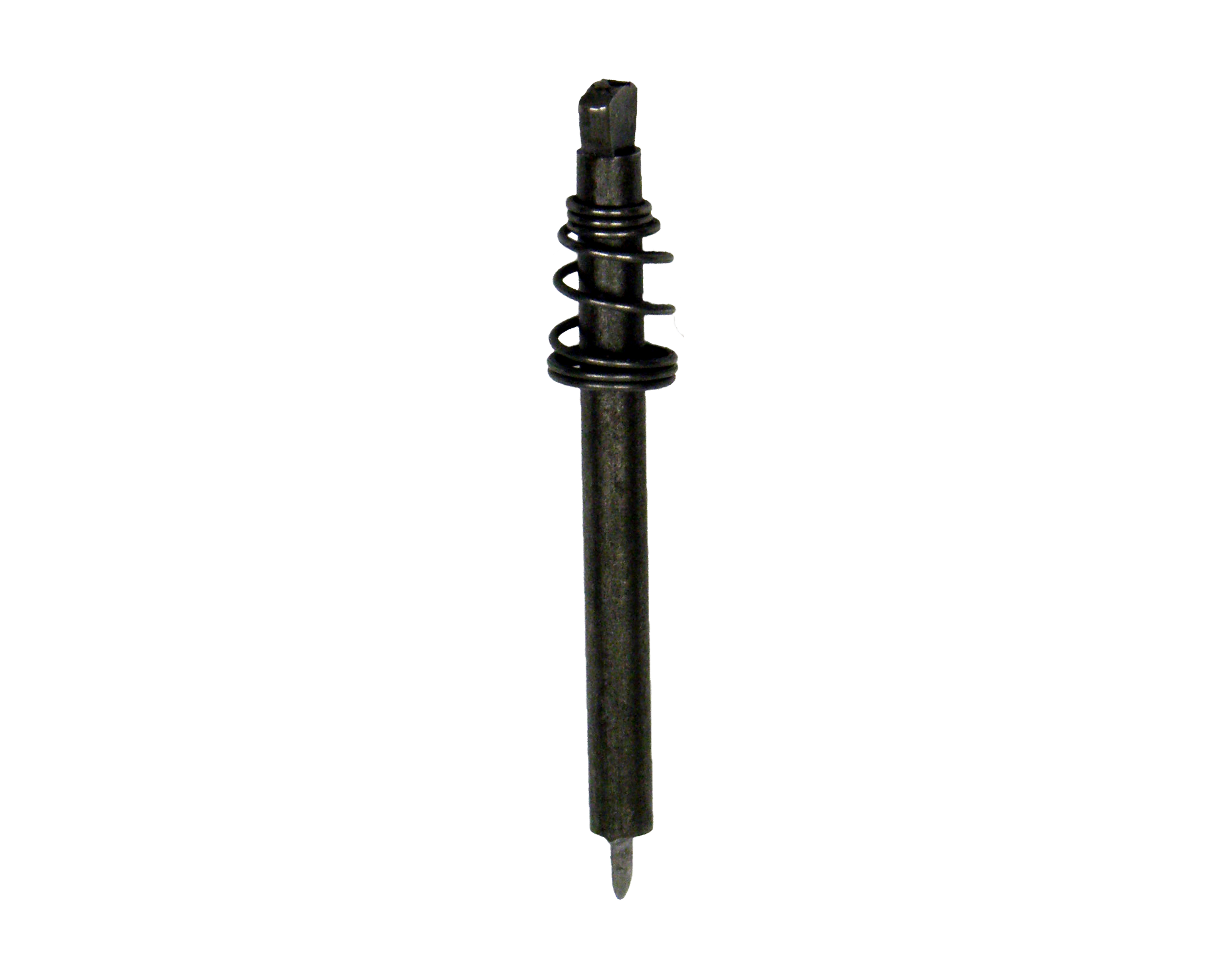

Jonard - CST-7915 - Replacement Blade for CST-1900 and CST-4000
Part number:
CST-7915
Price:

This product is the replacement blade for our Round Cable Strip and Ring Tools (CST-1900 and CST-4000). This replacement blade features the following:



Features:

  • Compatible with both CST-1900 and CST-4000 as it can slit cables 3/16" to 1 1/8" (4.5 mm to 29 mm) in diameter when used with the CST-1900 and cables 3/4" to 1 5/8" (19 mm to 40 mm) in diameter when used with the CST-4000
  • Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more
  • Spring-loaded design can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes
  • Blade depth 0 mm-3 mm
  • Made of high carbon steel for high durability and long life
Specifications
Blade Length0.157” (4 mm)
Blade Depth0 mm-3 mm
Length2(5.08cm)
Weight0.01 lb (4.086 g)
UPC #811490011984
