Jonard - FLS-50S - Optical Light Source with SC/ST/FC/FC-LC Adapters for PC/UPC Connectors
Part number:
Price:
- • Highly stable output power and wavelengths.

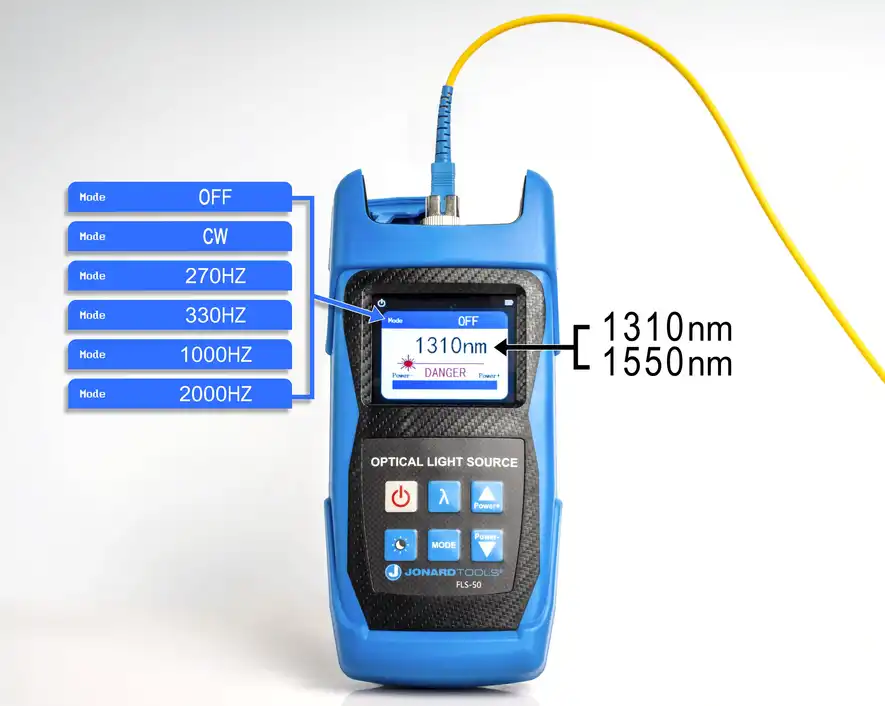

- • Four modulation outputs at wavelengths of 1310 nm and 1550 nm
- • Intelligent backlight control reduces power consumption.
- • The auto-off function can be turned on or off.
- • Automatic wavelength detection function
| Wavelength (nm) | 1310/1550 ±20 |
| Spectral Width (nm) | ≤5 |
| Typical Output (dBm) | -7 |
| Stability (dB, 15 min) | ≤0.05 |
| Typical Output Power Adjustable Range (dB) | -5 ~ -12 |
| Modulation Frequency (Hz) | CW, 270, 330, 1K, 2K |
| Interface Type | FC/SC/ST/FC-LC (UPC) |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V* 3 AA alkaline batteries |
| Auto-off (min) | 10 |
| Continuous Working Hours (hr) | ≥25 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 0.64 lb (290.56 g) |
Name
Description
Size
Downloads
File
Data Sheet - Optical Light Source with SC_ST_FC_FC-LC Adapters for PC_UPC Connectors - FLS-50.pdf
0.6mb
File
Jonard Tools FLS-50 Instruction Manual.pdf
0.8mb
File
Light Source Setup Quick Reference Card - Outlines.pdf
0.9mb
File
Power Meter Calibration Steps - Outlines.pdf
0.9mb

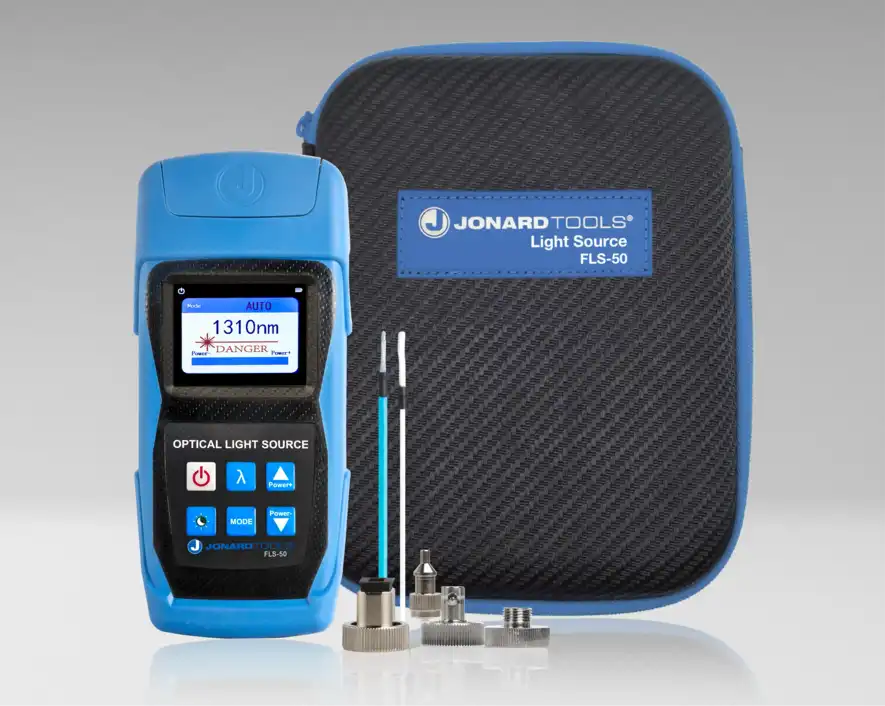

Includes:
• Fibre optic light source
• Instruction manual
• Three AA batteries (required for operation)
• Two cleaning swabs
• Protective carrying case
• FC/UPC adapter
• SC/UPC adapter
• ST/UPC adapter
• FC-LC/UPC adapter (single mode only)
