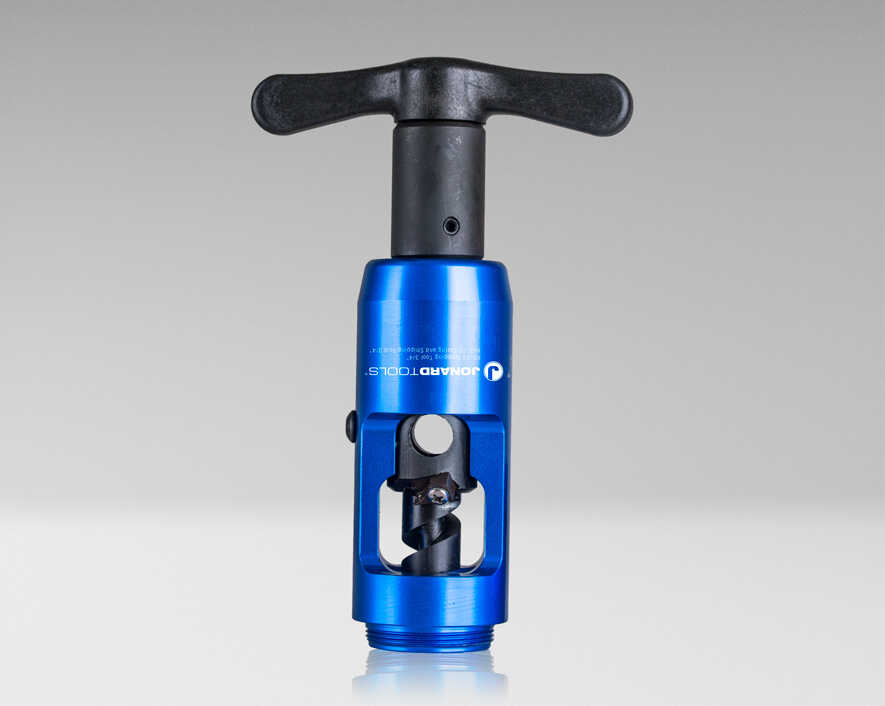

Jonard - HC-75 - Hardline Coring Tool .750"
Part number:
HC-75
Price:

The HC-75 hardline coring tool is designed to core 3/4" diameter T10750 Times Fiber T10 COAX cable, Commscope P3, and other similar .750" cables. This coring tool features the following:



Features:

  • Heavy duty aluminum body with coring bits and blades made of heat treated high carbon steel for long life and durability
  • T handle is a ratcheting handle for increased comfort and faster coring
  • T handle can be removed, allowing the user to attach a drill to make coring even easier
  • Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
  • Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
  • Bevels the outer conductor and chamfers the center conductor
  • Adjustable to expose the center conductor to preset lengths of 13/18", 7/8", 15/18", or 1”
  • Includes hex keys for replacing stripping blades and removing the T handle
Specifications
MaterialAluminum
Cable Size3/4" (.750" or 19.05 mm)
Dimensions6.5 in x 4.25 in x 2 in (16.51 cm x 10.8 cm x 5.08 cm)
Weight1.29 lb (585.66 g)
UPC #811490018891
