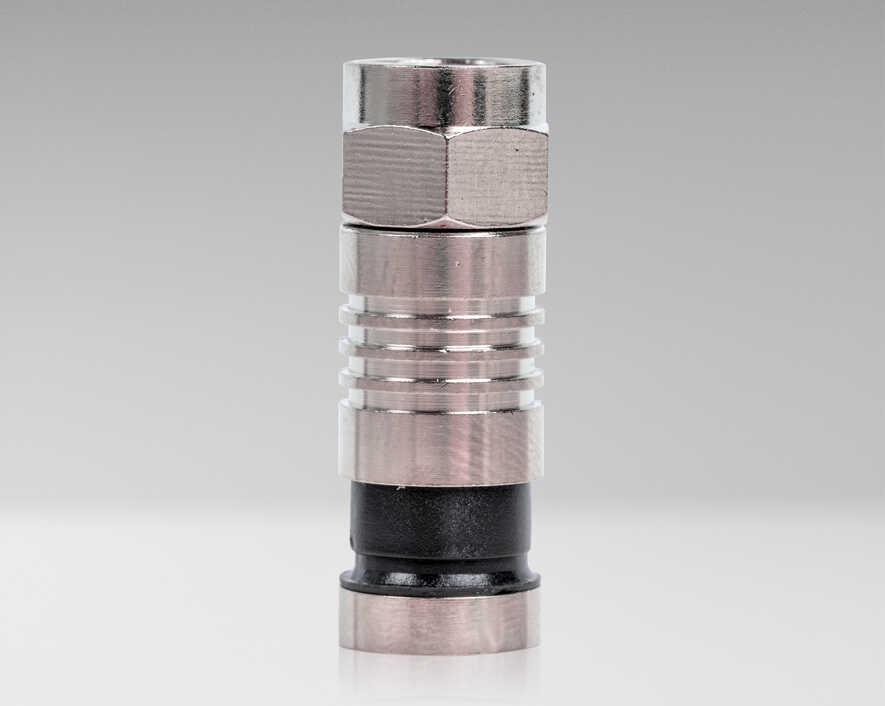

Jonard - RG6-10 - RG6 Connectors (Pack of 10)
Part number:
RG6-10
Price:

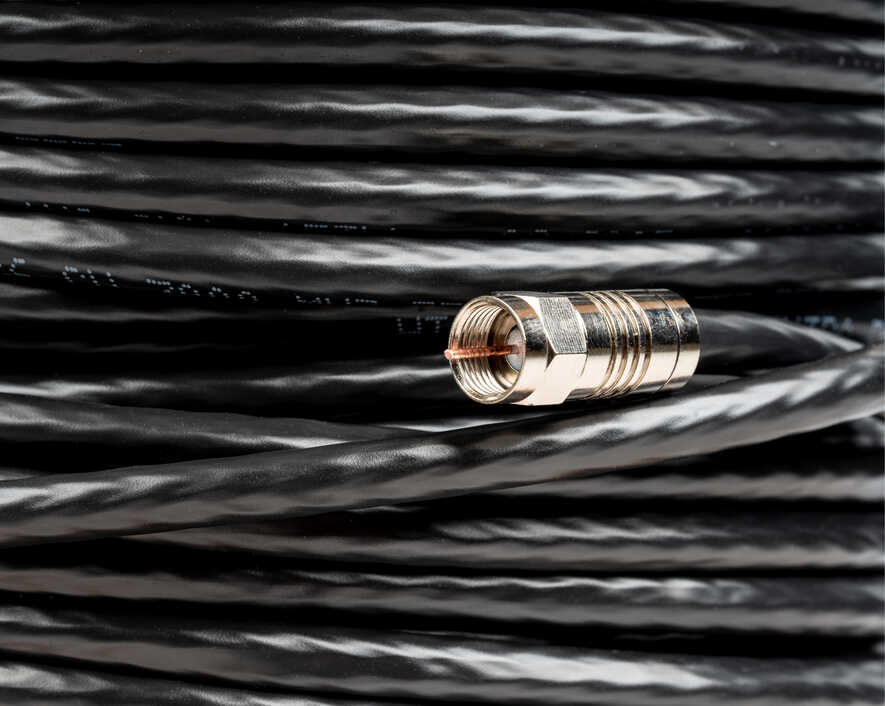

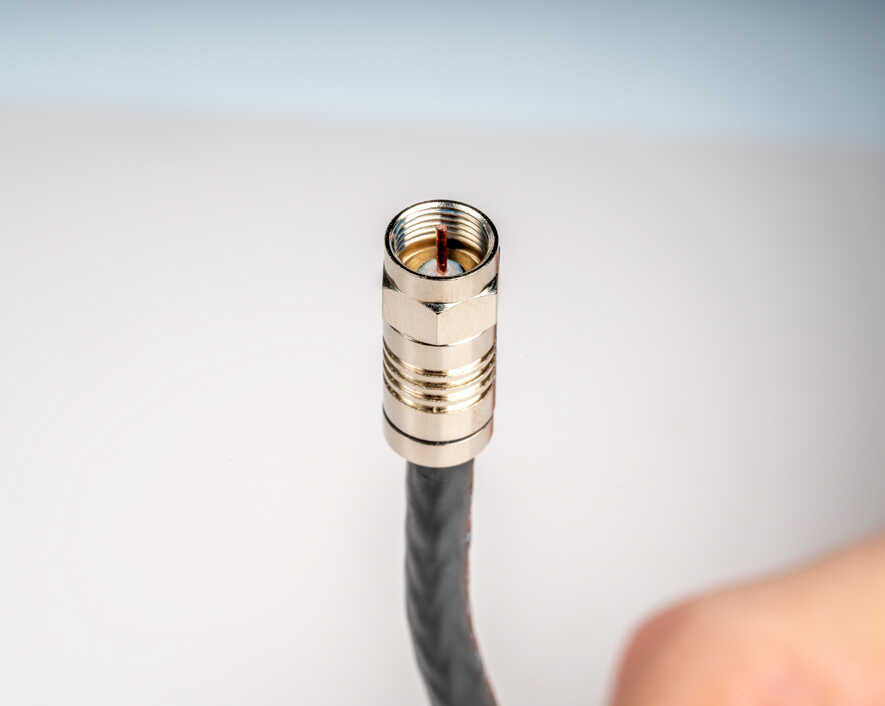

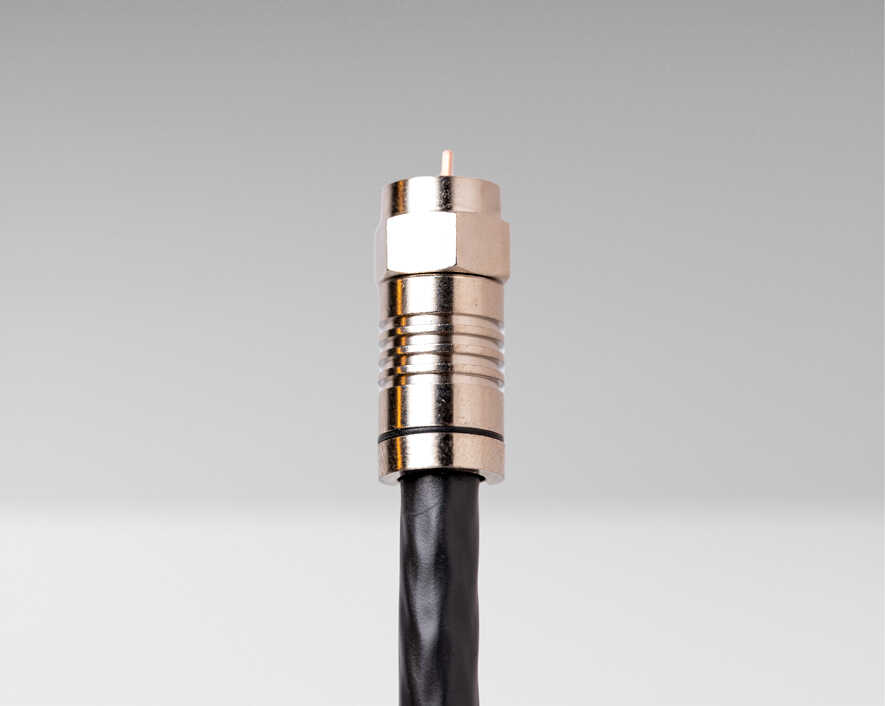

Designed for RG6/6 Quad COAX cable for quick and easy termination of cables for satellite, cable TV, and cable modems. These connectors feature the following:
Features:
- Perfect for terminating cables for satellite, cable TV, and cable modems
- Large hex nut makes it quick and easy to install
- 360° cable gripping sleeve and watertight "0-ring" keep connections secure

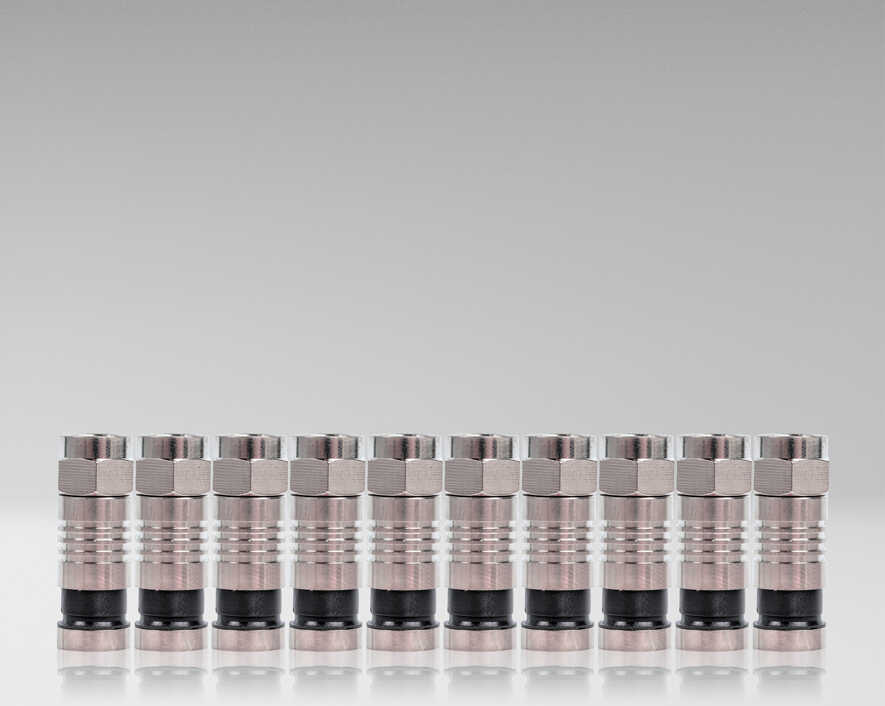

- Includes (10) RG6 Connectors
| Connector Type | RG6 |
| Standards | IEC 60169-24 |
| Temperature Range | -40～+60℃ |
| Vibration | 100 m/s² (10～500Hz) |
| Impedence | 75 Ω |
| Frequency Range | DC～1GHz |
| Working Voltage | 170Vmax |
| Withstand Voltage | 500V (RMS valid value of sea level) |
| Center Contact Res. | ≤ 10 mΩ |
| Outer Contact Res. | ≤ 5 mΩ |
| Insulation Res. | ≥ 1000 MΩ |
| Durability | ≥500 cycles |
| Product Material | Nickel |
