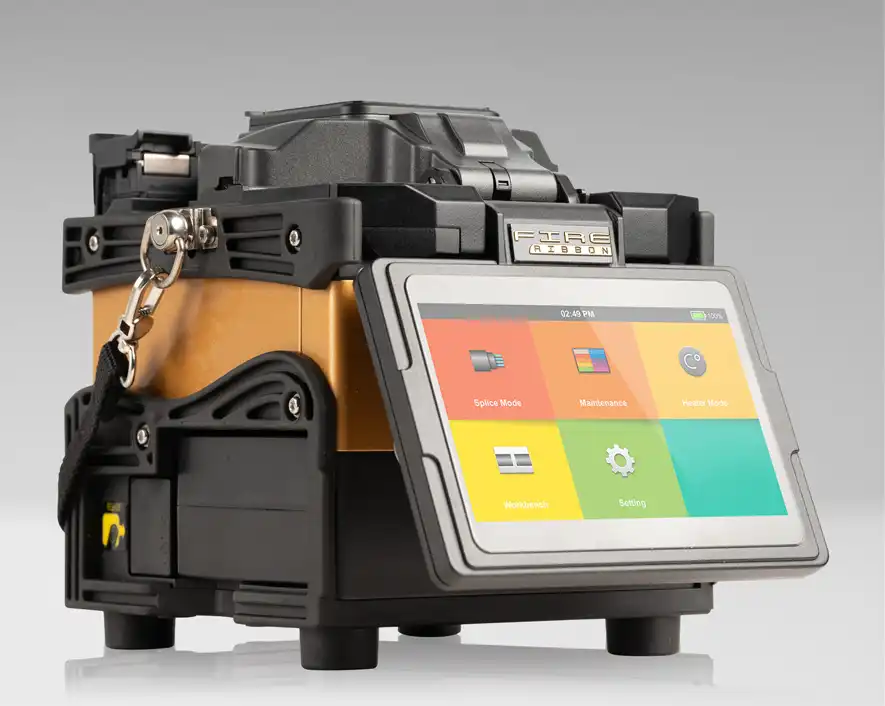

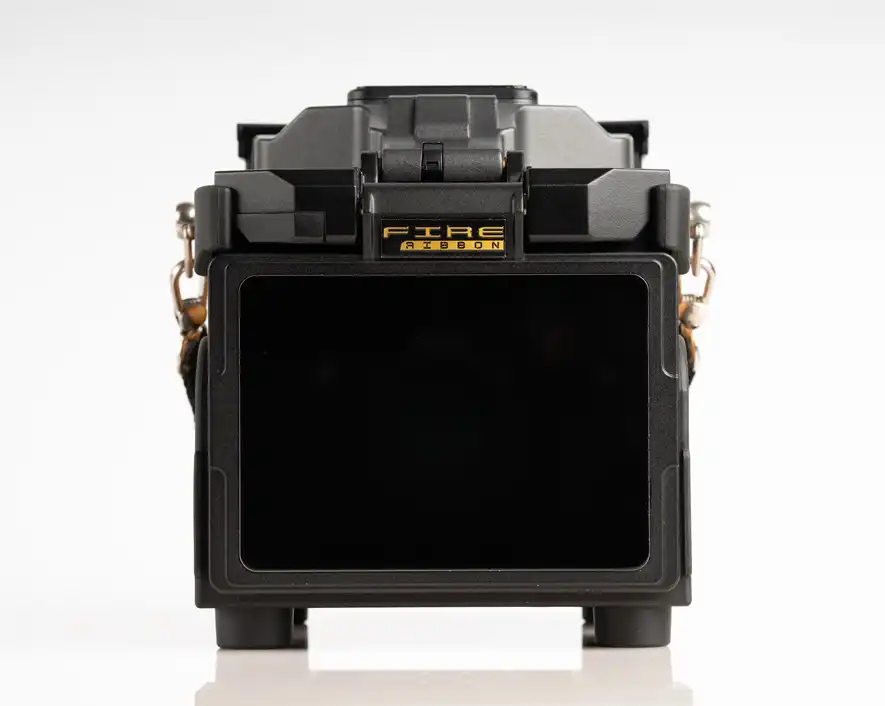

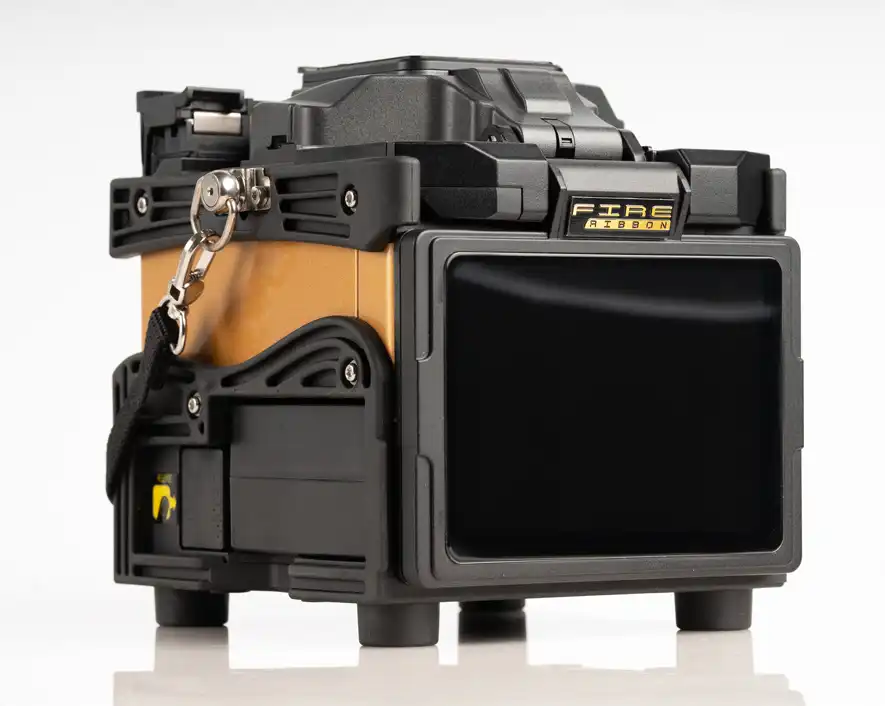

Jonard - SPRI-1 - SPARC Fusion Splicer, Ribbon Fiber
Part number:
Price:
- • Splice fibre optic cables in as little as 15 seconds for ribbon fibres or 9 seconds for single fibres.
- • Pressure heater technology reduces heating time to just 20 seconds.
- • Versatile fibre holders that allow you to easily switch between different sizes of ribbon fibre.
- • Improved lighting for better visibility in dark conditions.
- • An intuitive, full touchscreen for an enhanced user experience.
- • The 9,000 mAh battery provides up to 220 cycles of splicing and heating on a single charge.
- • Rugged design with IPx2 water resistance, IP5X dust resistance and drop-tested shock resistance from 30".
- • The on-board memory can store up to 5,000 test results.
| Alignment Method | Core Alignment |
| Number of Fibers | Up to 12 |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber | Ribbon : 0.25~0.4 mm / Single: 250 μm & 900 μm |
| Cladding Diameter | 125 µm |
| Cleave Length | 10 - 13 mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / OS: 0.03dB / NZDS: 0.03dB / G.657: 0.01db |
| Return Loss | >>60 dB |
| Splice Time | Quick Mode: Avg. 4 sec / SM Mode: Avg. 5 sec / Auto Mode: Avg. 7 sec |
| Splice Programs | Max 100 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 1500 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve Length | 20 mm - 60 mm |
| Data Output | USB-C |
| Splice Memory | 5,000 results |
| Battery Capacity | 9000mAh Battery Capacity / Typical 330 cycles (Splicing + Heating) |
| Power Supply | AC Input 100 - 240V, DC Input 9 - 19V |
| Monitor | 5.0" Color LCD display, Full Touch Screen |
| Magnification | x360, x520 |
| Pull Test | 1.96 - 2.25 N |
| Dimensions | 6.8" x 6.5" x 6.5" (17.27 cm x 16.51 cm x 16.51 cm) |
| Weight | 6 lb (2721.55 g) |
Name
Description
Size
Downloads
File
SPARC Ribbon - Datasheet.pdf
1.5mb
File
SPARC Family - Datasheet.pdf
0.5mb
File
Cladding Alignment Fusion Splicer User Manual.pdf
1mb
The SPARC Core Alignment Fusion Splicer is an advanced ribbon fibre fusion splicer that ensures impeccable precision, reliability and efficiency in fibre splicing. Designed for fibre optic professionals, it combines rapid splicing times with cutting-edge features to provide a seamless and dependable splicing experience, even in challenging environments.
