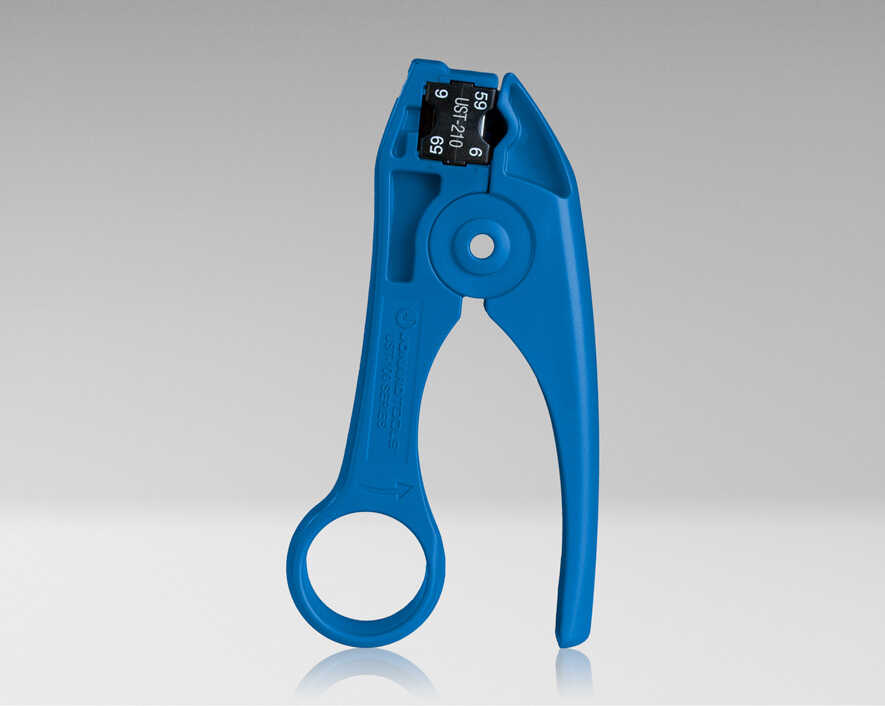

Jonard - UST-1596 - Coax Stripping Tool With Twin RG59/6 Blade
Part number:
UST-1596
Price:

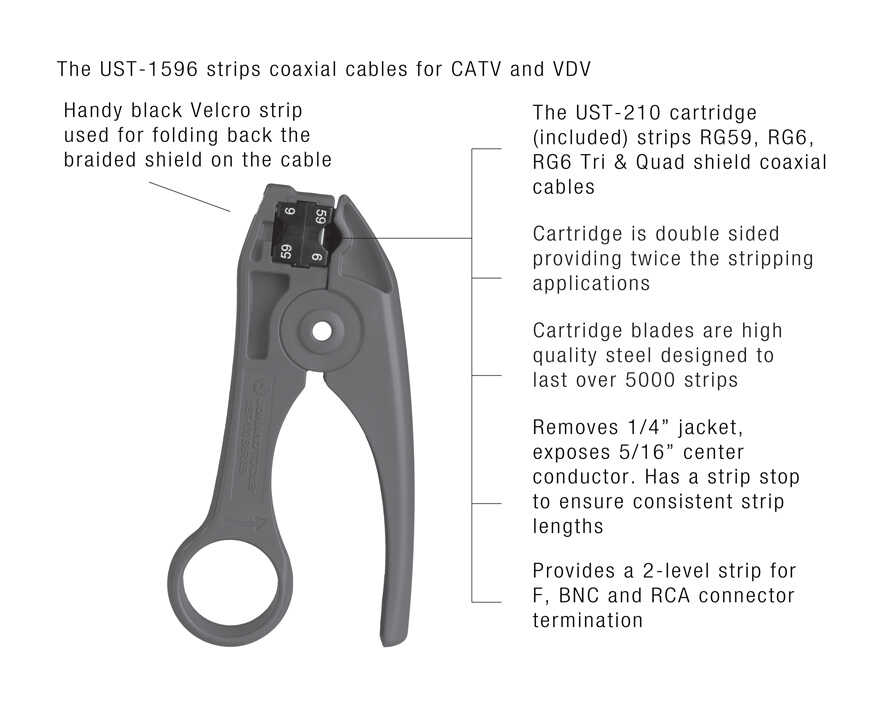

The Jonard Tools UST-1596 COAX stripping tool is designed to strip RG59, RG6, N48, RG6 Tri & Quad Shield coaxial cables for quick and easy termination. This COAX stripping tool features the following:

  • Included blade cartridge (UST-210) provides a 2-level strip for F, BNC, and RCA connector termination
  • Double sided cartridge provides twice the stripping applications before requiring replacement
  • High carbon steel blades last over 5,000 strips on each side
  • Cable stop on both sides of the cartridge ensures precise stripping without need to make adjustments
  • Cartridge is reversible for ambidextrous use
  • Hook and Loop strip on bottom of the tool folds back the braided shield on the cable with ease
  • Large finger loop provides smooth rotation during use
  • Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Cable TypeCOAX
Cable SizeRG59/6/N48
Handle ColorBlue
Product Main ColorBlue
Length4(12.63142cm)
Weight0.11 lb (48.124 g)
UPC #811490012400
