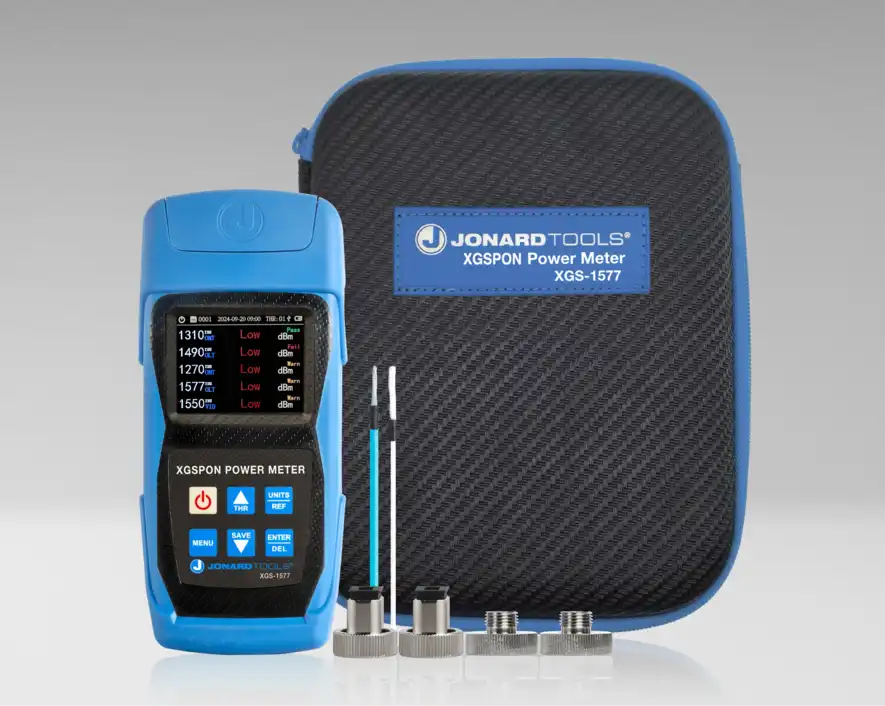

Jonard - XGS-1577 - Passive Optical Network Power Meter for XGSPON/XGPON/BPON/EPON/GPON
Part number:
Price:
• Supports simultaneous 1270/1310 nm upstream and 1490/1550/1577 nm downstream measurements

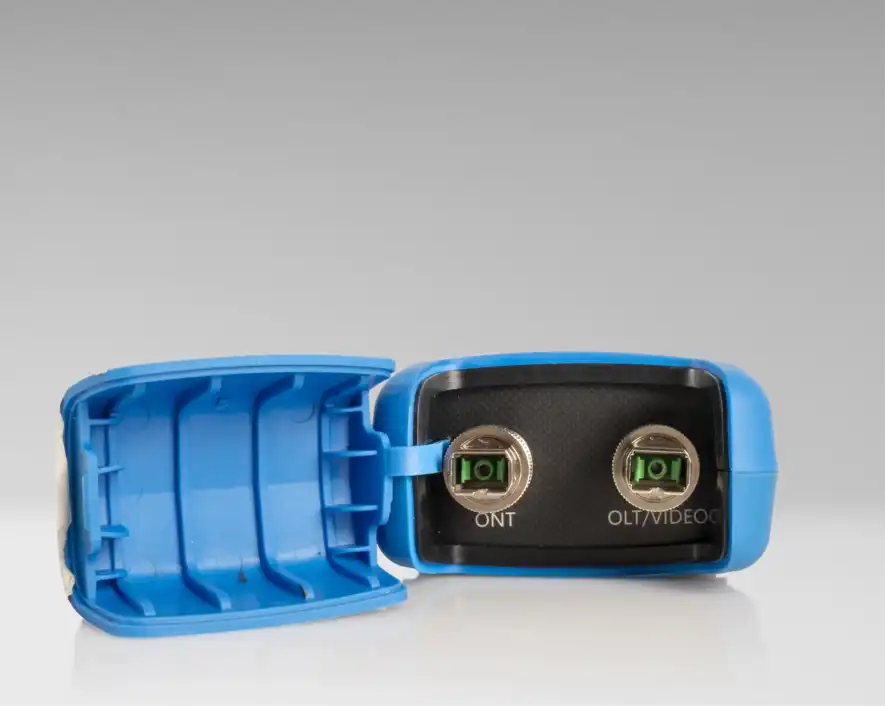

• Includes SC/APC and FC/APC adapters to be used on the most commonly used PON networks

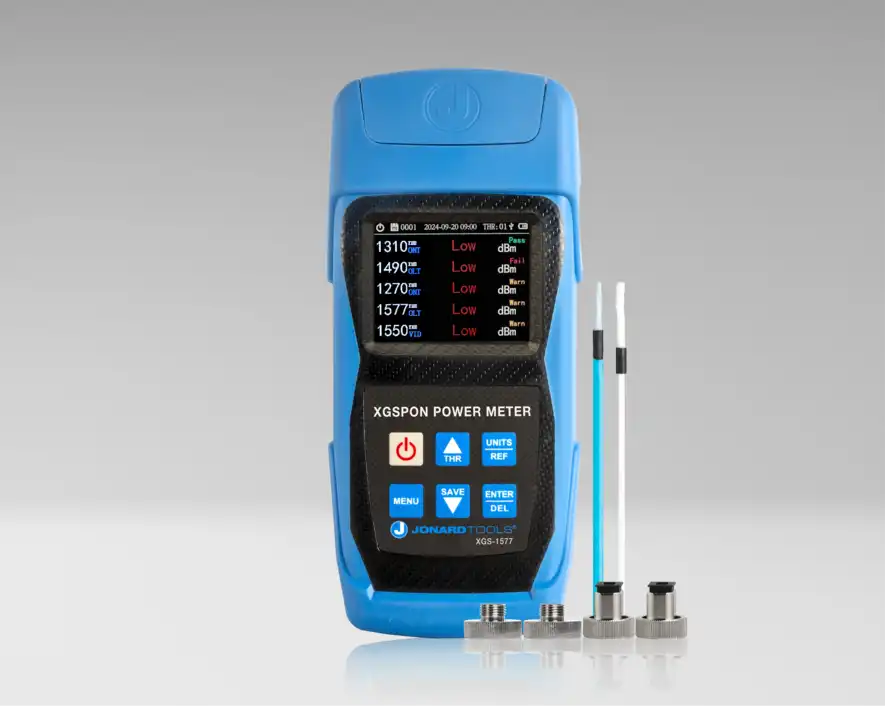

• Color LCD screen with adjustable brightness for clear and easy data viewing
• Saves up to 1,000 test results which can be downloaded and evaluated on a PC
• Built-in kickstand provides an ergonomic viewing angle
• Powered by (3) AA batteries that last less than 90 hours, ideal for field use
| Network Types | XGSPON/XGPON/BPON/EPON/GPON |
| Connector Types | SC/APC, FC/APC |
| Upstream Wavelengths | 1270±10 nm, 1310±20 nm |
| Downstream Wavelengths | 1490±10 nm, 1550±10 nm, 1577±6 nm |
| Downstream Range | +13～-40 dBm @ 1270/1310 nm |
| Upstream Range | +13 ~ -50 dBm @ 1490 nm, +25 ~ -50 dBm @ 1550 nm, +10 ~ -50 dBm @ 1577 nm |
| Insertion Loss | ≤1.5 dB |
| Uncertainty | ≤0.5 dB |
| Data Storage | 1000 entries |
| PC Interface | USB-C |
| Auto-Off | Off, 10 min, 20 min, 30 min |
| Batteries | (3) 1.5V AA |
| Battery Life | <90 hours |
Name
Description
Size
Downloads
File
XGS-1577 - Passive Optical Network Power Meter for XGSPON_XGPON_BPON_EPON_GPON - Data Sheet.pdf
0.5mb
File
XGS-1577 Instruction Manual.pdf
1.5mb
