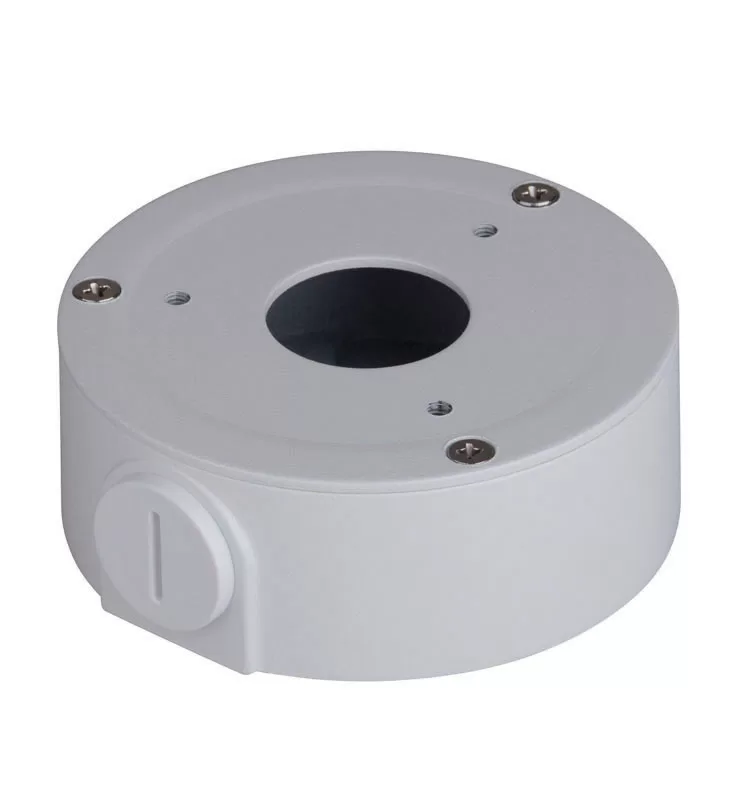

Junction Box
Features:
- Material: Aluminum and SECC
- Dimensions: 90.0 mm x 35.0 mm (3.54 in. x 1.38 in.)
- Pipe Thread: M20 (G1/2 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 1.0 kg (2.20 lb)
- Weight: 0.22 kg (0.49 in.)
- Color: White
| Specifications | |
| Model | PFA134 |
| General | |
| Material | Aluminum & SECC |
| Dimension | φ90x35mm |
| Inch Thread | M20(G1/2”) |
| Operating Temperature | -40ºC ~60ºC |
| Humidity | 0~90% RH |
| Load Bearing | 1.0Kg |
| Weight | 0.22Kg |
| Color | White |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
