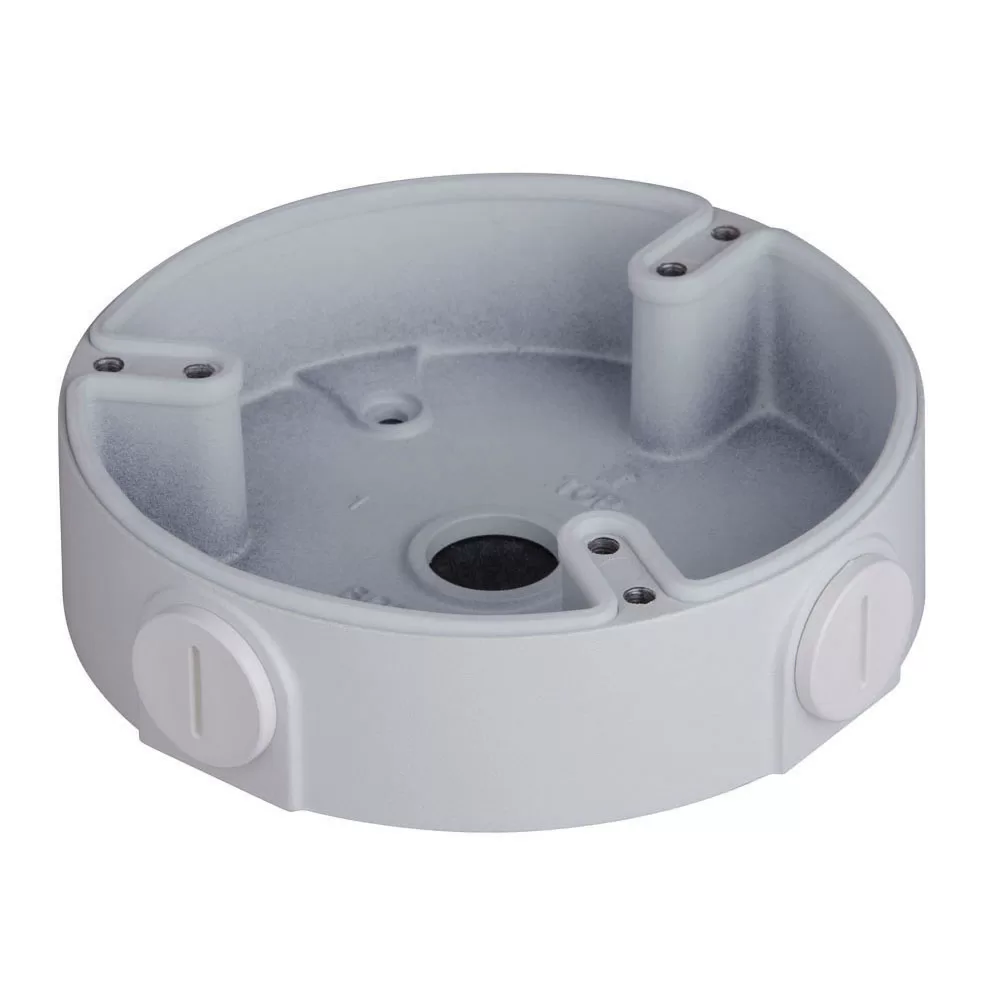

Junction Box
Features:
- Material: Aluminum
- Dimensions: 122.0 mm x 33.80 mm (4.80 in. x 1.33 in.)
- Inch Thread: M20 (G1/2 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity:0 to 90% RH
- Load Bearing: 1.0 kg (2.20 lb)
- Weight: 0.18 kg (0.40 lb)
- Color: White
| Specifications | |
| Model | PFA137 |
| General | |
| Material | Aluminum |
| Dimension | φ122x32mm |
| Inch Thread | M20(G1/2”) |
| Operating Temperature | -40ºC ~60ºC |
| Humidity | 0~90% RH |
| Load Bearing | 1.0Kg |
| Weight | 0.3Kg |
| Color | White |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
