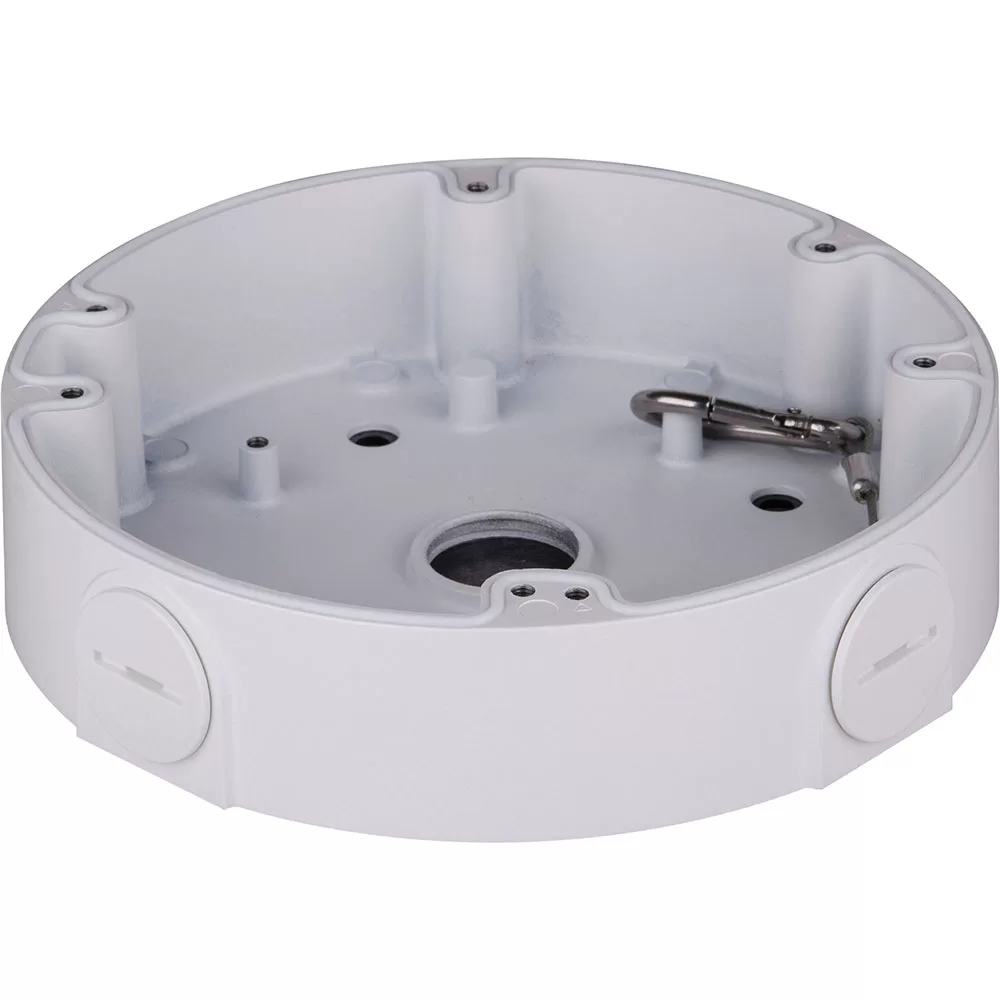

Junction Box
Features:
- Material: Aluminum
- Dimensions: 160.90 mm x 38.0 mm (6.34 in. x 1.50 in.)
- Inch Thread: G3/4 in.
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 3.0 kg (6.61 lb)
- Weight: 0.45 kg (1.0 lb)
- Color: White
| Technical Specifications | |
| Material | Aluminum |
| Dimensions (W x H x D) | ø160.90 mm x 37.0 mm (ø6.34 in. x 1.46 in.) |
| Pipe Thread | G3/4 in. |
| Weight | 0.48 kg (1.06 lb) |
| Load Bearing Capacity | 3.0 kg (6.61 lb) |
| Color | White |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
