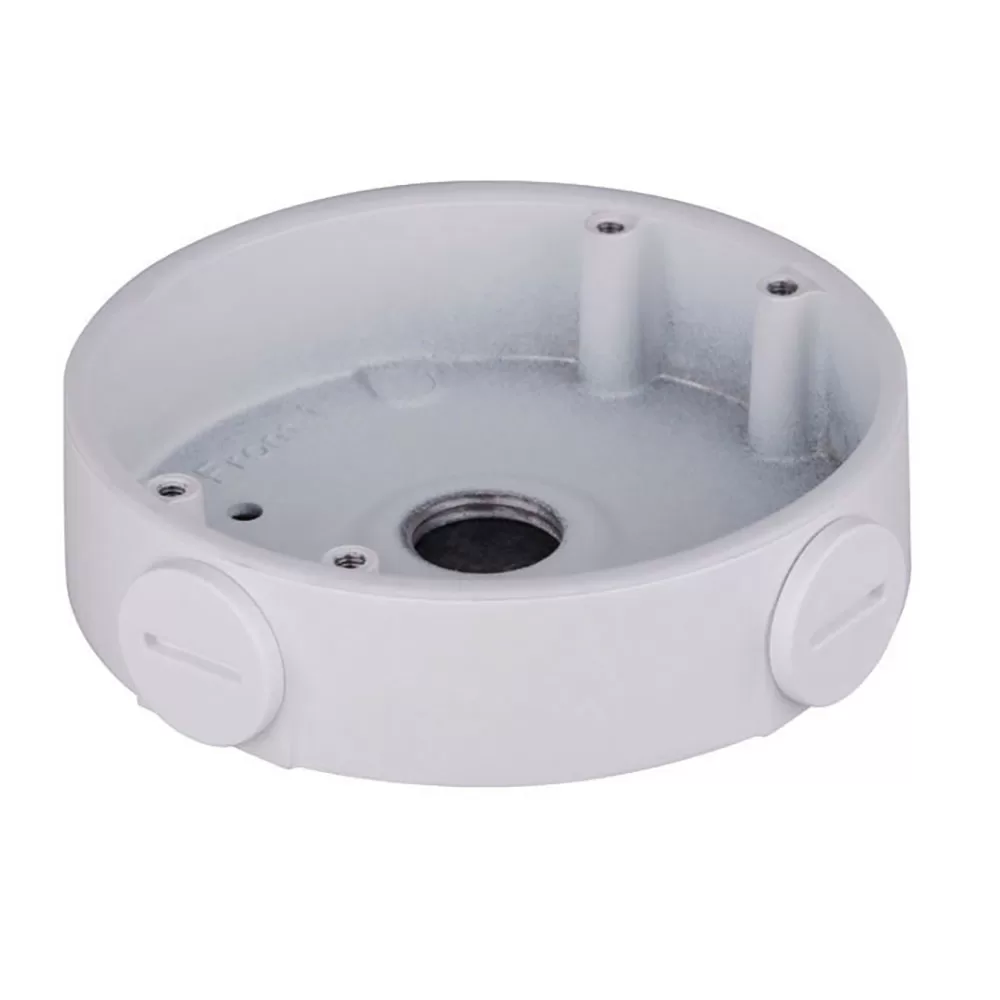

Junction Box
Features:
- Material: Aluminum
- Dimensions: 108.0 mm x 28.50 mm (4.25 in. x 1.12 in.)
- Pipe Thread: M20 (G1/2 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 1.0 kg (2.20 lb)
- Weight: 0.16 kg (0.35 lb)
- Color: White
| Technical Specifications | |
| Material | Aluminum |
| Dimensions (W x H x D) | ø108.0 mm x 28.50 mm (ø4.25 in. x 1.12 in.) |
| Pipe Thread | M20 (G1/2 in.) |
| Weight | 0.16 kg (0.35 lb) |
| Load Bearing Capacity | 1.0 kg (2.20 lb) |
| Color | White |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
