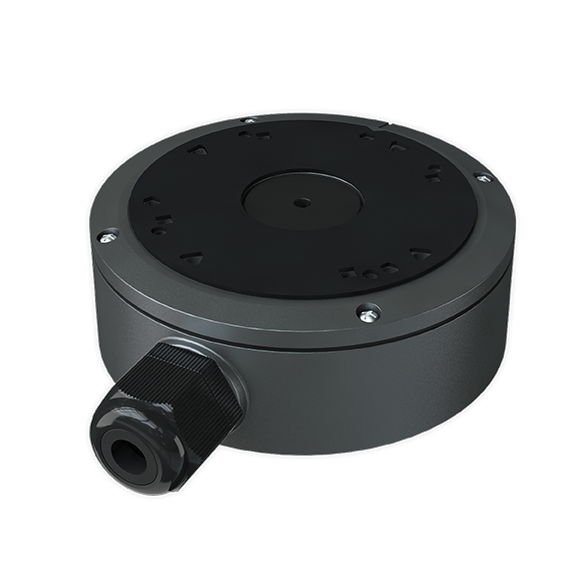

Digital Watchdog - DWC-MT9JUNCB - Junction Box for Fixed Lens T9 Turret Cameras - Black
Part number:
DWC-MT9JUNCB
Price:
Junction box for fixed lens T9 turret cameras - Black
Features
- Junction box for selected turret cameras
- Aluminum alloy material with finish spray treatment
- Black-color finish
- Side and front 3/4" conduit entrances for versatile installation
- For indoor and outdoor use
- Camera cables can be collected and stored in the box for an elegant finish
- Easy and safe installation
- 1 year warranty
| Specifications | |
| Mounting Accessories | |
| Compliance | NDAA |
| Max load bearing | The mounting surface must bear five times the weight of the camera and bracket |
| Material | Alluminium alloy |
| Color | Black |
| Working Temperatures | -40°F~140°F (-40°C~60°C) |
| Working humidity | 10%~90% |
| Mounting options | Ceiling Wall Indoor Outdoor |
| Warranty | 1 year warranty |
| Included accessories | QSG Mounting template Screws and plastic anchors Camera mounting screws waterproof o-ring |
| Accessory Weight | 1.12 lbs (512g) |
| General | |
| General Dimensions | 5.48" x 1.96" (139.3 x 50mm) |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Quick Start Guide
1.9mb
