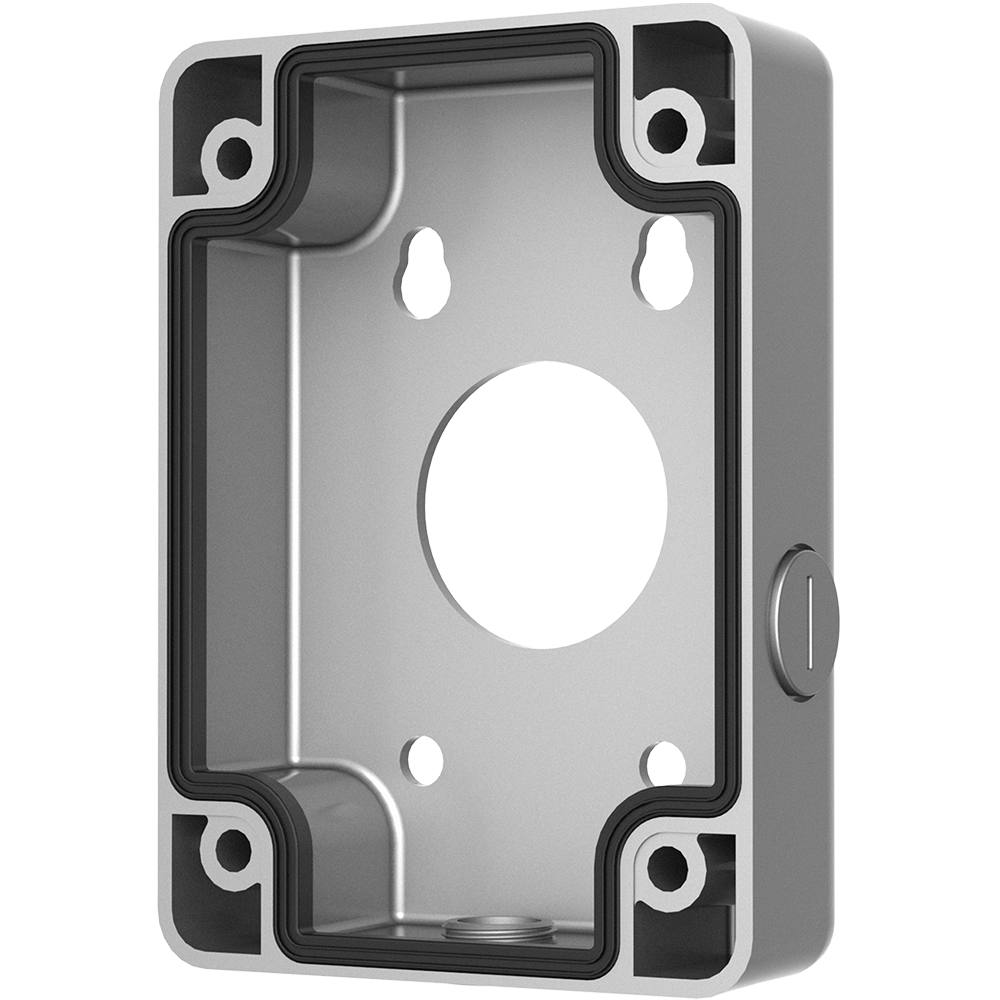

Dahua - DH-PFA120-SG - Junction Box (Silver)
Part number:
DH-PFA120-SG
Price:
Junction Box (Silver)
Features:
- Material: Aluminum
- Color: Silver-gray
- Dimensions (W x H x D): 115.0 mm x 160.0 mm x 38.80 mm (4.53 in. x 6.30 in. x 1.53 in.)
- Pipe Thread: M20 (G1/2 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 7.0 kg (15.43 lb)
- Weight: 0.53 kg (1.17 lb)
| Technical Specifications | |
| Material | Aluminum |
| Dimensions (W x H x D) | 115.0 mm x 160.0 x 38.80 mm (4.53 in. x 6.30 x 1.53 in.) |
| Pipe Thread | M20 (G1/2 in.) |
| Weight | 0.53 kg (1.17 lb) |
| Load Bearing Capacity | 7.0 kg (15.43 lb) |
| Color | Silver-gray |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
| Compatibility | DH-IPC-PFW8840N-A180 |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
