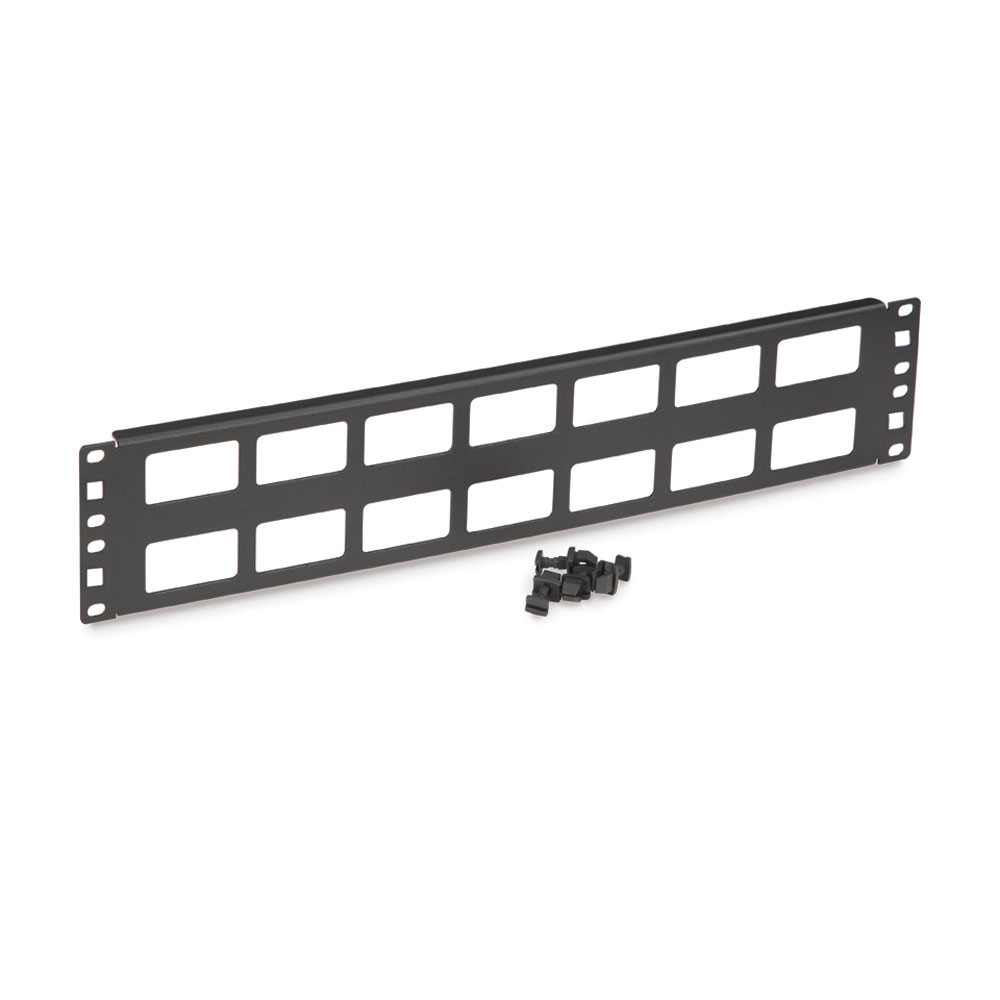

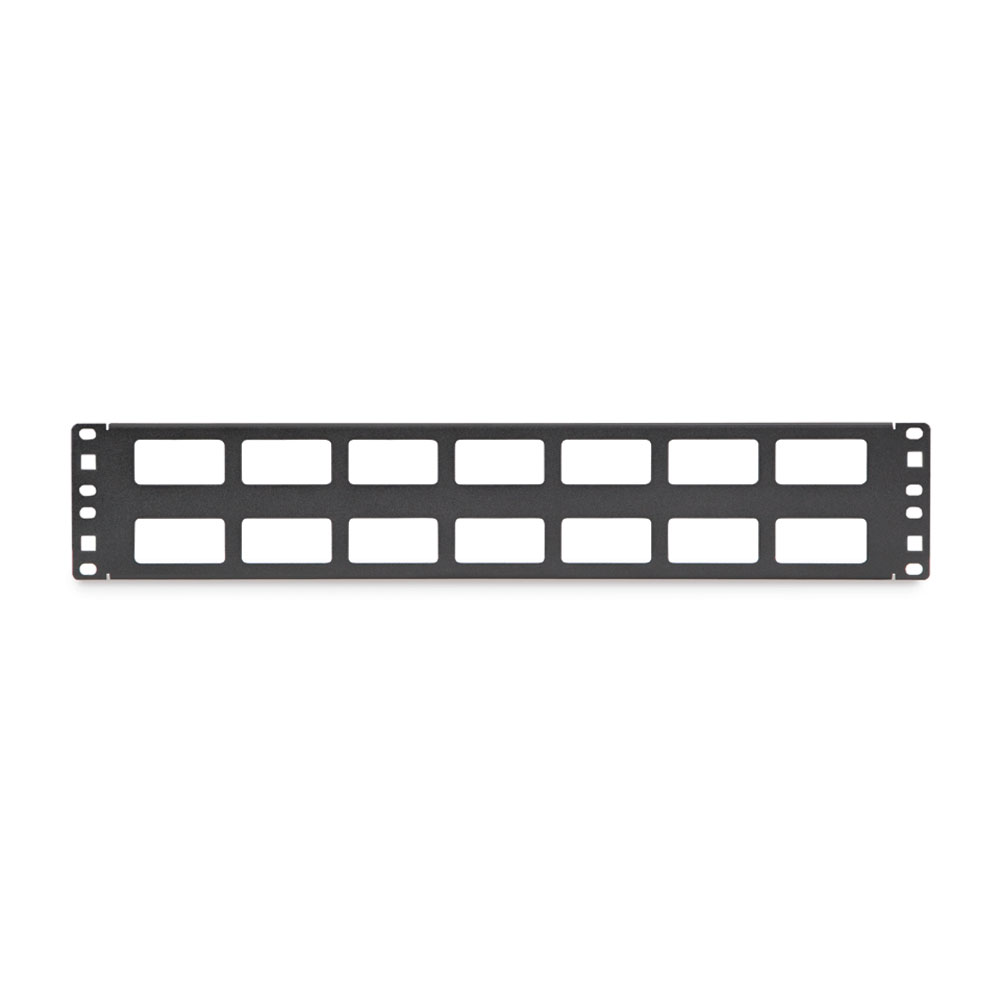

The Kendall Howard 2U Cable Routing Blank provides the perfect way to route cables within a rack. With this simple device, you can conveniently route cables from the front to the back of the cabinet, while bringing organization to your cables and connections.
With this simple device, you can conveniently route cables from the front to the back of the cabinet, while bringing organization to your cables and connections.
14 large open cut outs provide ample room for routing various cables such as copper, fiber optic, telecom, and power cables.
Cable routing panel can be installed to safely direct cables from left to right or front to back. Easily route cables from patch panels, routers, and switches that are mounted in the front of the rack to servers or other components that require the cables to be connected in the rear of the rack.
Edges and cable cut outs all have rounded corners for safe handling and installation.
19″ EIA compliant routing panel can be installed in a wide variety of network/electronic solutions such as 2-post racks, 4-post racks, server enclosures, and wall mount racks and cabinets.
For smaller cable bundle installations, the use of the included tool-less clips makes installation easy with universal cage nut style rails. For heavier cable bundles the use of rack screws and cage nuts are recommended.
Features:
- Low profile 2U design
- 14 large cut outs
- Black powder coat finish
- Rounded corners
- Made in the USA
- Limited Lifetime Warranty
| Part Number | 1902-1-002-02 |
| Width | 19" |
| Depth | 0.5" |
| Height | 3.47" |
| Weight | 2.00 lbs. |
| Shipping Dimensions | 20" L x 6" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447000191 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
