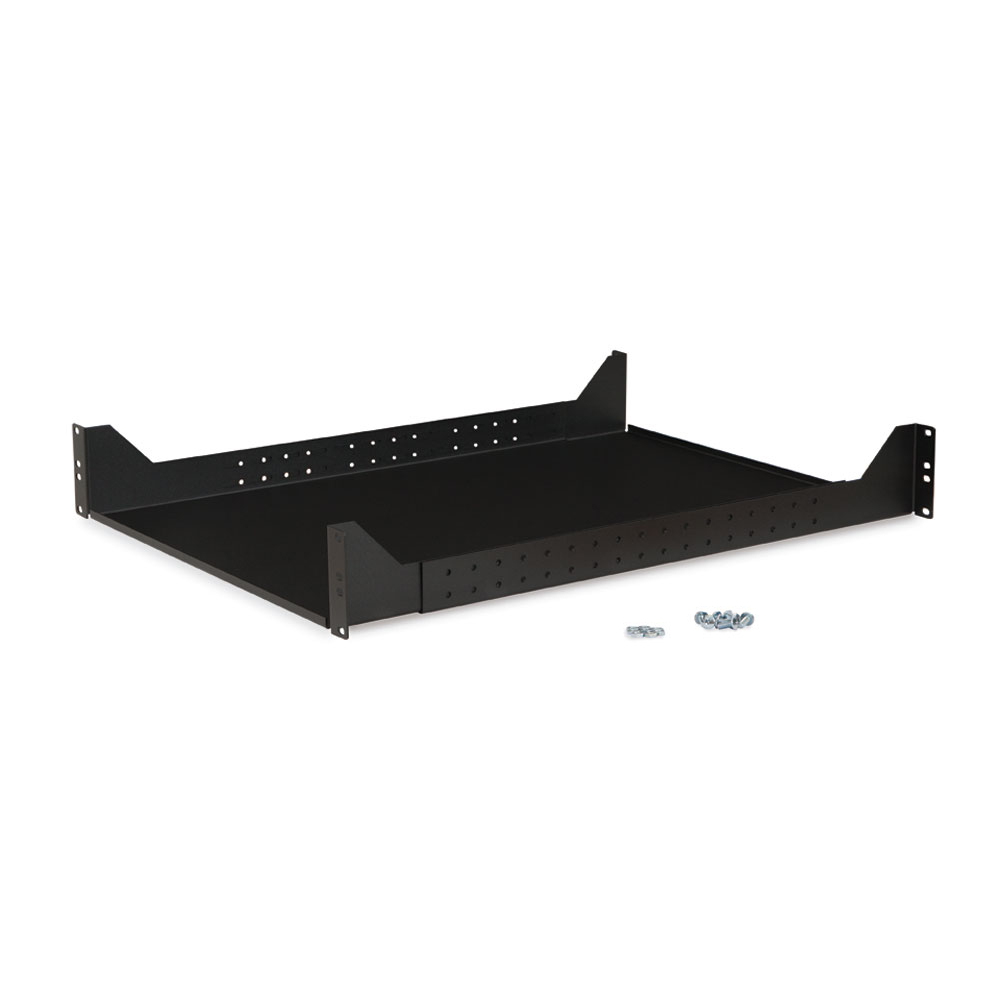

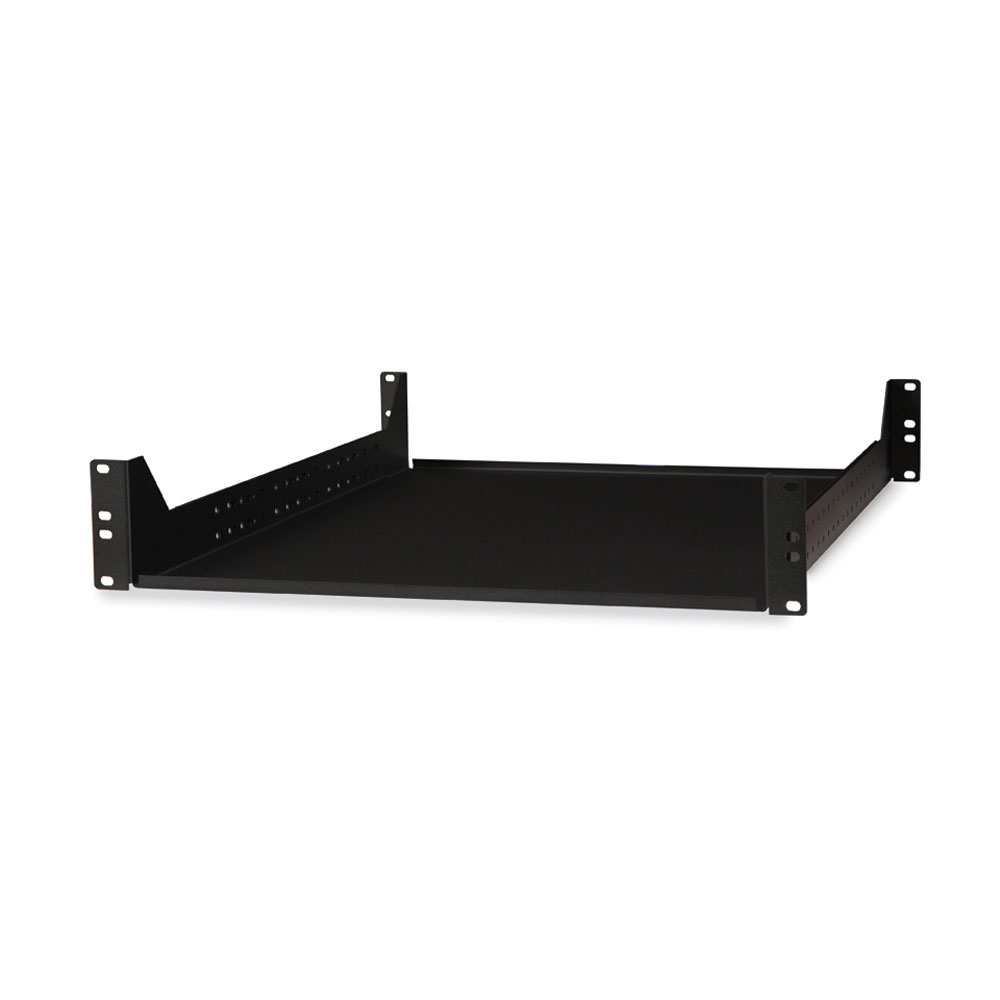

Kendall Howard - 1906-3-006-02 - 2U 4-Point Adjustable Shelf
Part number:
1906-3-006-02
Price:

The Kendall Howard 2U 4-Point Adjustable Rack Shelf is the perfect addition to any 4-post rack or cabinet. The split design allows the shelf depth to be adjusted from 22" to 40". Save yourself the time and frustration of trying to find a rack shelf to fit a specific depth, and let this versatile solution meet all your shelving needs.



Adjustable Depth:

Telescoping rack shelf is comprised of two separate sections. The two sections can be slid in and out to the desired depth and secured with included hardware. (Mounting rack screws and cage nuts sold separately.)



4-Point Mounting:

Adjustable depth shelf is designed to be mounted to the front and rear rack rails. This 4-point mounting is highly recommended for supporting large, heavy devices such as servers, battery backups, and UPS’s.



Heavy Duty:

Made from heavy gauge steel and finished with a black textured powder coat for a quality shelf that can support up to 250 lbs.



Rounded Corners:

Rounded corners reduce the risk of damage from sharp edges to your devices, cabling, and/or hands.





Features:

  • Adjusts from 22" to 40"
  • 250 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1906-3-006-02
Width19"
DepthAdjustable: 22" - 40"
Height3.47"
Weight18.00 lbs.
Shipping Dimensions22" L x 27" W x 5" H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447000276
WarrantyLimited Lifetime Warranty
Shipping MethodFedEx Ground
