The Kendall Howard Fan Assembly Kit helps to remove ambient heat that rackmount components can emit. Circulating new air into a wall mount cabinet or server enclosure helps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.

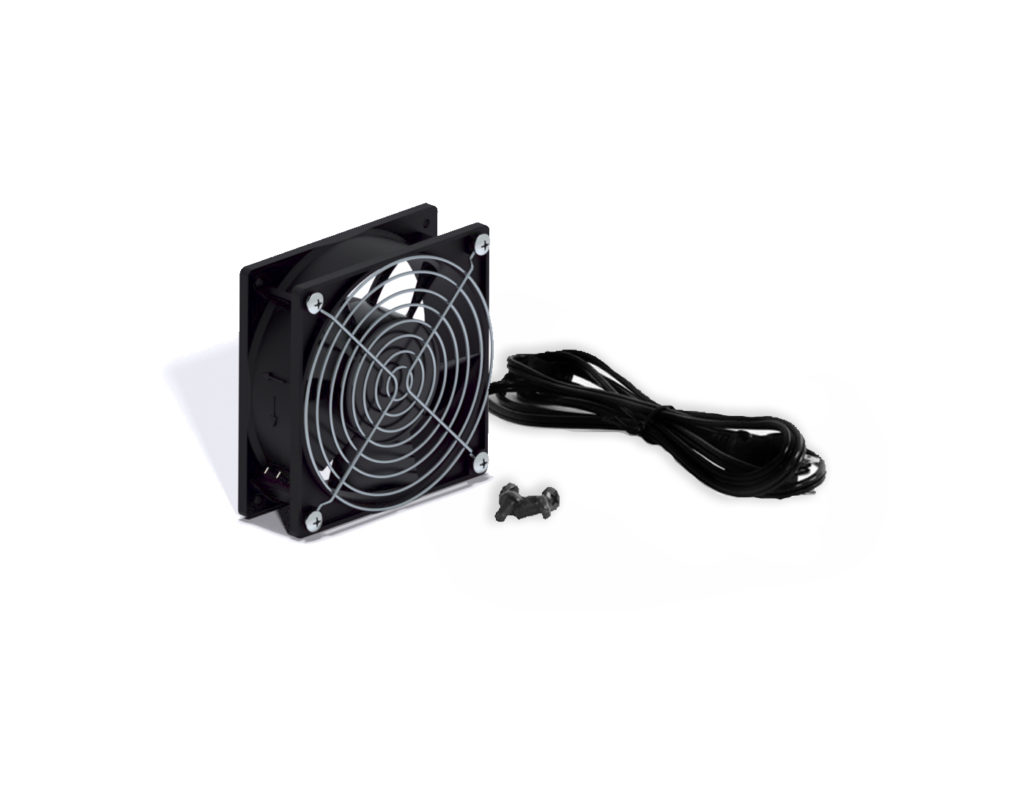

The fan assembly kit comes complete with one 115V / 78 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.
The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.
The standard 4″ fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.
Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation
Features:
- Ball bearing design
- 115V / 78 CFM
- Impedance protected
- RoHS compliant
- Includes power cord, fan guard, and installation hardware
- 1-Year Limited Warranty
| Part Number | 1908-3-001-01 |
| Width | 4.7" |
| Depth | 4.7" |
| Height | 0.98" |
| Weight | 1.50 lbs. |
| Shipping Dimensions | 6" L x 6" W x 6" H |
| Material(s) | Rack Mount Panel: CRS (Cold Rolled Steel) |
| Color/Finish | Rack Mount Panel: Black Powder Coated Finish |
| UPC | 879447001167 |
| Warranty | 1-Year Limited Warranty |
| Shipping Method | FedEx Ground |
| Fan Specifications | Bearing System: Ball Bearing |
