Kendall Howard - 1915-3-200-12 - 12U Side Mount Wall Rack
Part number:
1915-3-200-12
Price:

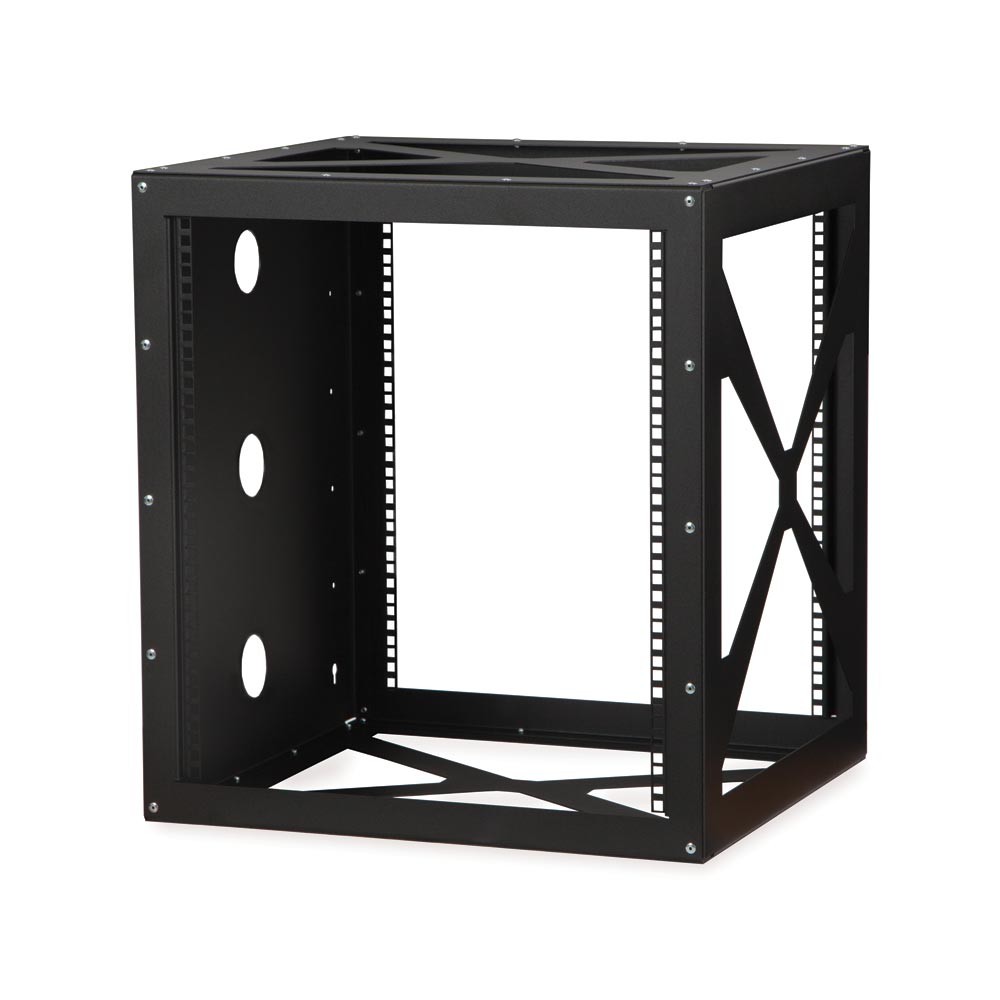

The Kendall Howard Side Load Wall Mount Rack is an open frame rack with a twist...literally. The rack mounts sideways allowing you to install equipment from side to side. This innovative concept not only allows you to install deeper equipment than most other wall mount racks, but you also have clear and easy access to the front and rear of the devices. With a weight capacity of up to 350 lbs., this side loading wall rack is a great solution for servers, battery backups, and other heavy rackmount components.



Space Saving Design:

When you do not have the space for a full size server cabinet or when hanging larger, deeper components on the wall is necessary, the Side Load Wall Mount Rack gives some of the same benefits you get from a 4-Post rack or cabinet in a much smaller footprint. The low profile design is only 21″ off the wall, making it a true space saver.



Equipment Access:

Easily access the front and back of your network equipment without having to twist, pivot or swing-out the rack. This open design provides installers unlimited access to equipment from just about any angle.



Strength and Durability:

The heavy gauge steel construction and textured powder coat finish provide a solid, reliable wall mount racking solution.



Front and Rear Rails:

The fixed set of front and rear (which are really left and right) cage nut style rails provide a 20″ mounting depth for equipment that requires a 4-point mounting.



Features:

  • 20" fixed mounting depth
  • 350 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1915-3-200-12
Width20.15"
Depth22.18"
Height24.27"
Weight37.50 lbs.
Shipping Dimensions29" L x 28" W x 25" H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447001181
WarrantyLimited Lifetime Warranty
Shipping MethodFedEx Ground
Name
Description
Size
Downloads
File
cut sheet
0.3mb
File
Instructions
0.3mb
File
Datasheet
0.1mb
