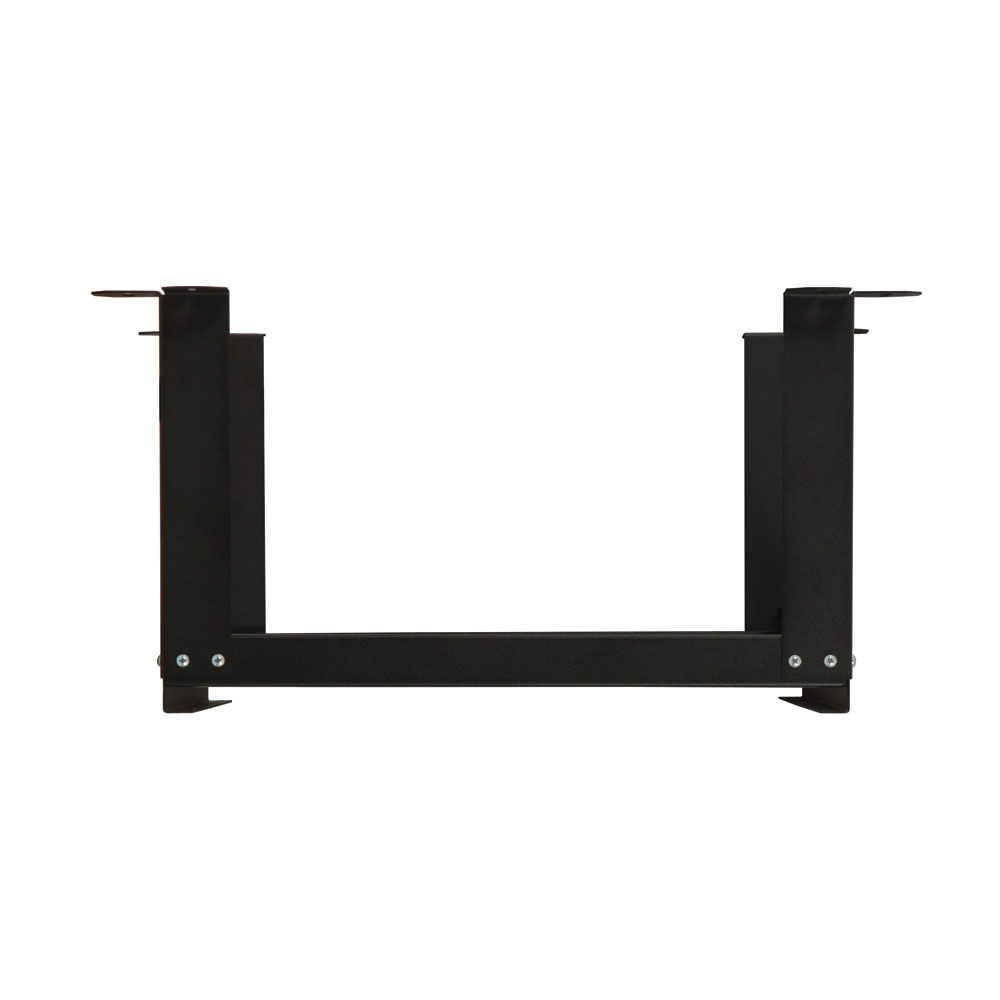

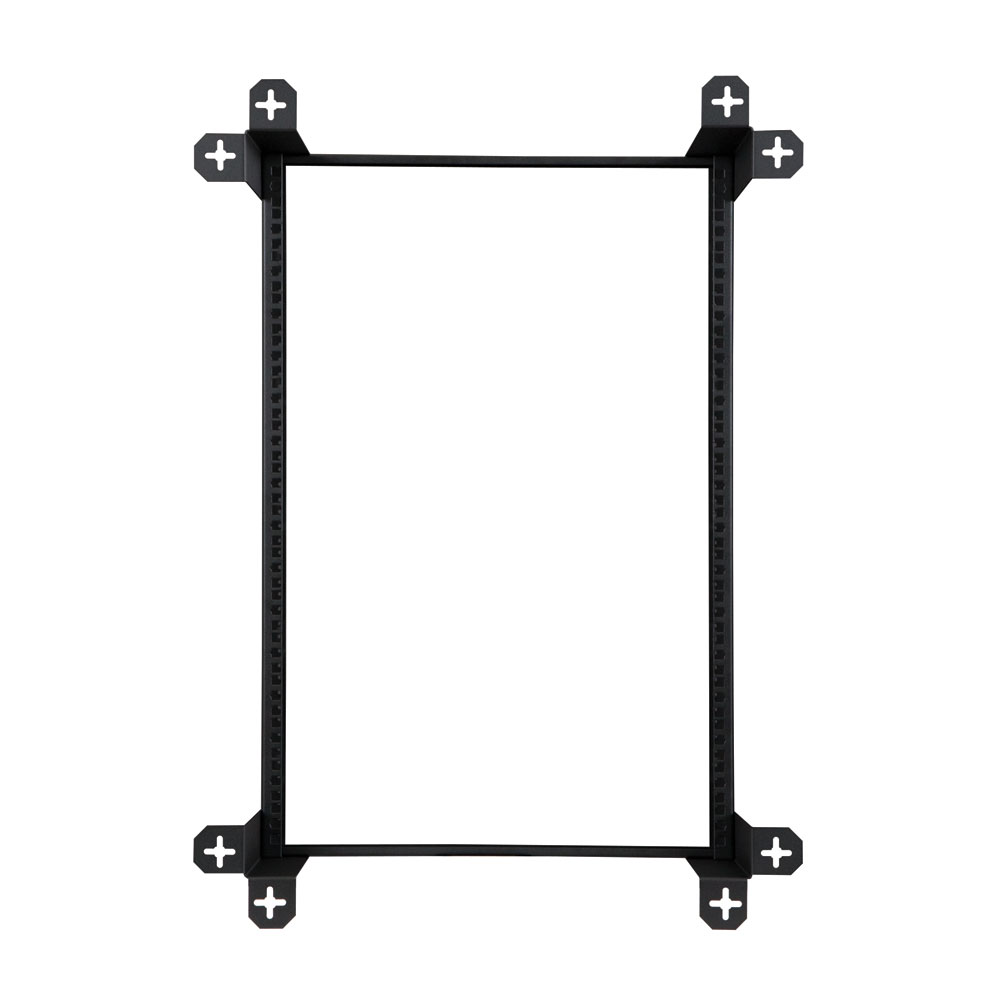

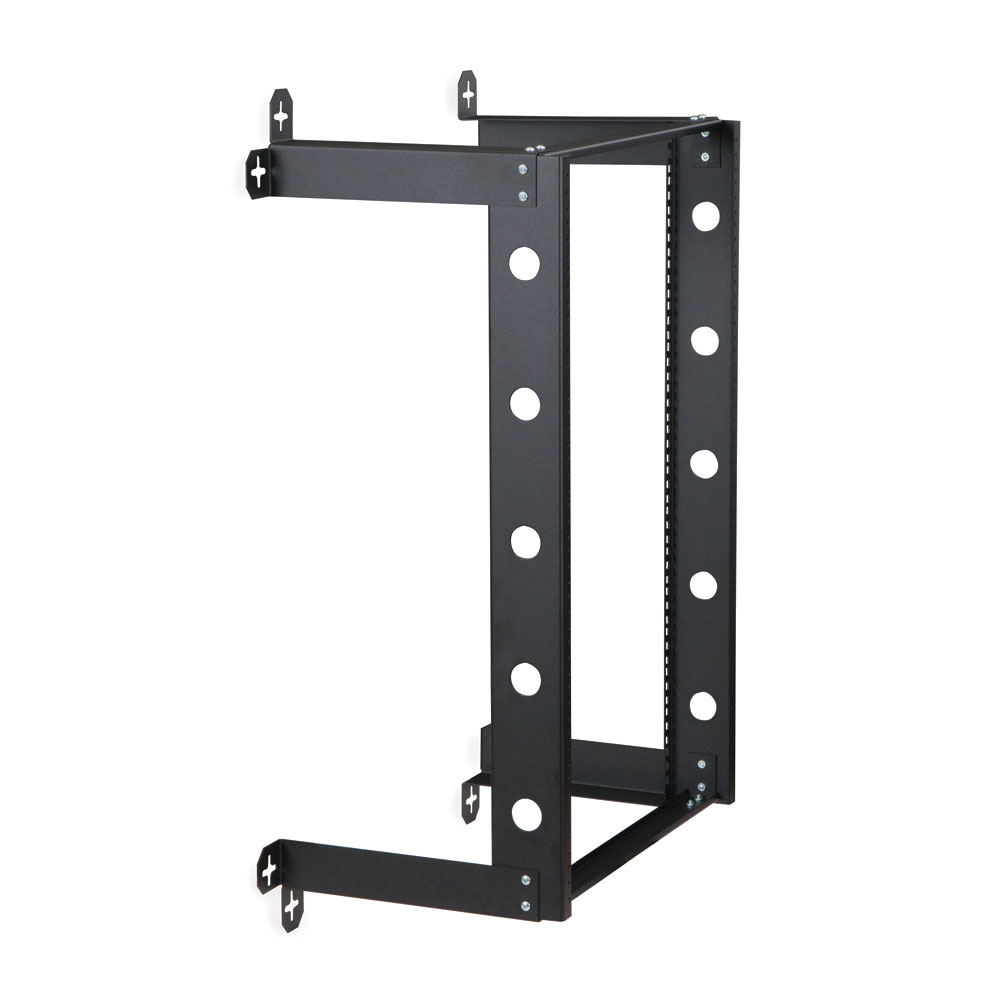

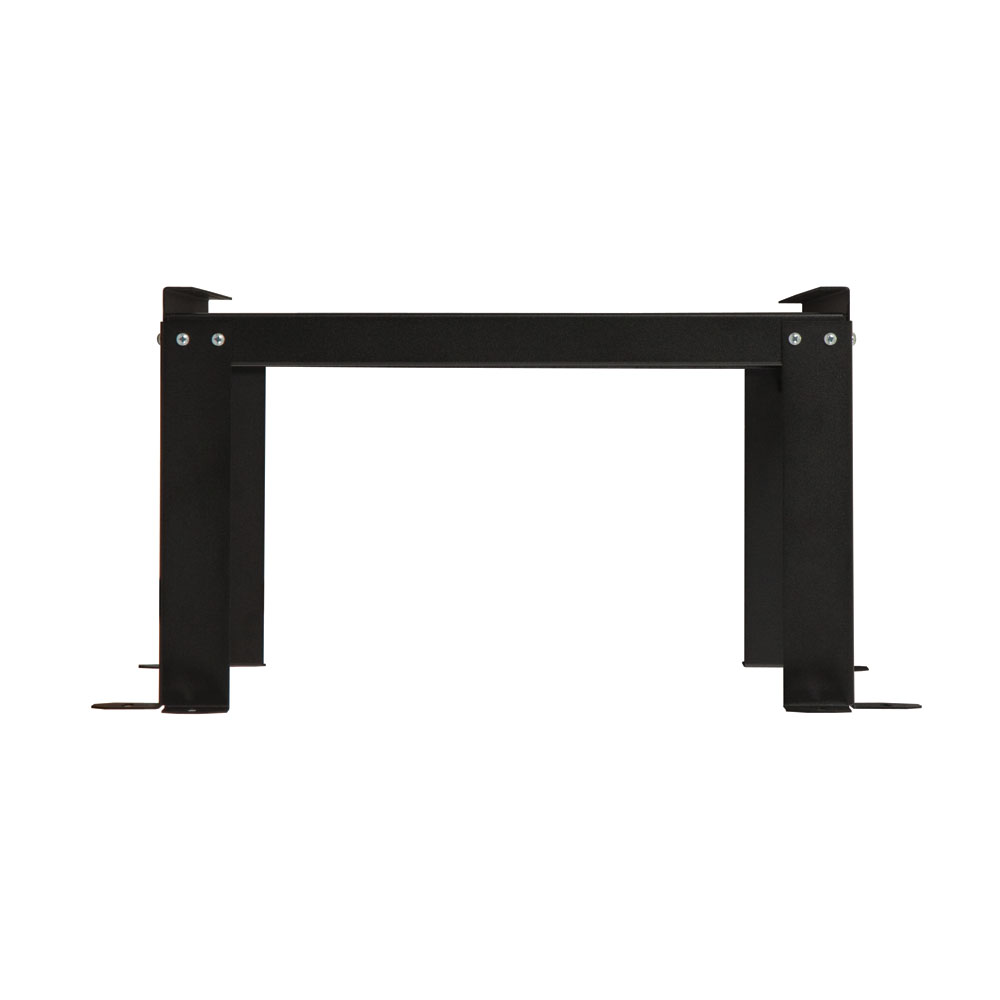

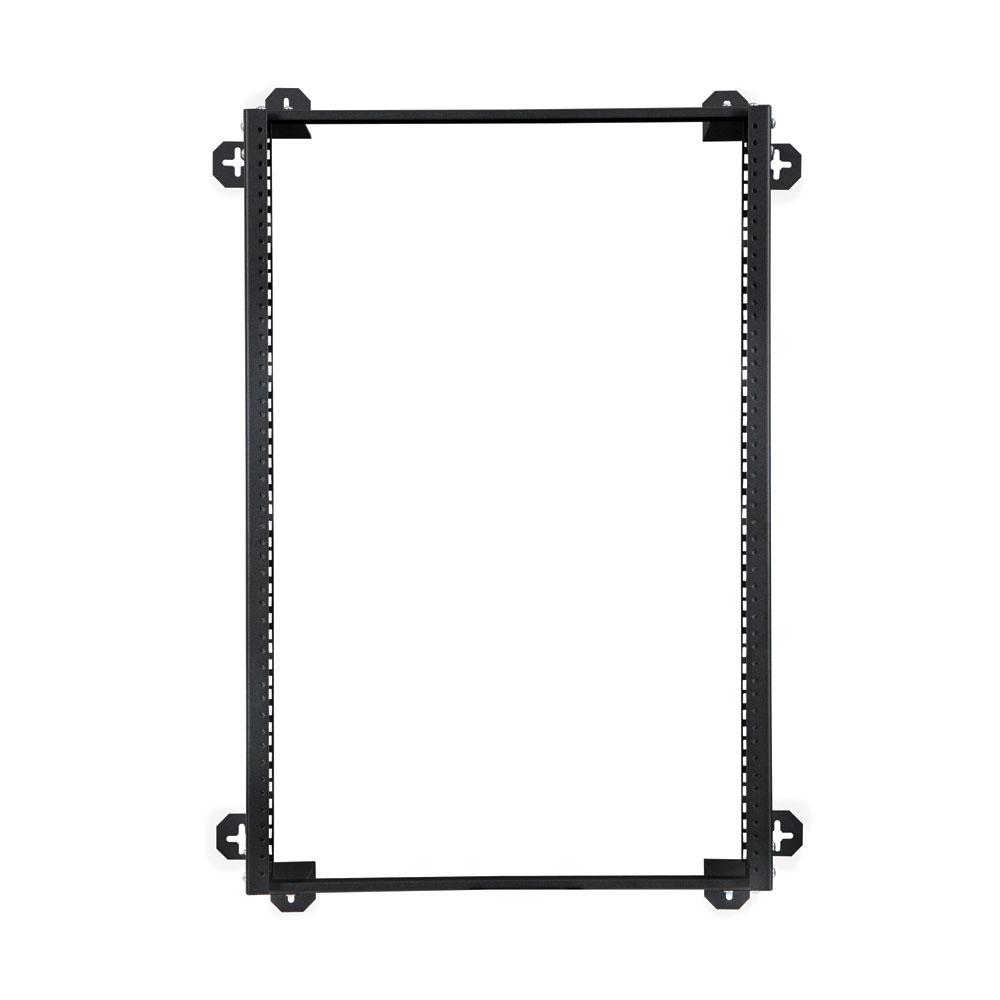

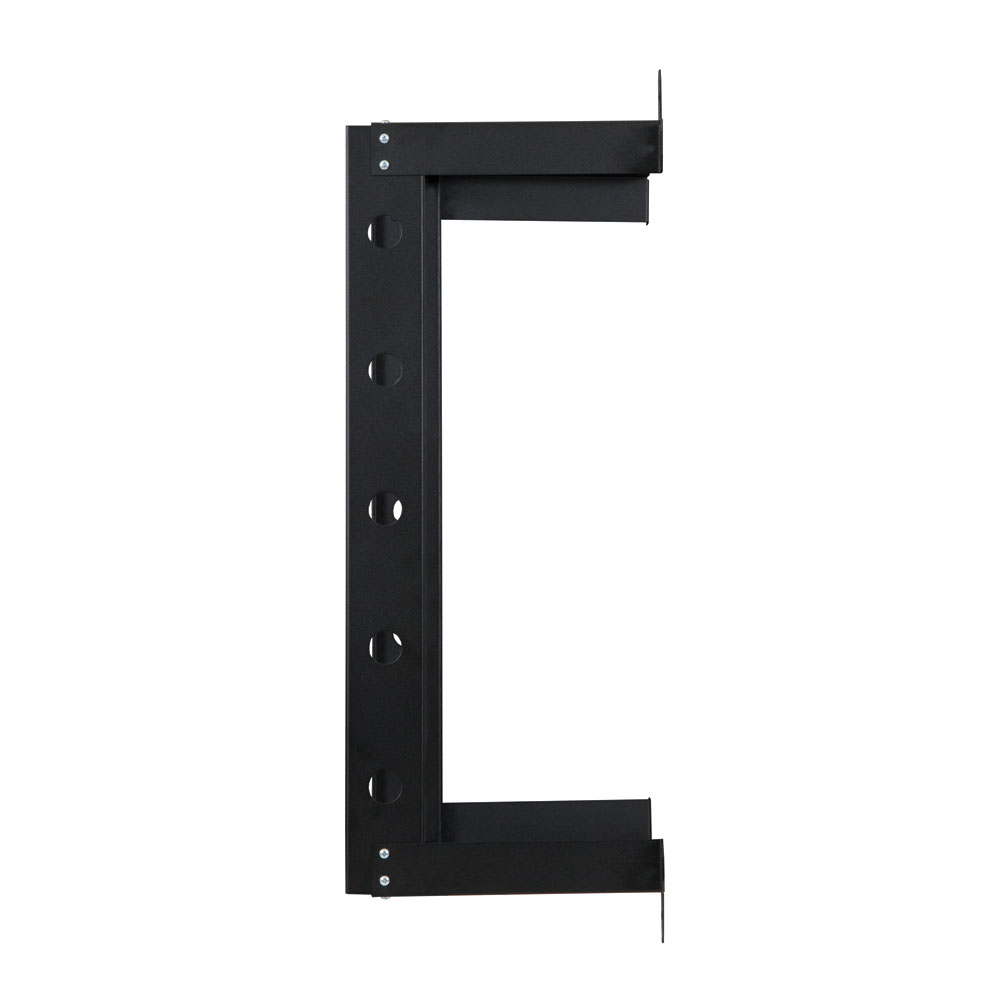

Kendall Howard - 1915-3-300-16 - 16U V-Line Fixed Wall Rack
Part number:
1915-3-300-16
Price:

Kendall Howard V-Line Open Frame Fixed Wall Mount Racks are the perfect low cost solution that IT installers and A/V technicians use every day. Kendall Howard knockdown 16U Fixed Wall Racks are incredibly easy to assemble and install.



Knockdown Design:

The bolt together assembly has a self-squaring design to make it incredibly easy to assemble and install.



Choose Your Rail Style:

The U shaped rail channels feature two different mounting styles. One side features 10-32 tapped mounting holes, and the other has universal cage nut mounting capabilities.



Quality Wall Rack:

The simplistic design of the V-Line Wall Mount Rack may not look it, but its 300 lb. weight capacity makes it one of the strongest wall mount solutions out there.



Features:

  • 12" usable depth
  • Cage Nut or 10-32 Tapped Rails
  • Self-squaring design
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1915-3-300-16
Width21.5"
Depth12"
Height31.13"
Weight11.95 lbs.
Shipping Dimensions30" L x 10" W x 4" H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447001204
WarrantyLimited Lifetime Warranty
Shipping MethodFedEx Ground
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Instructions
0.9mb
File
cut sheet
0.9mb
