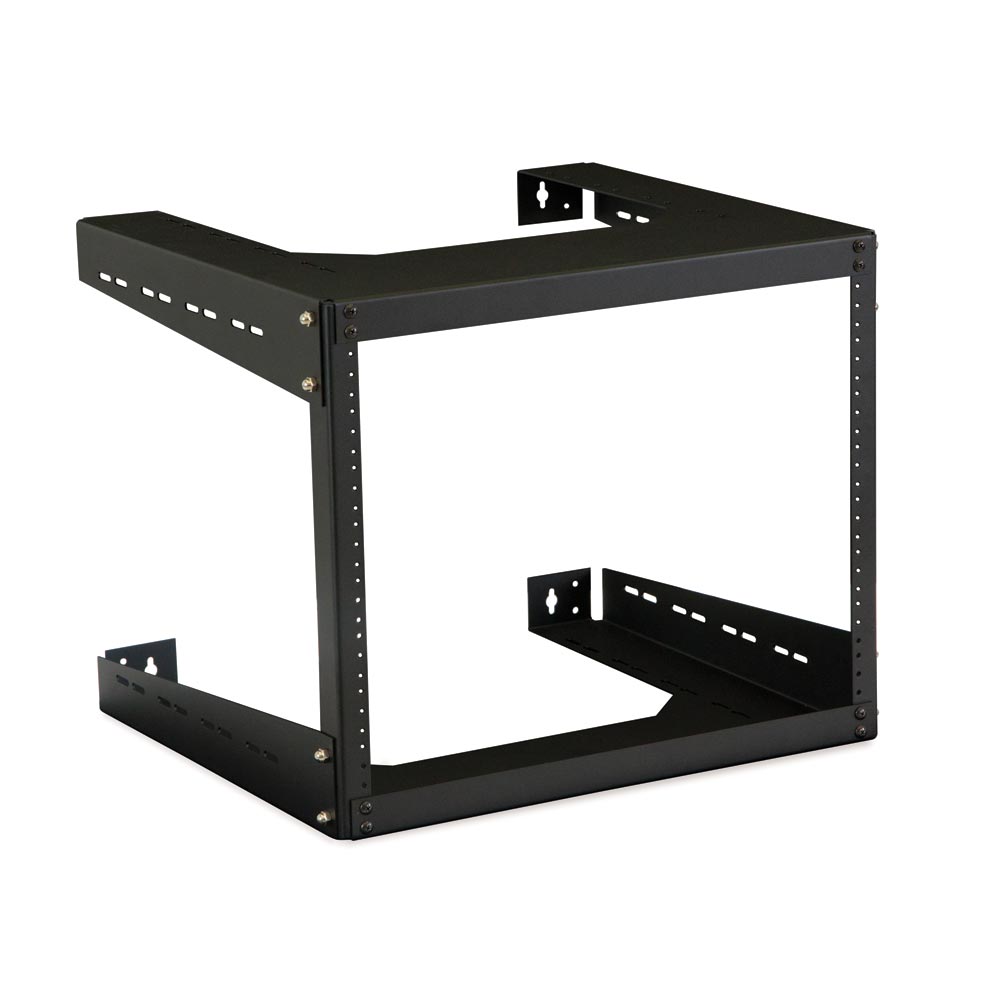

Kendall Howard - 1915-3-500-08 - 8U 18" Deep Open Wall Rack
Part number:
1915-3-500-08
Price:

The 18” Deep Open Frame Wall Rack has a feature-rich, dual frame design making it easy for IT technicians to install. This sturdy, open frame rack permits 18” of usable depth to house network switches, patch panels, A/V devices, and other non-rackmountable equipment. For convenient cable routing in and around the installed equipment, use any of the cable lacing points found on the top and bottom of this 2-piece open wall rack. The 18” Deep Open Frame Wall Rack is sleek, with a simplistic design, making it a strong and durable solution for your next network system.



Two-Piece, Knockdown Design:

The 18” Deep Open Frame Wall Rack includes two universal top and bottom frames and two universal rails that when mounted together, form a rugged and reliable network solution.



Cable Lacing Points:

The top and bottom of the 18” Deep Open Frame Wall Rack feature cable lacing points making it easy to install, route, and manage network cables.



Quick Assembly:

By using a crescent wrench and a Philips head screwdriver or drill, within minutes your 18” Deep Open Frame Wall Rack will be ready to install on the wall.



Features:

  • Two-piece design
  • 18” usable depth
  • 10-32 tapped rails
  • Includes 25 rack screws
  • Ships knockdown
  • 130 lb. weight capacity
  • 19” EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1915-3-500-08
Width20.04
Depth18.10
Height15.88
Weight19.00 lbs.
Shipping Dimensions21” L x 30” W x 4” H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447005691
WarrantyLimited Lifetime Warranty
Shipping MethodFedEx Ground
TAA CompliantYes
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
cut sheet
1mb
File
Instructions
0.3mb
