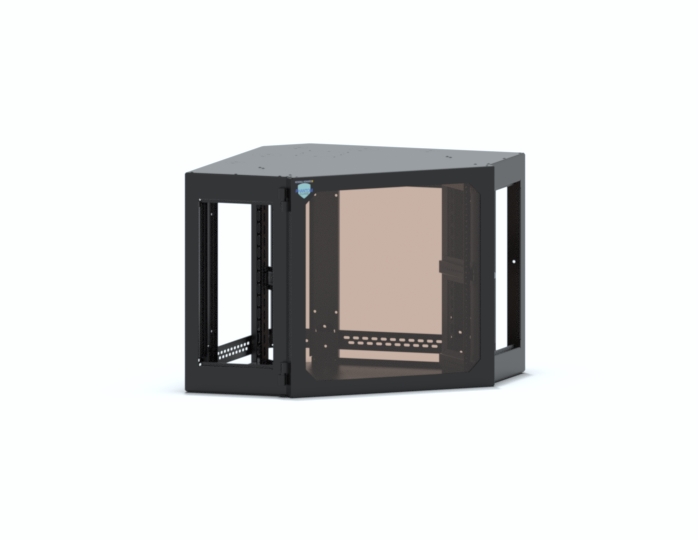

The Kendall Howard Phantom Class® 12U Corner Wall Mount Cabinet is truly unlike any other rack on the market. It is the first and only EIA compliant wall mounted equipment rack that can mount in the corner of the room. The Phantom Class® Corner Wall Mount Cabinet is so innovative with a one-of-a-kind design that we have been awarded a patent for this product. Imagine the ability to mount equipment in schoolrooms, offices or utility rooms without taking up valuable wall space. Saving space means saving time and money.
Geometrically merges itself into the environment saving space, opening up walkways, and improving the overall flow and footprint of the room.
Because of its ability to mount in the corner, its sleek design allows your equipment to be monitored from virtually anywhere in the room.
We understand that every installation is different and brings with it its own challenges. It is because of this that we have included a brilliantly engineered mounting system that allows the cabinet to be installed by just one person while still maintaining a 650 lb. load capacity.
Complements the already user-friendly design by allowing access to the healthy 18″ mounting capacity for maintenance or changes.
Simple lift-off capability can be left or right mounted for a universal solution that can be tailored to each user’s specific needs.
As an added feature, we have created an open back design allowing cables to be easily fed through the wall, terminated, and managed prior to hanging the cabinet.
To top it all off, we have added laser knockouts for fans and conduit in the top and bottom panels making it a breeze to configure for any application or environment.
Features:
- 17.5" usable depth, 27" actual depth
- Adjustable 10-32 tapped rails
- Smoked acrylic front door
- 650 lb. load capacity
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
- PATENT 8,894,161; US D672,342
| Part Number | 1915-3-700-12 |
| Width | 27.18" |
| Depth | 27.18" |
| Height | 22.5" |
| Weight | 78.00 lbs. |
| Shipping Dimensions | 28.25" L x 28.25" W x 22.75" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447002256 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | LTL Freight |
