Kendall Howard - 1916-2-100-2 - 2U V-Rack
Part number:
1916-2-100-2
Price:

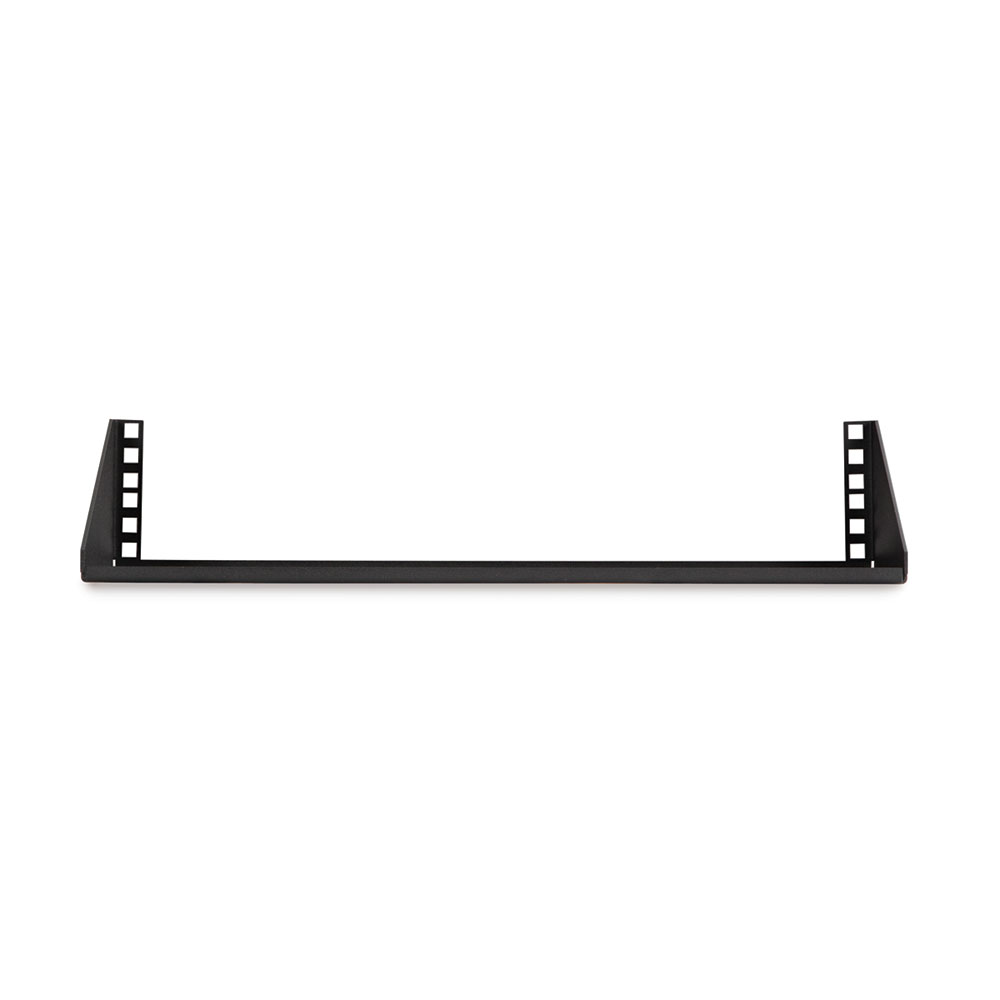

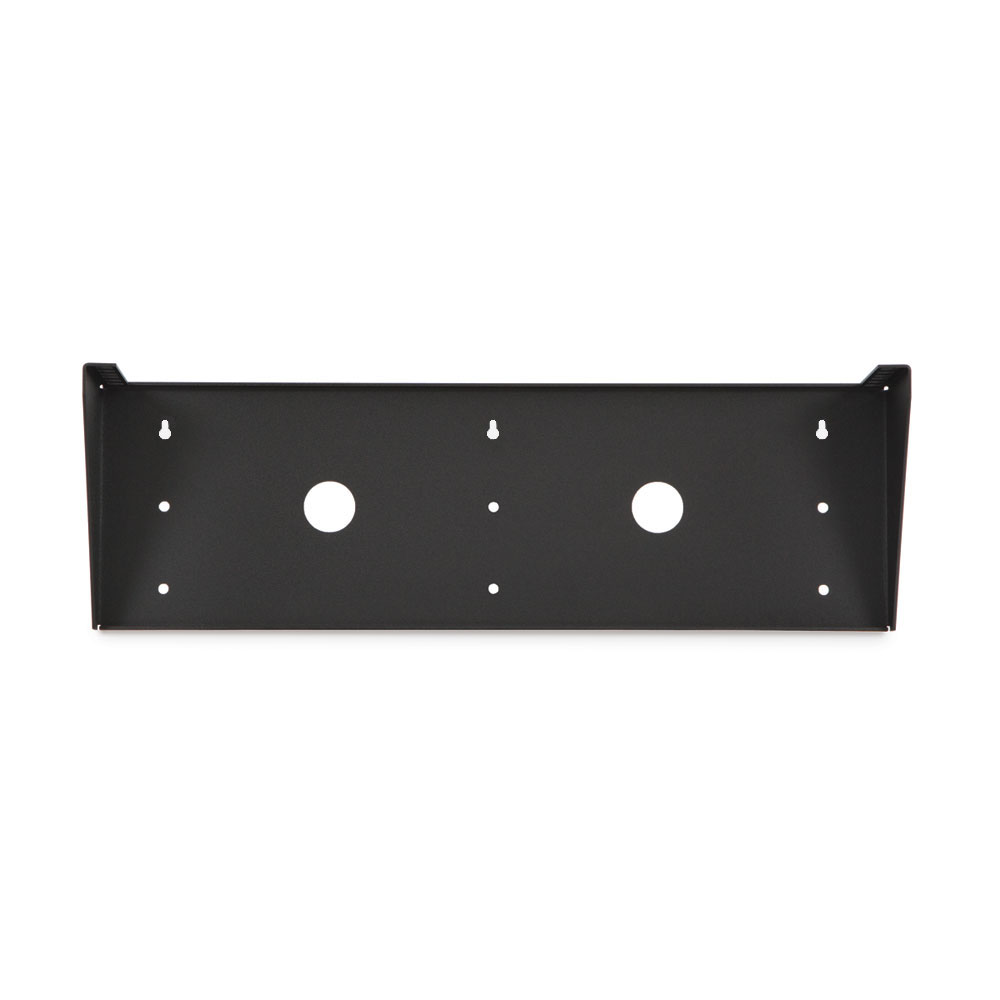

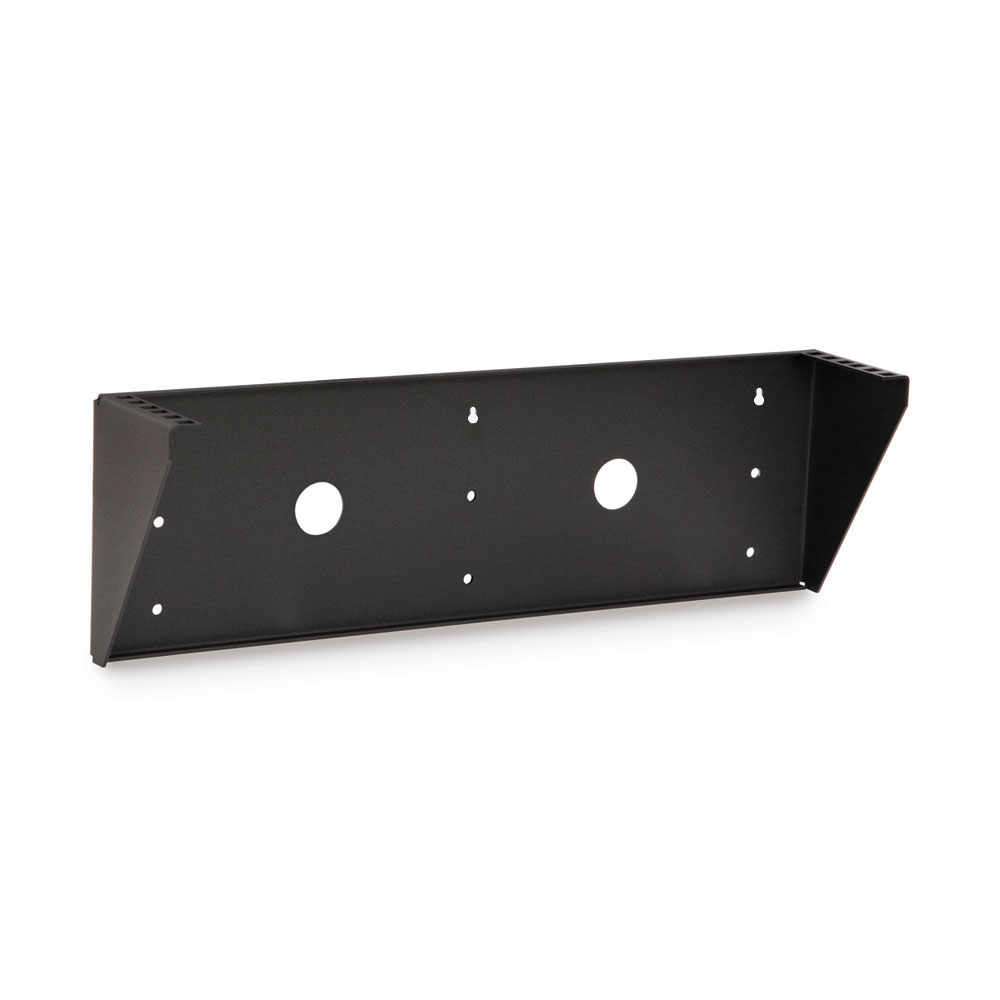

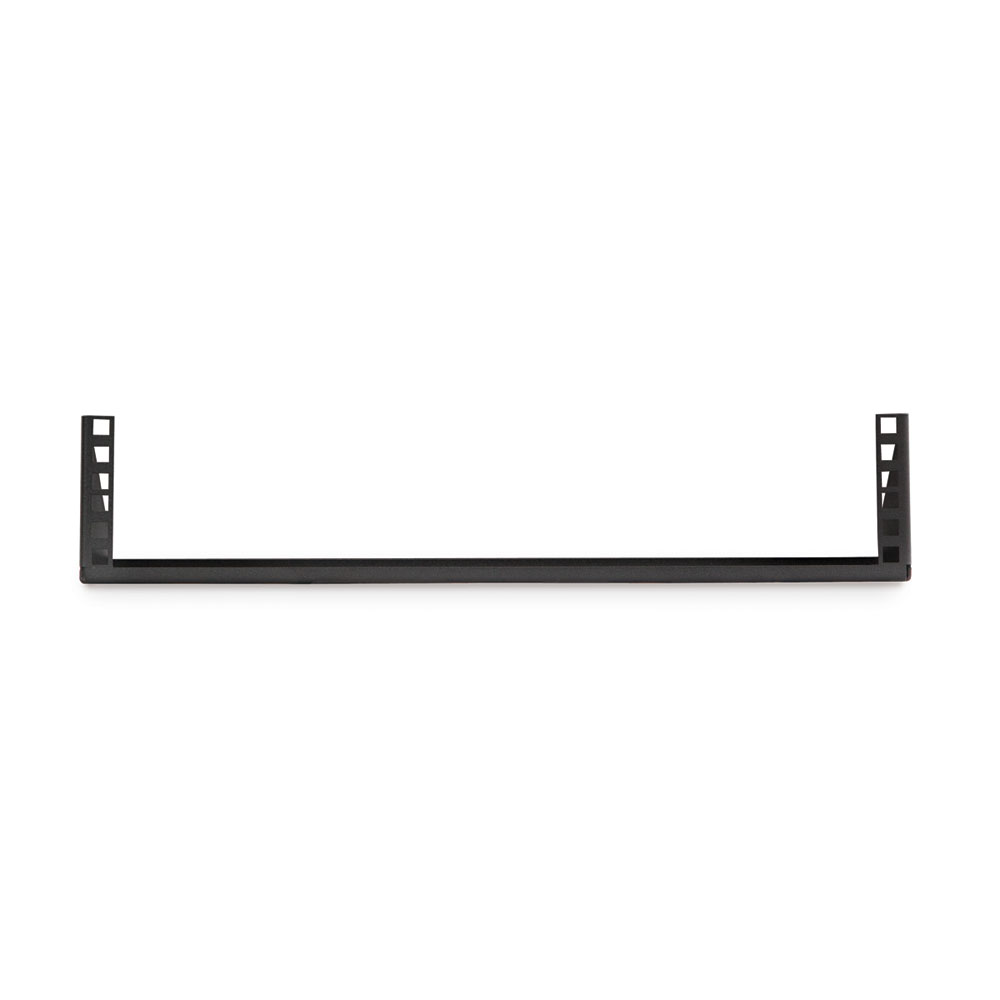

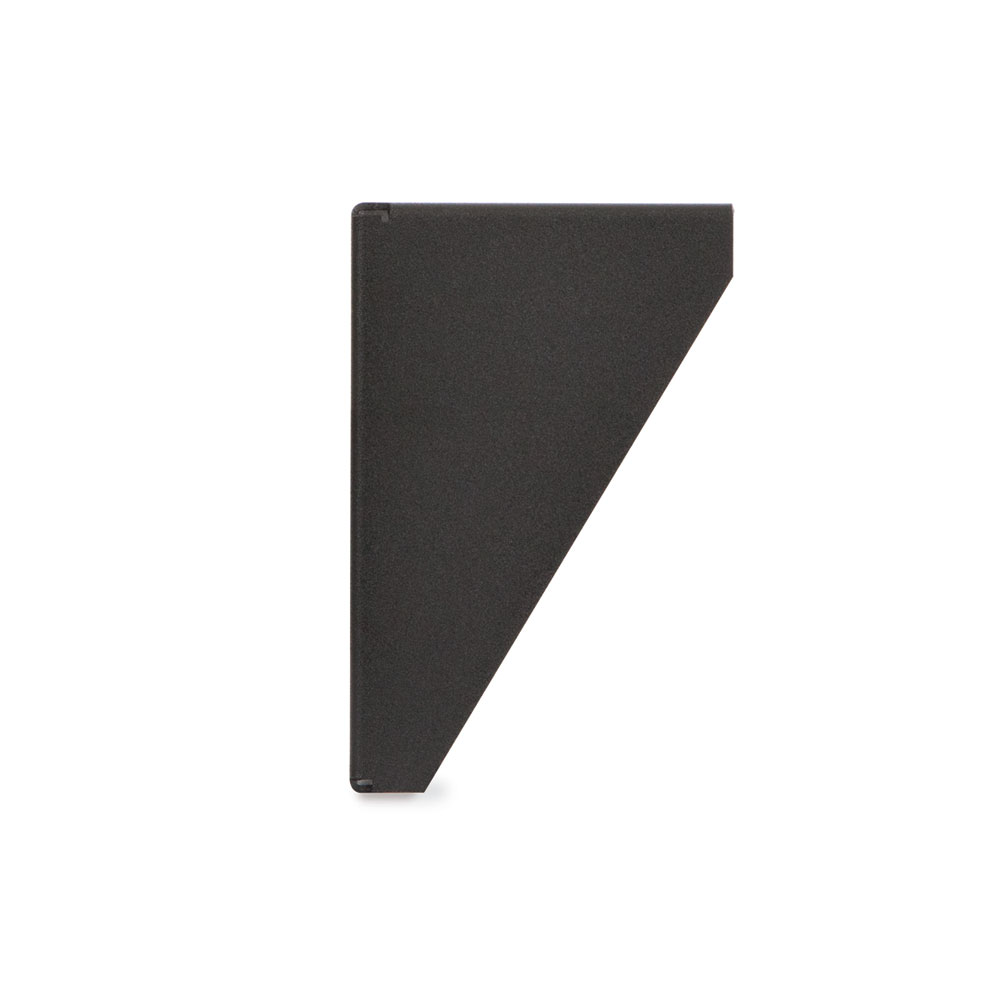

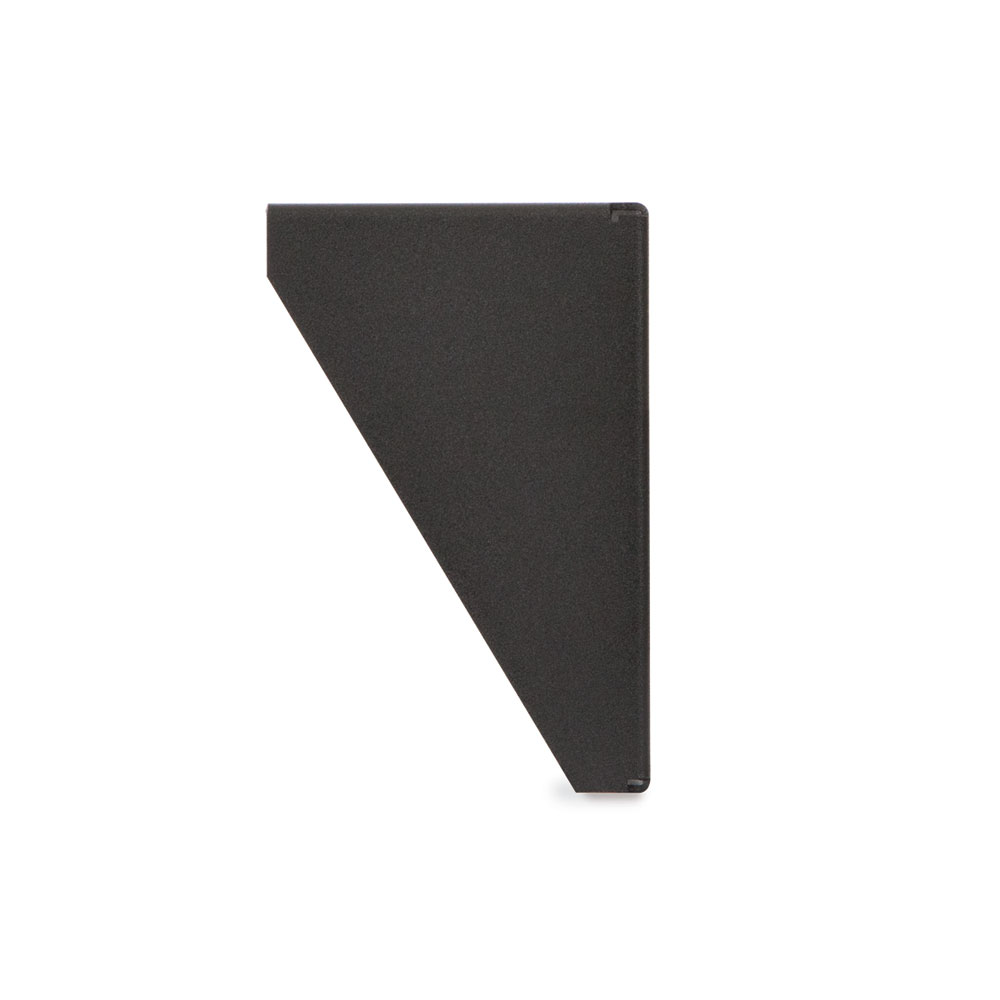

The Kendall Howard 2U V-Rack makes mounting any single server or other rackmountable device easy. The innovative design allows equipment to be mounted vertically or on its side, and flush against the wall. This unique mounting style provides users more versatility on where they can place their products while saving them space.



Low Profile Design:

The V-Rack sticks out less than 4″ from the wall! Mounting equipment like this is perfect for applications where space is at a premium.



No Depth Restrictions:

The open design allows you to install servers, switches, and other network equipment regardless of depth.



Multiple Uses:

Designed to mount to the wall, under a desk or any surface to provide a 19″ EIA compliant rail system where needed. Users needing a 4-point mounting system can effectively do so by using two V-Rack systems.



Features:

  • Does not include hardware - rack screws sold separately
  • Low profile design
  • Universal cage nut style rails
  • No depth restrictions
  • 150 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1916-2-100-2
Width19.25"
Depth3.89"
Height6"
Weight4.05 lbs.
Shipping Dimensions21" L x 8" W x 6.25" H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447001037
WarrantyLimited Lifetime Warranty
Shipping MethodFedEx Ground
Name
Description
Size
Downloads
File
Datasheet
0mb
File
Instructions
0.3mb
File
cut sheet
0.8mb
