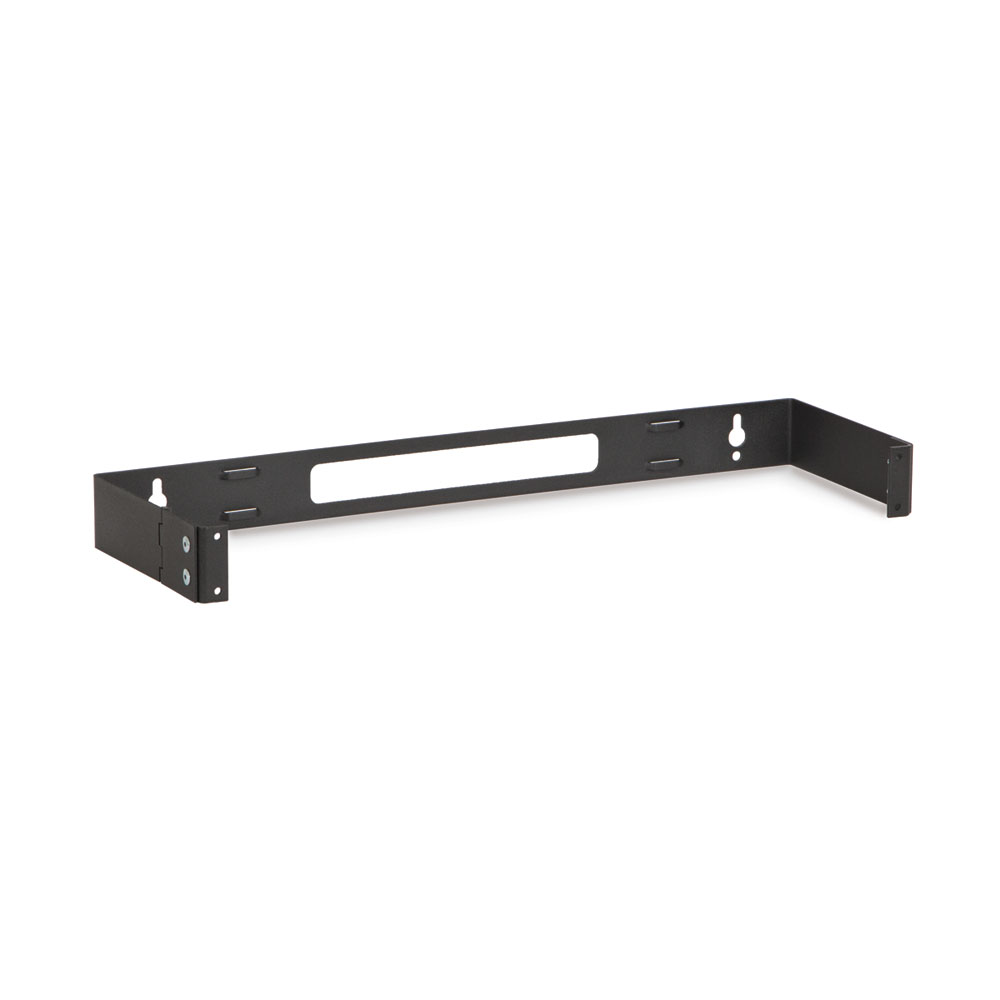

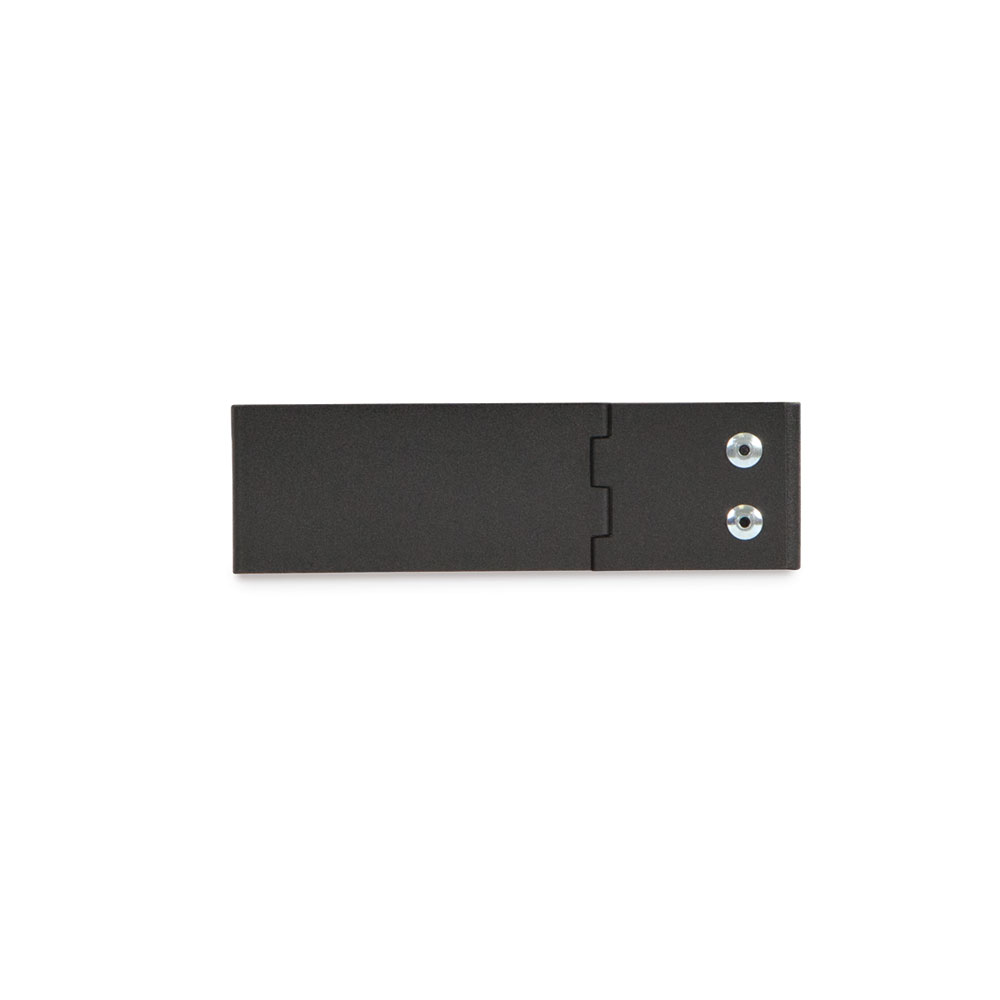

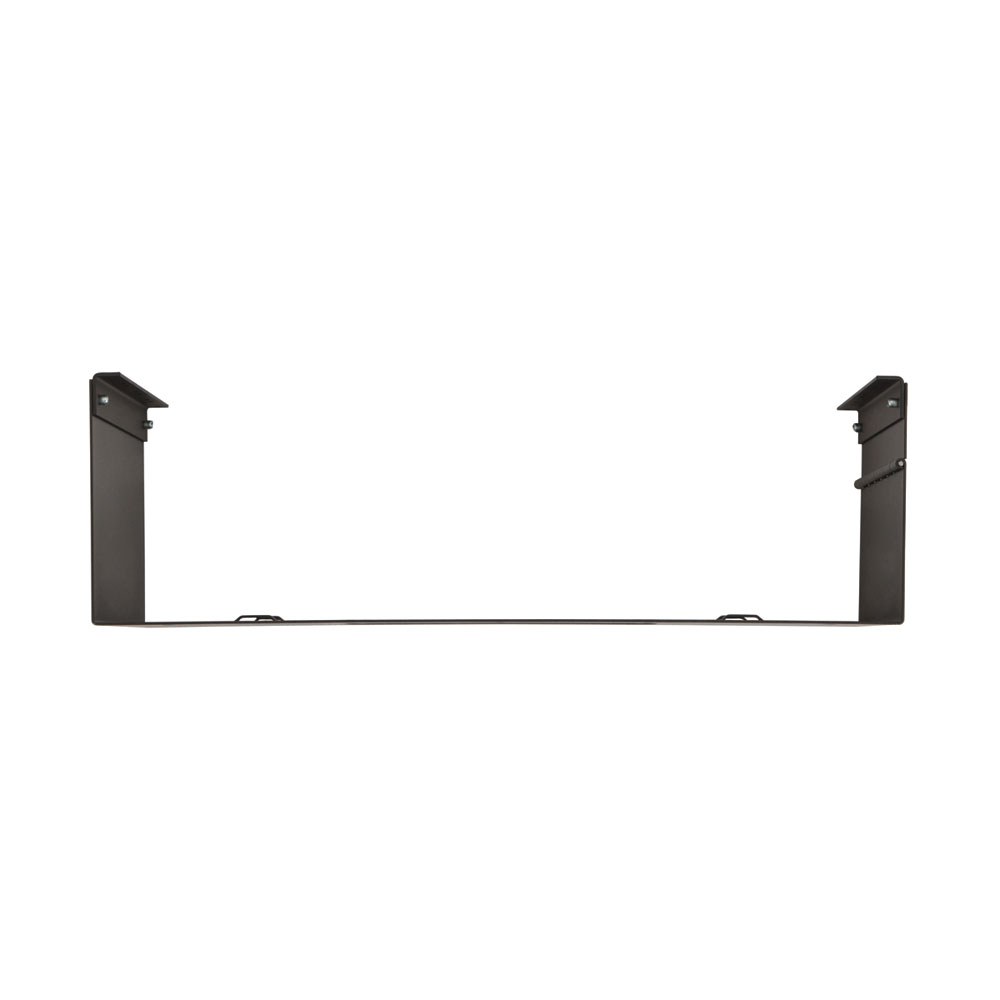

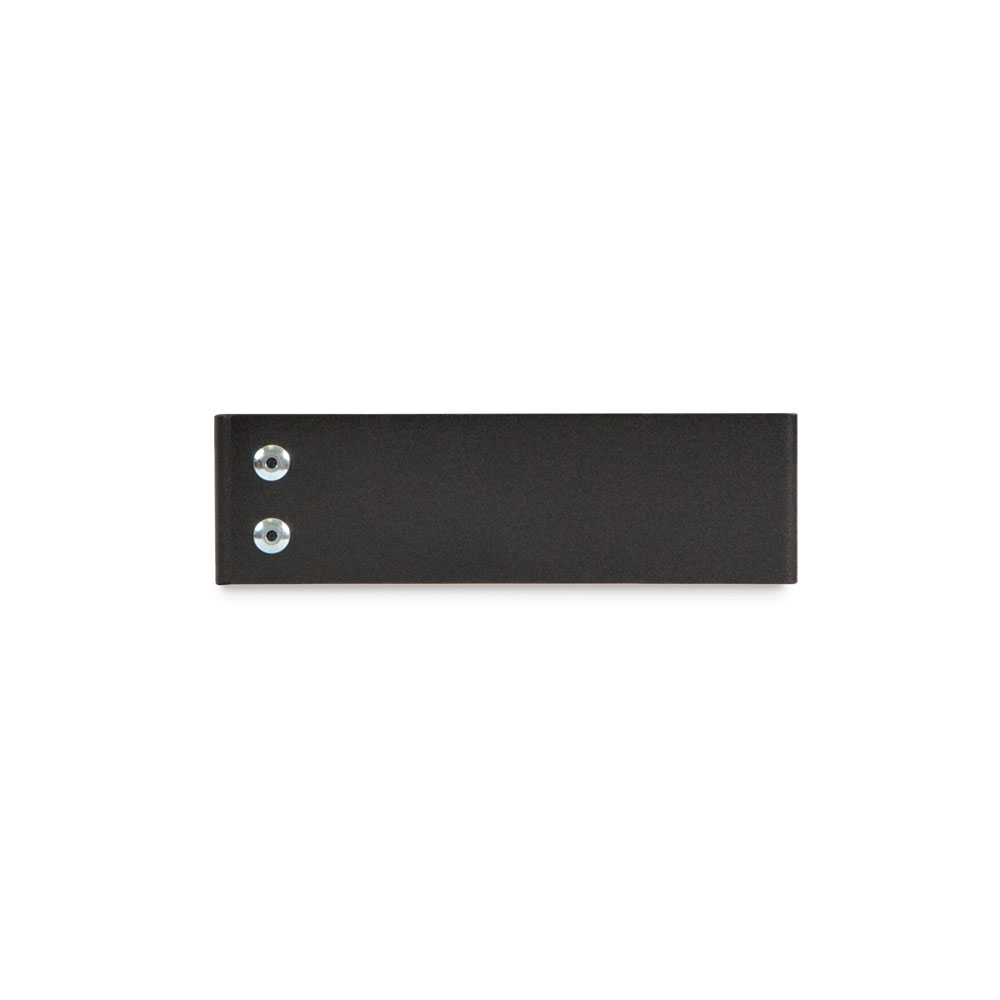

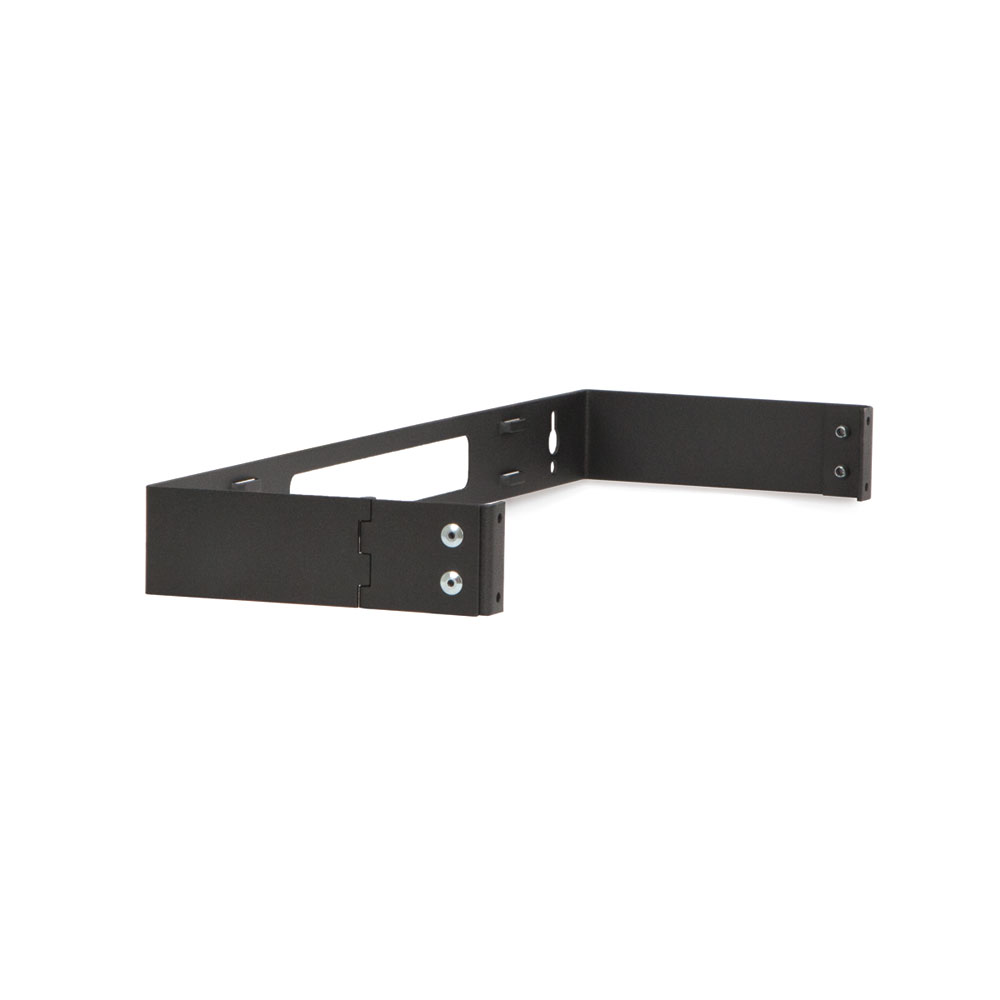

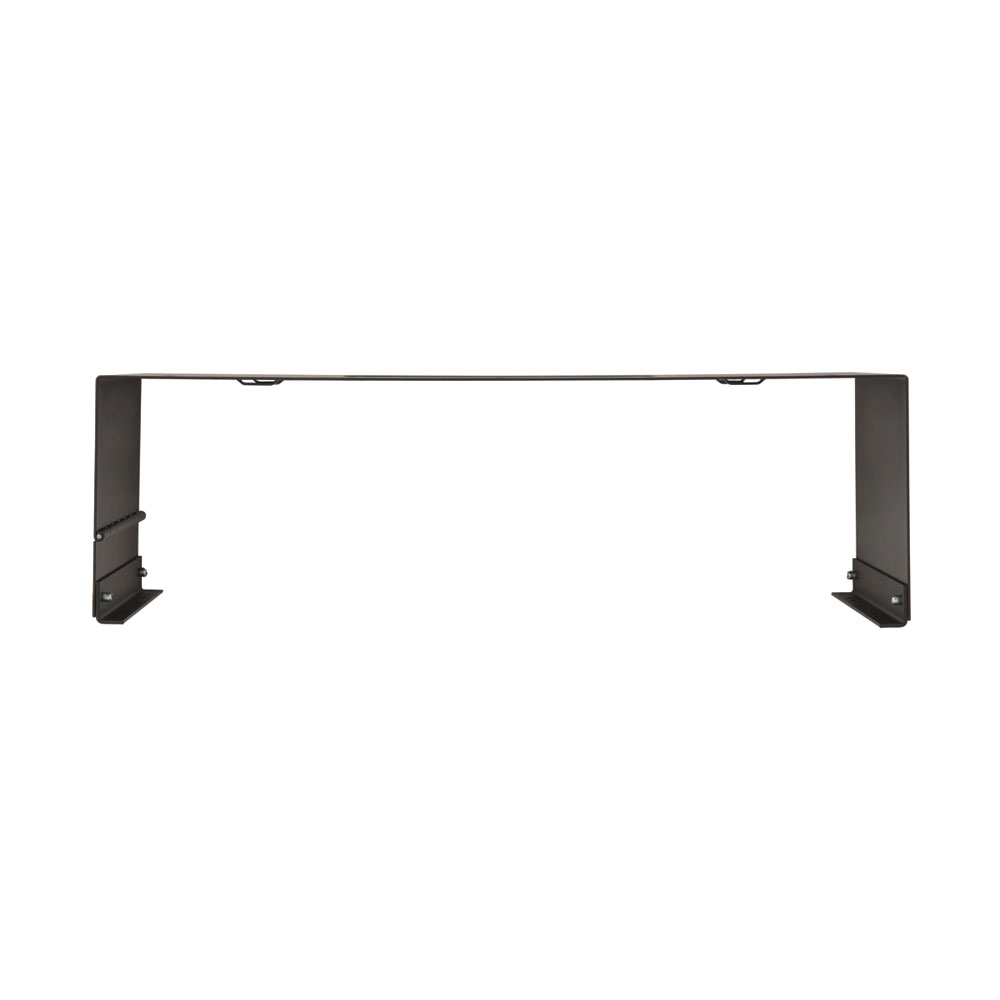

The Kendall Howard 1U Patch Panel Bracket makes mounting patch panels and/or other shallow equipment simple and easy. The unique hinged design allows installed equipment to swing to the left or right 180 degrees for convenient access to the back, with a 6" usable depth. These hinged wall mount systems are a fantastic alternative to larger, more expensive solutions that end up wasting space.
The hinged design delivers the functionality of a swing-out rack without the added cost. Perfect for small business or home office applications.
The patch panel wall mount brackets are packed with built-in cable tie downs and access holes, ensuring your installation is neat, organized, and ready for action.
Once the bracket is mounted to the wall, simply mount the device to the hinged side of the bracket, swing it open, and terminate the cables. When completed, close the bracket and secure to the other side of the bracket. (Mounting hardware and rack screws not included.)
Features:
- 6" usable depth
- 180 degree swing-out
- 10-32 tapped rails (screws not included)
- 19" EIA compliant
- Made in the USA
- Limited Lifetime Warranty
| Part Number | 1916-3-200-01 |
| Width | 19.25" |
| Depth | 6" |
| Height | 1.75" |
| Weight | 1.60 lbs. |
| Shipping Dimensions | 20" L x 3" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447001228 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
