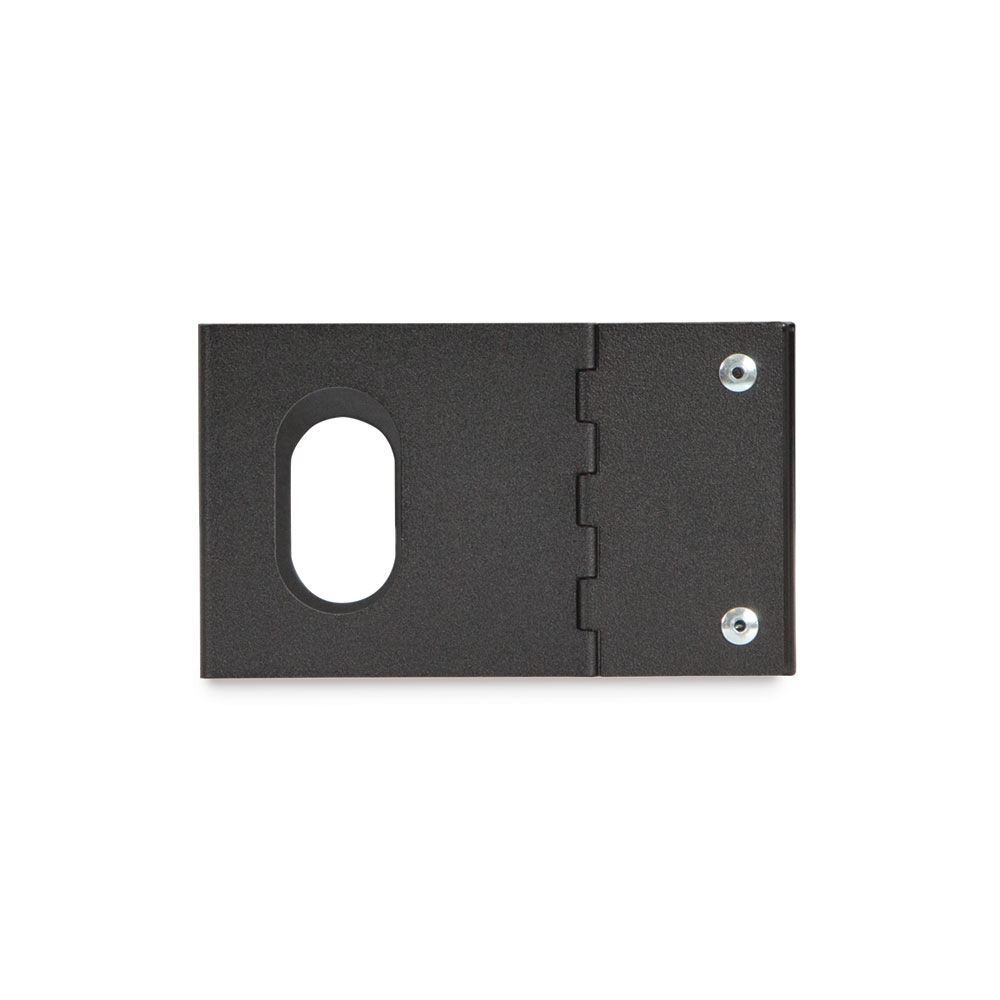

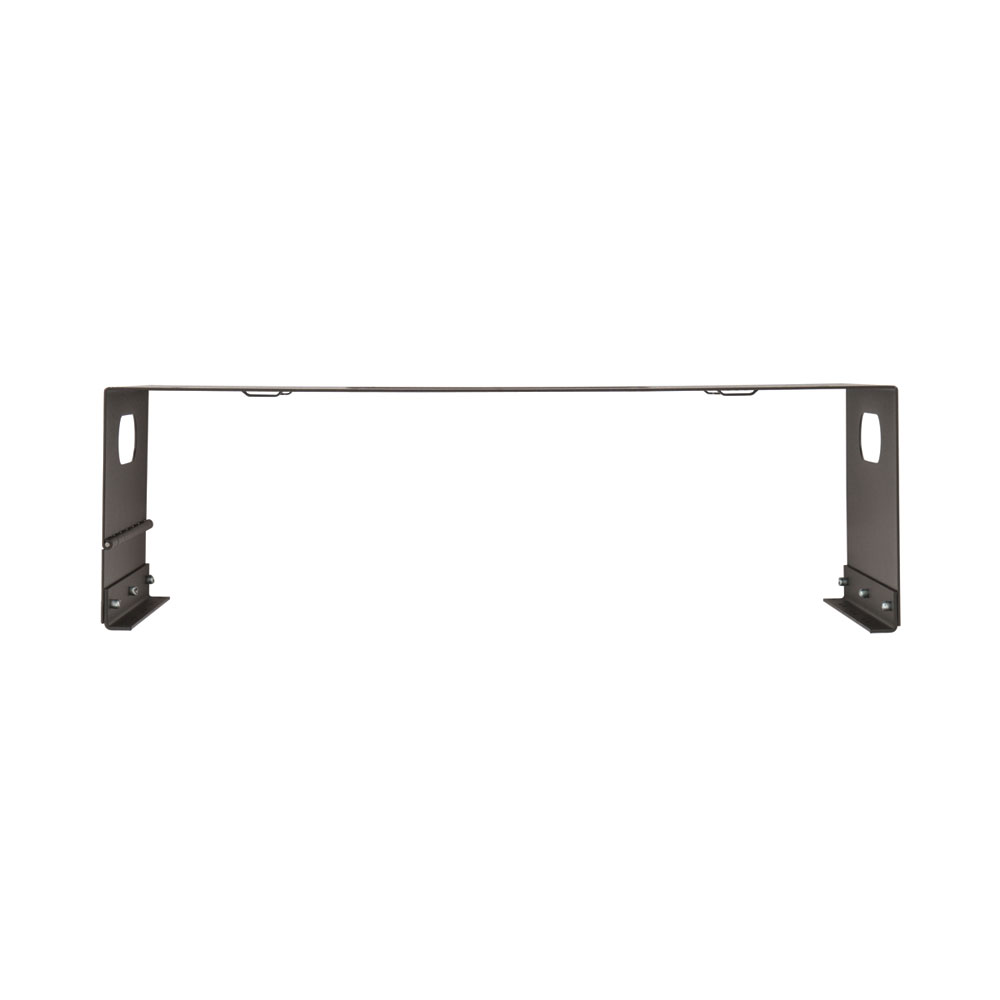

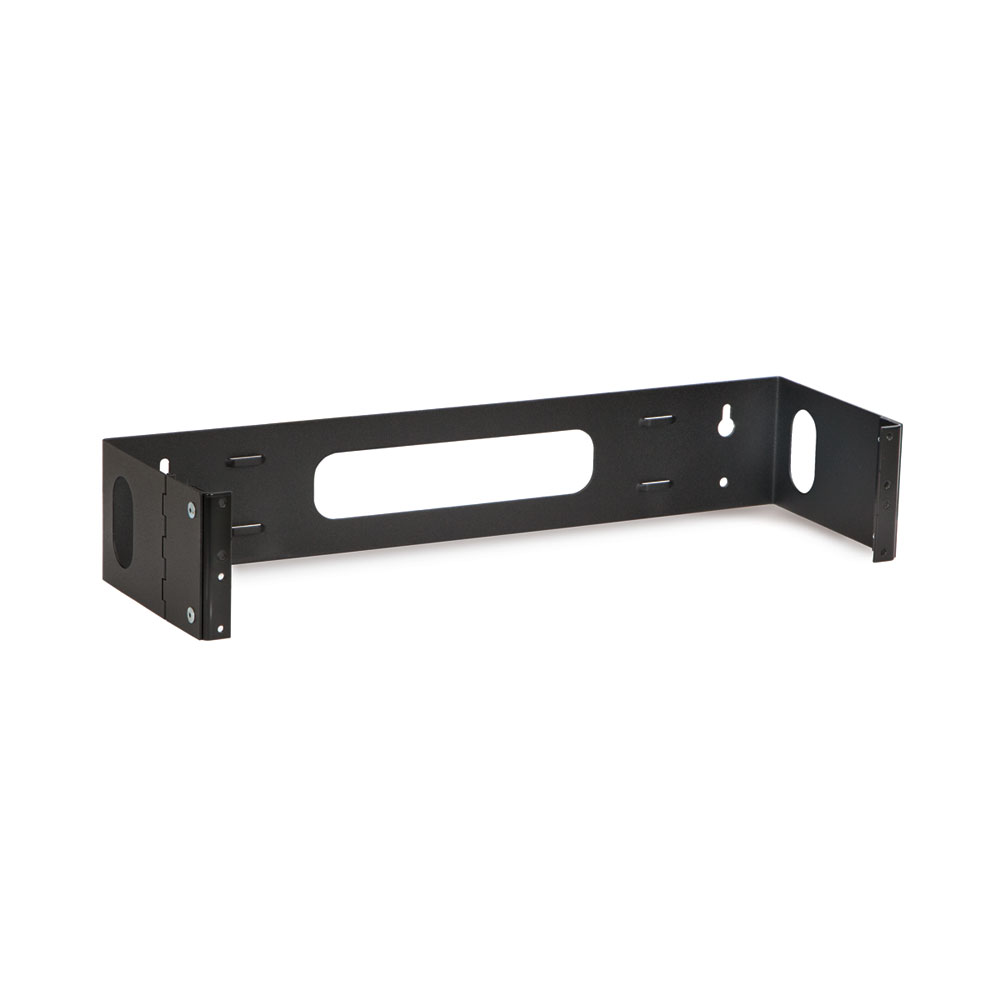

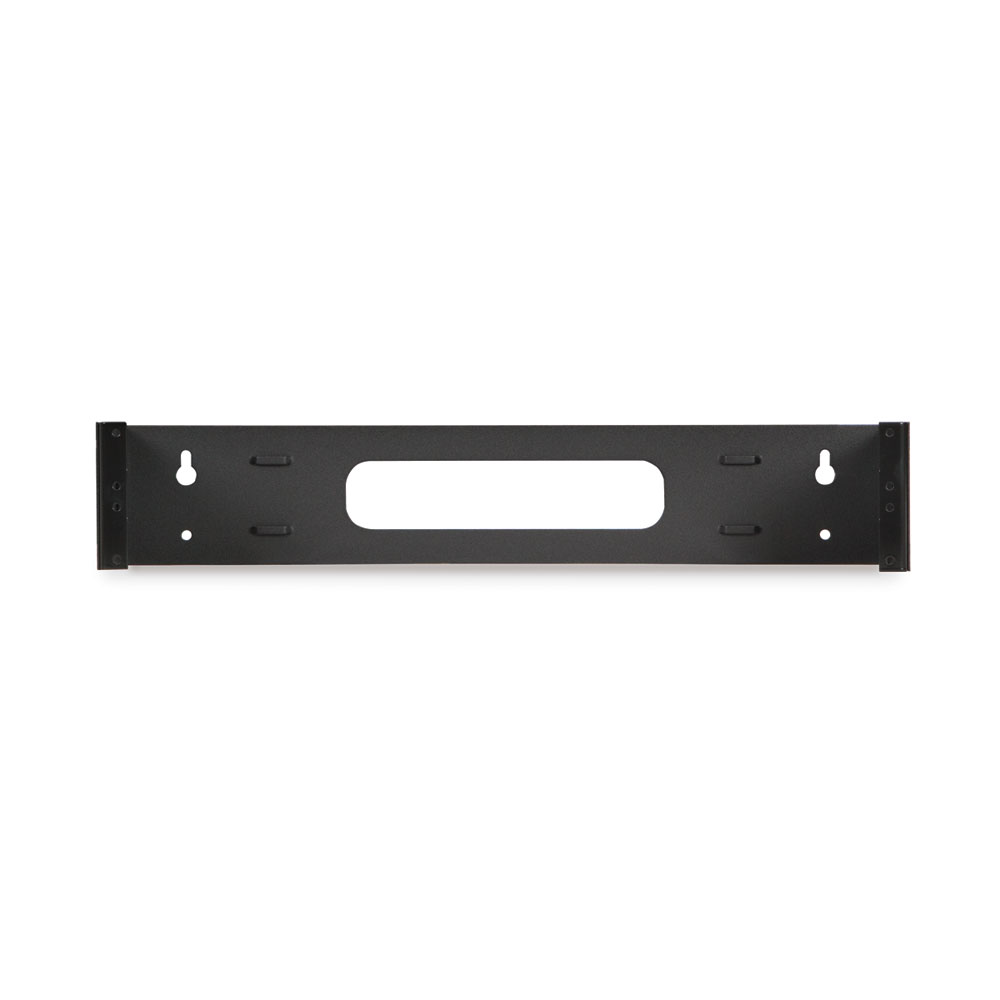

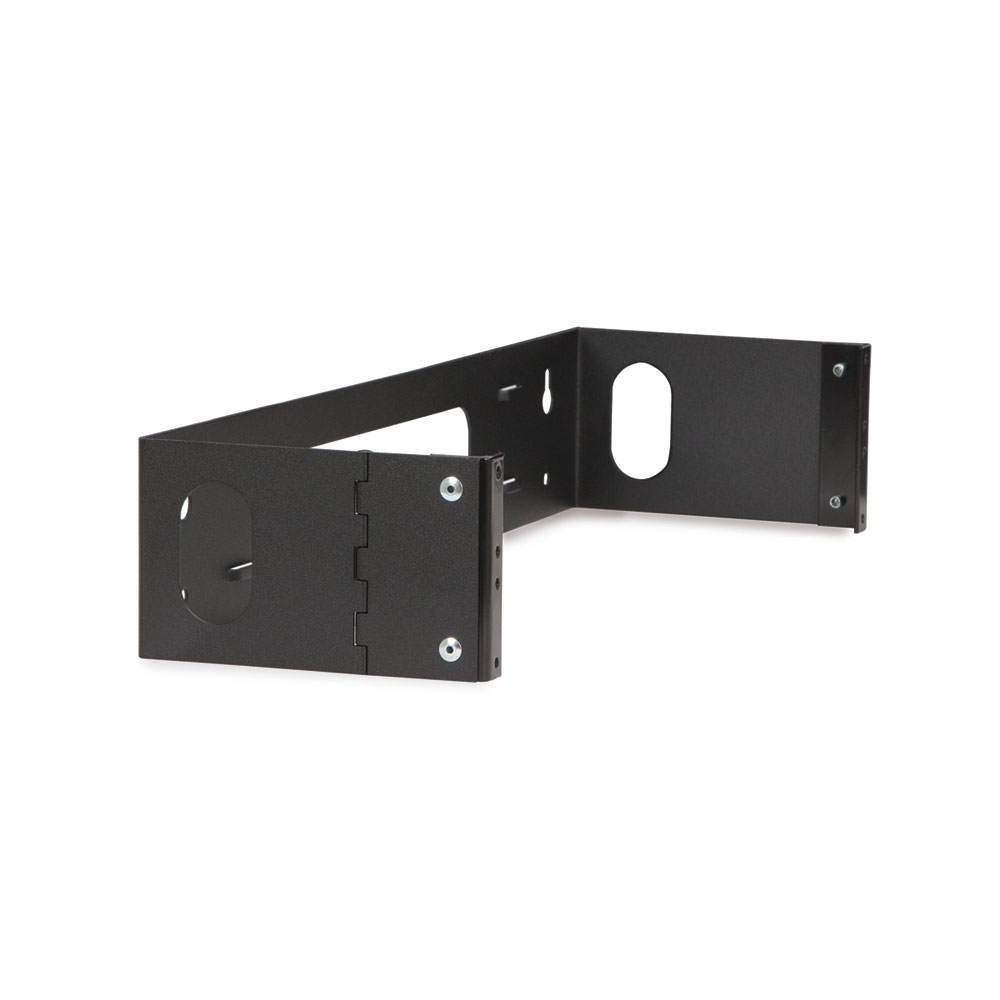

Kendall Howard Patch Panel Brackets make mounting patch panels or shallow equipment simple and easy. When there is no need for a wall mount rack or cabinet, Patch Panel Brackets are a great low cost alternative.
The hinged design delivers the functionality of a swing-out rack without the added cost. Perfect for small business or home office applications.
The patch panel wall mount brackets are packed with built-in cable tie downs and access holes, ensuring your installation is neat, organized, and ready for action.
Once the bracket is mounted to the wall, simply mount the device to the hinged side of the bracket, swing it open, and terminate the cables. When completed, close the bracket and secure to the other side of the bracket. (Mounting hardware and rack screws not included.)
Features:
- 180 degree swing-out
- 6" maximum depth
- 19" EIA compliant
- Requires 10-32 Rack Screws
- Made in the USA
- Limited Lifetime Warranty
| Part Number | 1916-3-200-02 |
| Width | 19.25" |
| Depth | 6" |
| Height | 3.5" |
| Weight | 3.00 lbs. |
| Shipping Dimensions | 20" L x 4" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| UPC | 879447001235 |
| Warranty | Limited Lifetime Warranty |
| Shipping Method | FedEx Ground |
