Kendall Howard - 1932-3-001-08 - 8U Compact Series SOHO 30" Rack
Part number:
1932-3-001-08
Price:

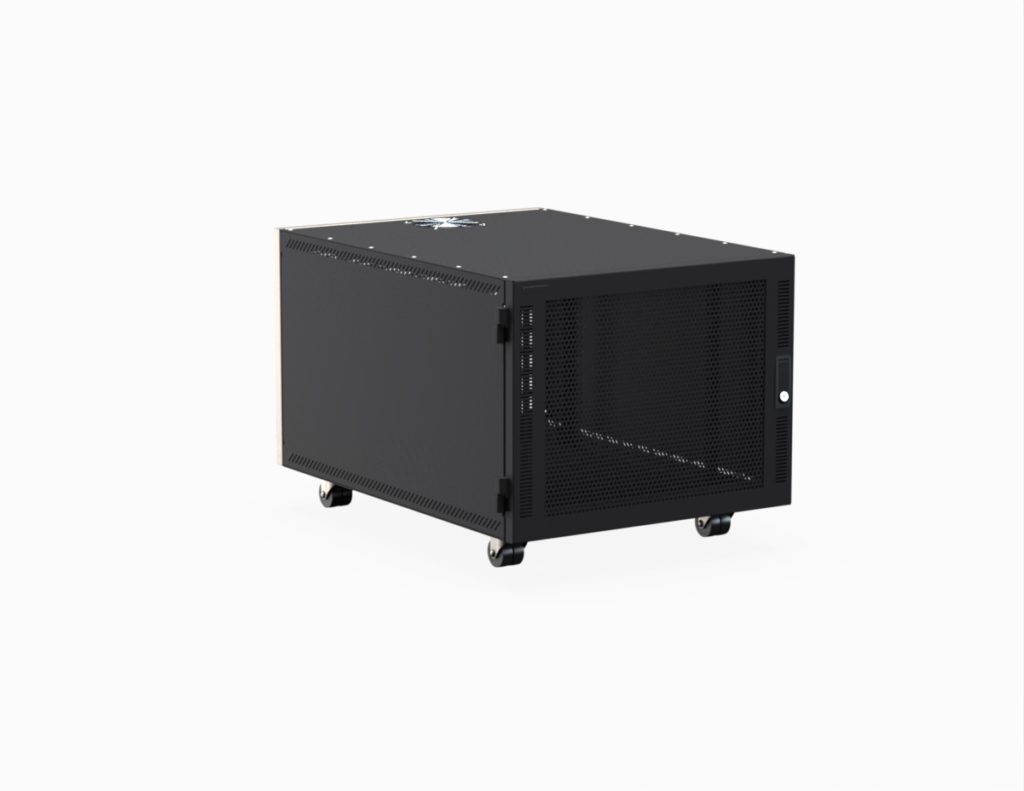

The 8U Compact Series SOHO Cabinet is a sleek and robust server cabinet specially designed for the small business, home office, or IT professional who wants better than just "good enough". The small profile cabinet easily rolls under a work surface, tucks away in a closet or squeezes into the places full size racks cannot. Need a desk top solution? Simply remove the casters and it can be set on any flat surface.



Quality, Secure Enclosure:

The quality construction provides a safe, secure cabinet to store expensive equipment and devices. The locking front and rear doors prevent unauthorized use, especially helpful for network configurations that are in an open office environment.



Lift-Off Front and Rear Doors:

Unique hinge system allows the front and rear doors to be easily removed when installing or performing maintenance on equipment such as servers, network switches, battery backups, and more.



Mobility:

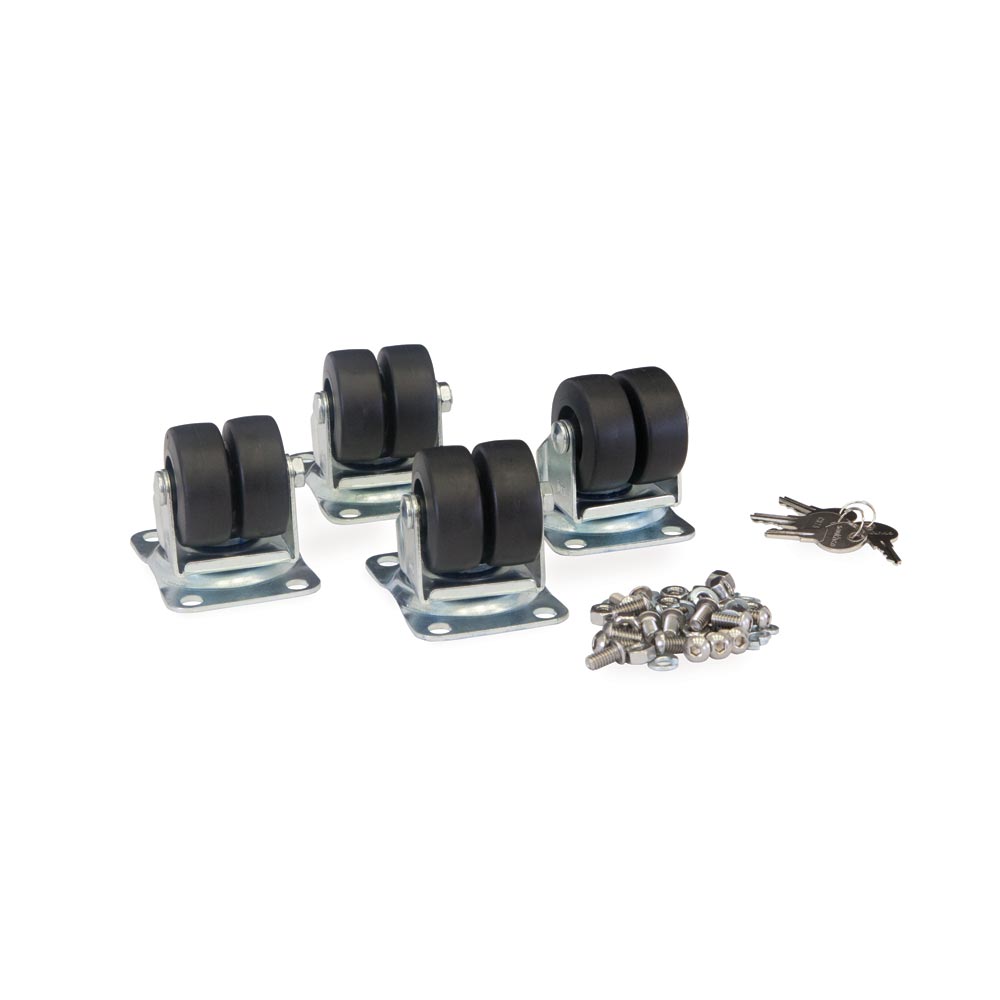

Included caster kit creates a mobile racking system perfect for home, small office or studio environments.



Adjustable Rails:

Universal cage nut style rails can be adjusted from 3″ to 28″ deep to accommodate various depth equipment.



Cooling/Ventilation:

Perforated doors, vented side panels, and included 78 cfm fan promote air flow and prevent hot spots.



Cable Routing Slot:

The 10″ x 2.25″ cut out on the bottom rear of the cabinet provides a cable entrance point for network, telecom and/or power cables.





Features:

  • Locking, lift off front and rear perforated doors
  • Includes casters and one 78 cfm fan and power cord
  • Two sets of adjustable cage nut style rails
  • Rails are adjustable from 3" to 28" deep
  • 400 lb. weight capacity
  • 19" EIA compliant
  • Made in the USA
  • Limited Lifetime Warranty
Part Number1932-3-001-08
Width24.44"
Depth32.25"
Height20.42"
Weight79.00 lbs.
Shipping Dimensions33" L x 26" W x 23" H
Material(s)CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447001068
WarrantyLimited Lifetime Warranty (Fan: 1-Year Warranty)
Shipping MethodLTL Freight
