Kendall Howard - 3140-3-001-01 - Linier WM Caster Base
Part number:
3140-3-001-01
Price:

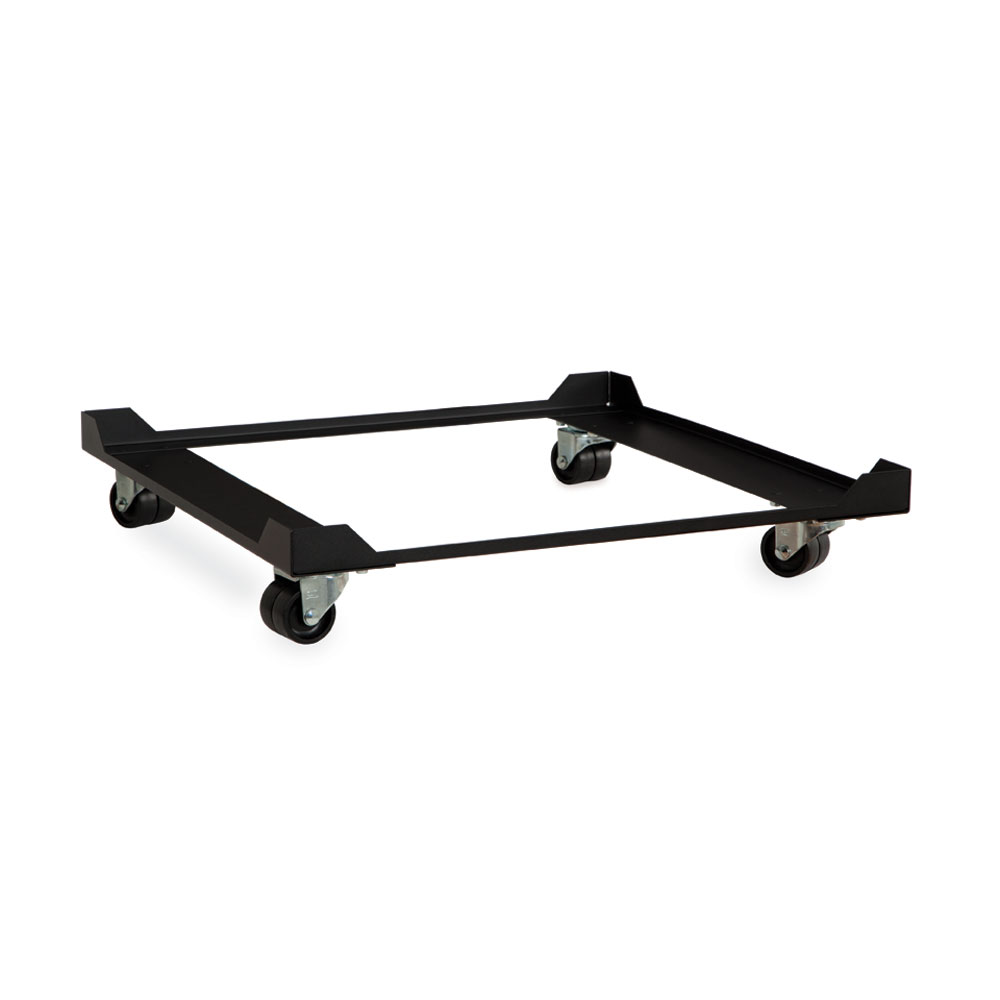

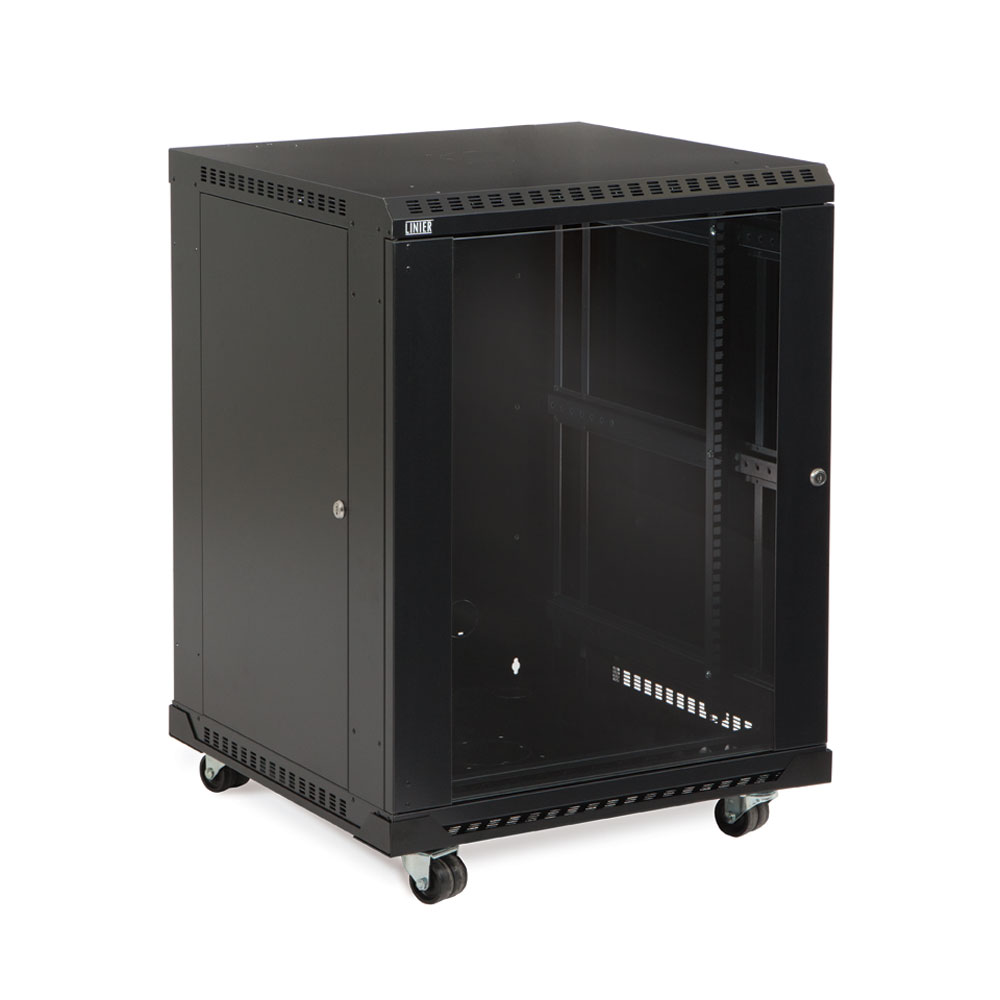

The LINIER® Caster Base provides a sturdy, mobile base that is suited to be used with any of the LINIER® Fixed Wall Mount Cabinets. The low profile base assembles in less than five minutes and adds only 2.9" in height to your cabinet. Whether you need a compact rolling cabinet to fit under a desk, or you're short on space and don't want to wall mount the unit, the LINIER® Caster Base in conjunction with a LINIER® Fixed Wall Mount Cabinet provides a cost-conscious, mobile solution.

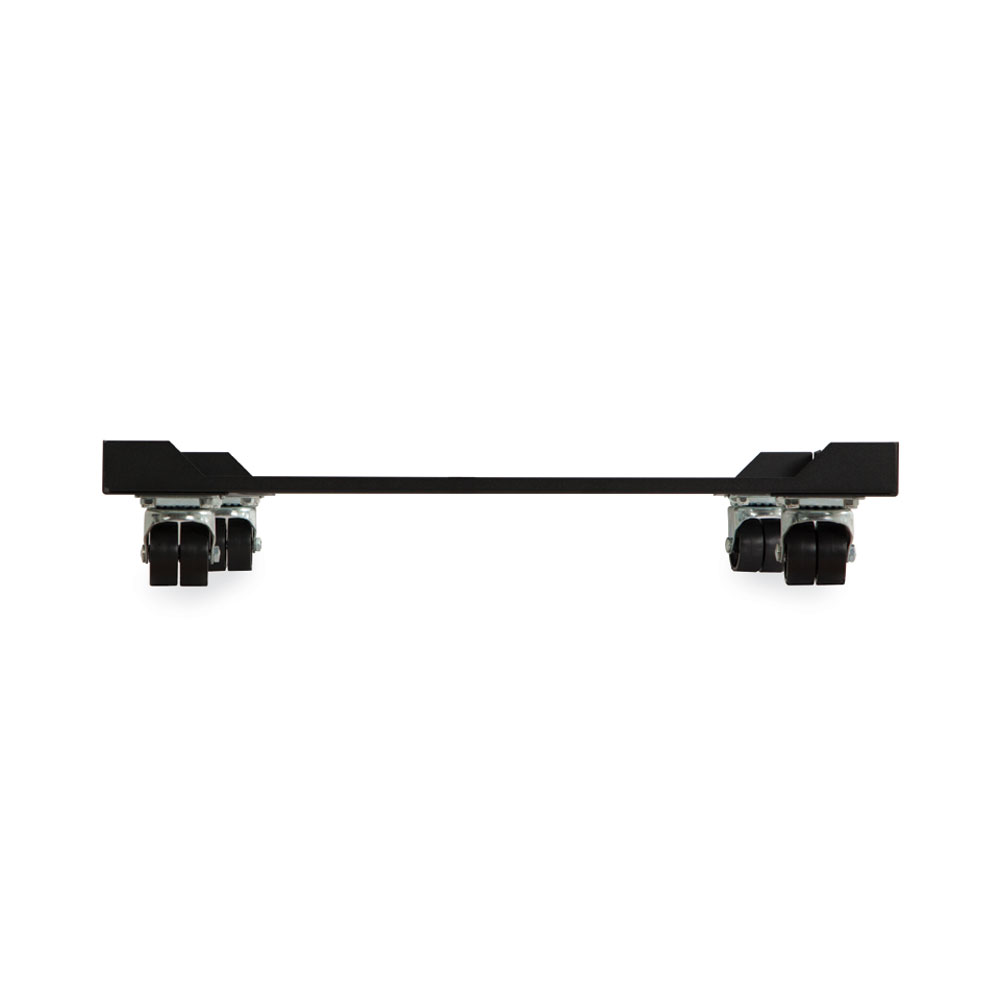

Low Profile Swivel Casters

The 2″ dual wheel casters swivel 360 degrees providing easy maneuverability.



Easy to Assemble

The knockdown design reduces shipping costs and takes less than five minutes to assemble.



Polypropylene Wheels

The polypropylene material is perfect for all flooring types as it will not scuff or damage flooring during movement.

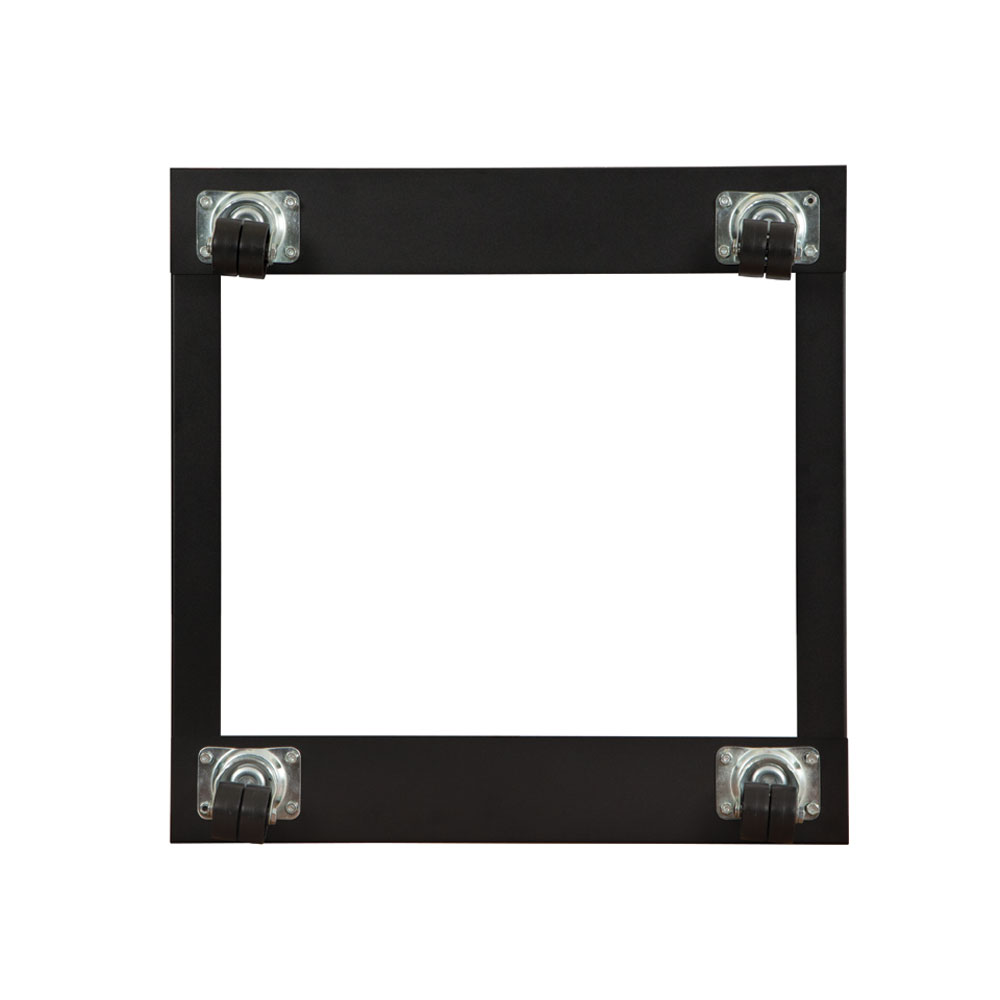

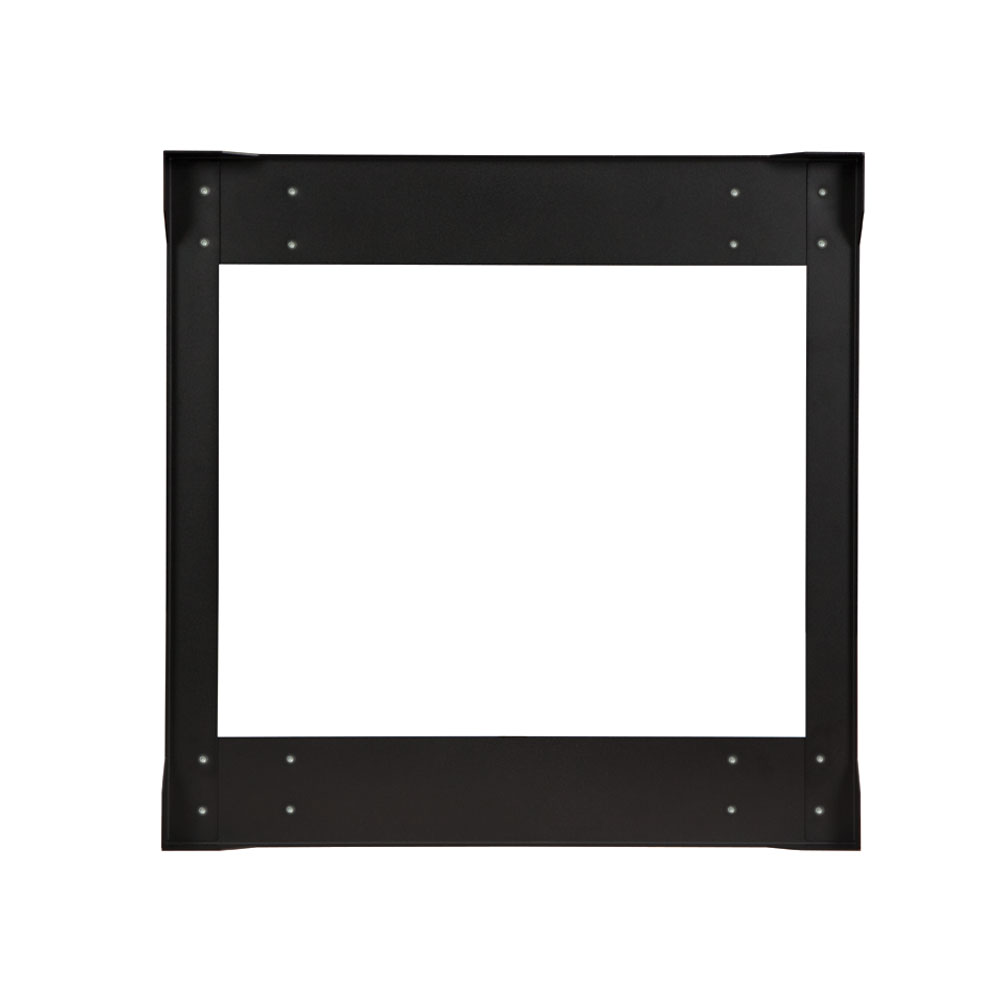

Open Design

The large opening in the bottom allows access to the laser knockout in the bottom of the LINIER® Fixed Cabinet. This knockout can be used for cable routing or to install a Fan Assembly Kit.



Features:



  • To be used with the LINIER® Fixed Wall Mount Cabinets
  • 250 lb. weight capacity
  • Easy to assemble
  • Made in the USA
  • 5-Year Limited Warranty
Part Number3140-3-001-01
Width23.78"
Depth23.78"
Height4.88"
Weight10.00 lbs.
Shipping Dimensions8" L x 26" W x 6" H
Material(s)Base: CRS (Cold Rolled Steel)
Color/FinishBlack Powder Coated Finish
UPC879447004175
Warranty5 Year Limited Warranty
Shipping MethodFedEx Ground
Name
Description
Size
Downloads
File
Datasheet
0.1mb
