Kendall Howard - 5200-3-420-00 - LAN Station Wooden Shelf
Part number:
5200-3-420-00
Price:

The Kendall Howard reversible shelf offers two installation options. The shelf can either be installed at a level position or flip the brackets and enjoy a 10-degree angle for optimal use. Includes an additional formed metal bracket to keep devices or papers in place in either position. Requires one accessory bar for installation.



Reversible Design

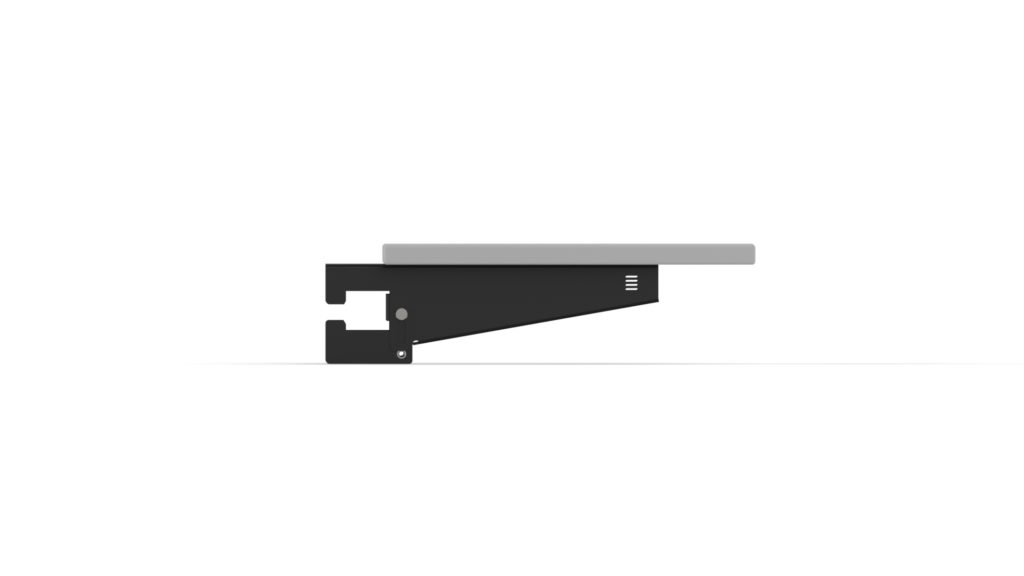

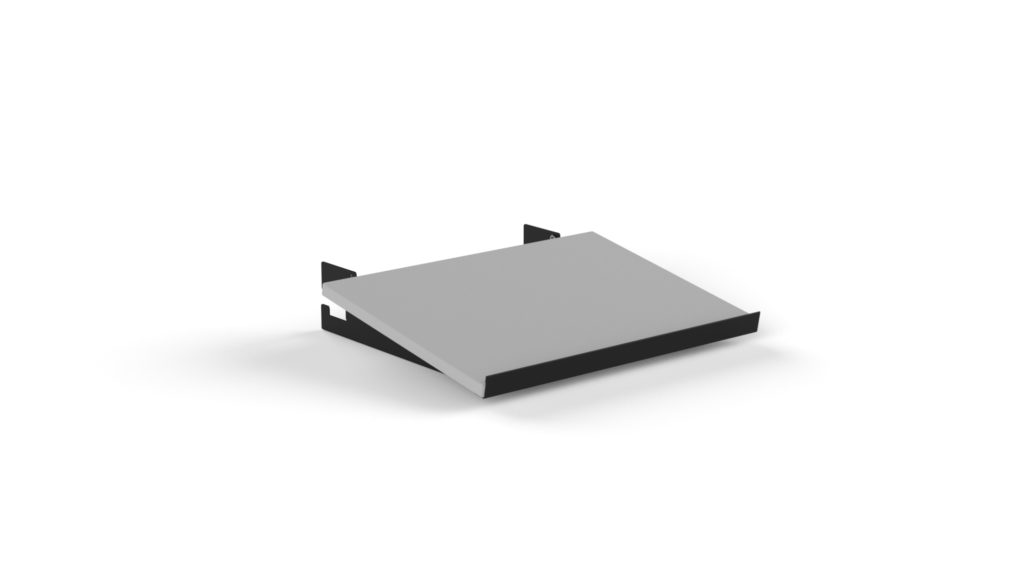

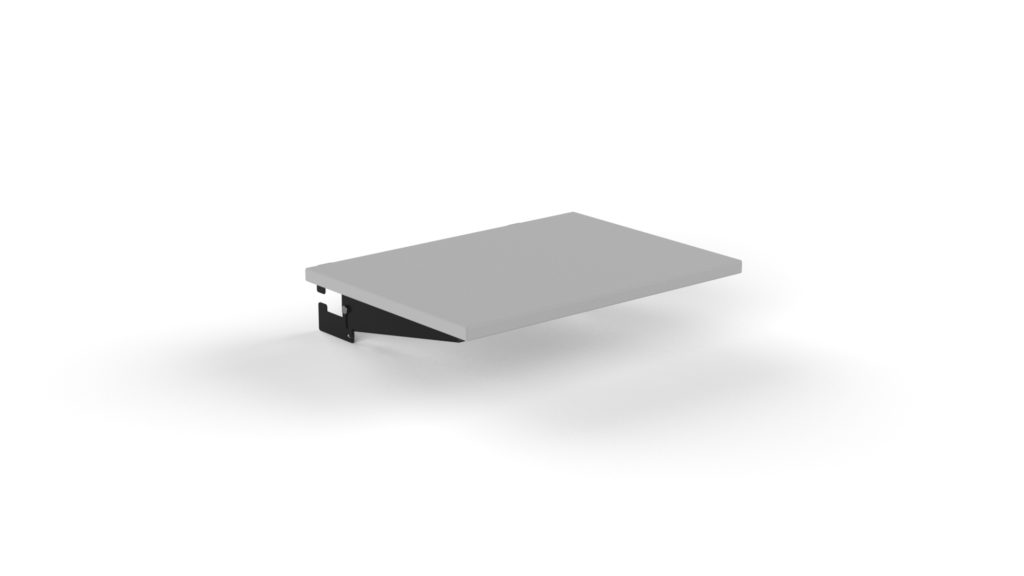

This option allows you to mount the shelf flat position or flip the brackets upside down and enjoy 10-degrees of angle for ease of use.

Lip Attachment

Includes removable stop to hold devices or paperwork in place.

Easy to install

This bin mount can be installed within minutes thanks to the hanging top bracket design and simple clamping system.



Features:



  • Weight limit 40 lbs
  • Mounting brackets can be set horizontally level or at a 10-degree downward angle
  • Made in USA
  • Shelf measures 3/4” thick
  • Mounts to Performance® and Performance Plus® Accessory bars. Requires separate purchase of one accessory bar.

Specifications

Part Number#5200-3-420-00
Width20"
Depth14"
Height1"
Weight9lbs
Shipping Dimensions24"L x 15"W x 3"H
Material(s)Cold Rolled Steel & Laminate
ColorBlack Powder Coated Finish with Folksone Gray Laminate
UPC879447006100
WarrantyLimited Lifetime
Shipping MethodFedEx Ground

What's in the Box

ItemQuantity
Wooden Shelf1
Left Shelf Bracket1
Right Shelf Bracket1
Left Shelf Clamp1
Right Shelf Clamp1
¼-20 Hex Head Screws2
¼-20 Pan Head Screws4
#8 Pan Head Screws4
Name
Description
Size
Downloads
File
Instruction
0.5mb
File
Cut Sheet
0.3mb
File
Data Sheet
0.1mb
