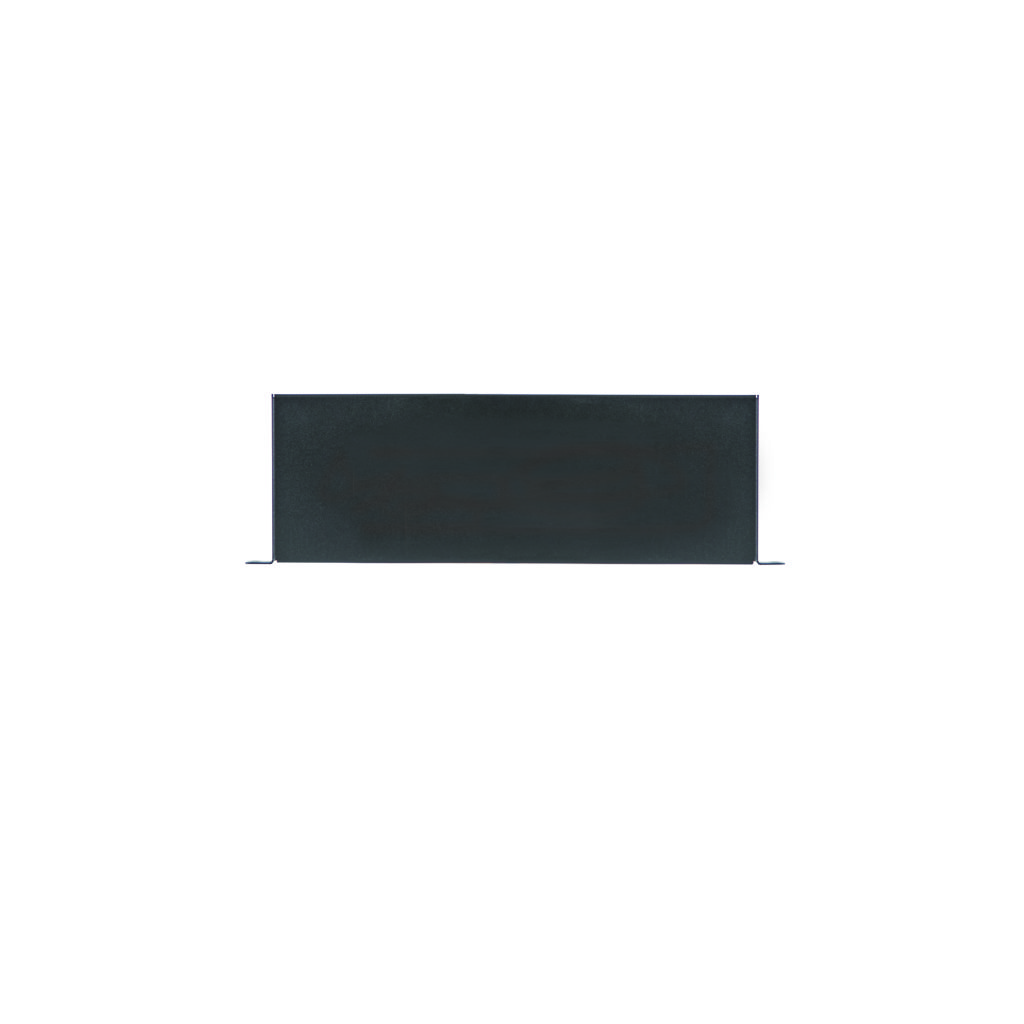

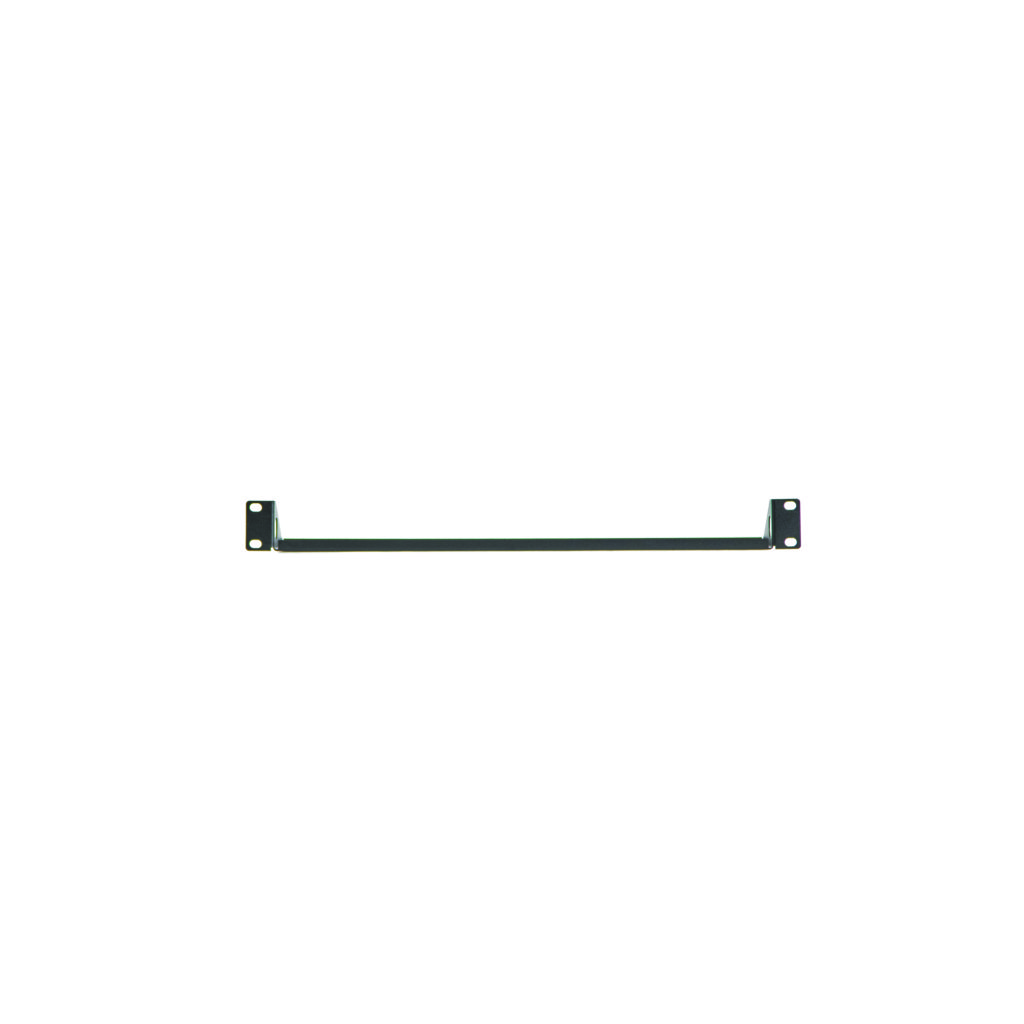

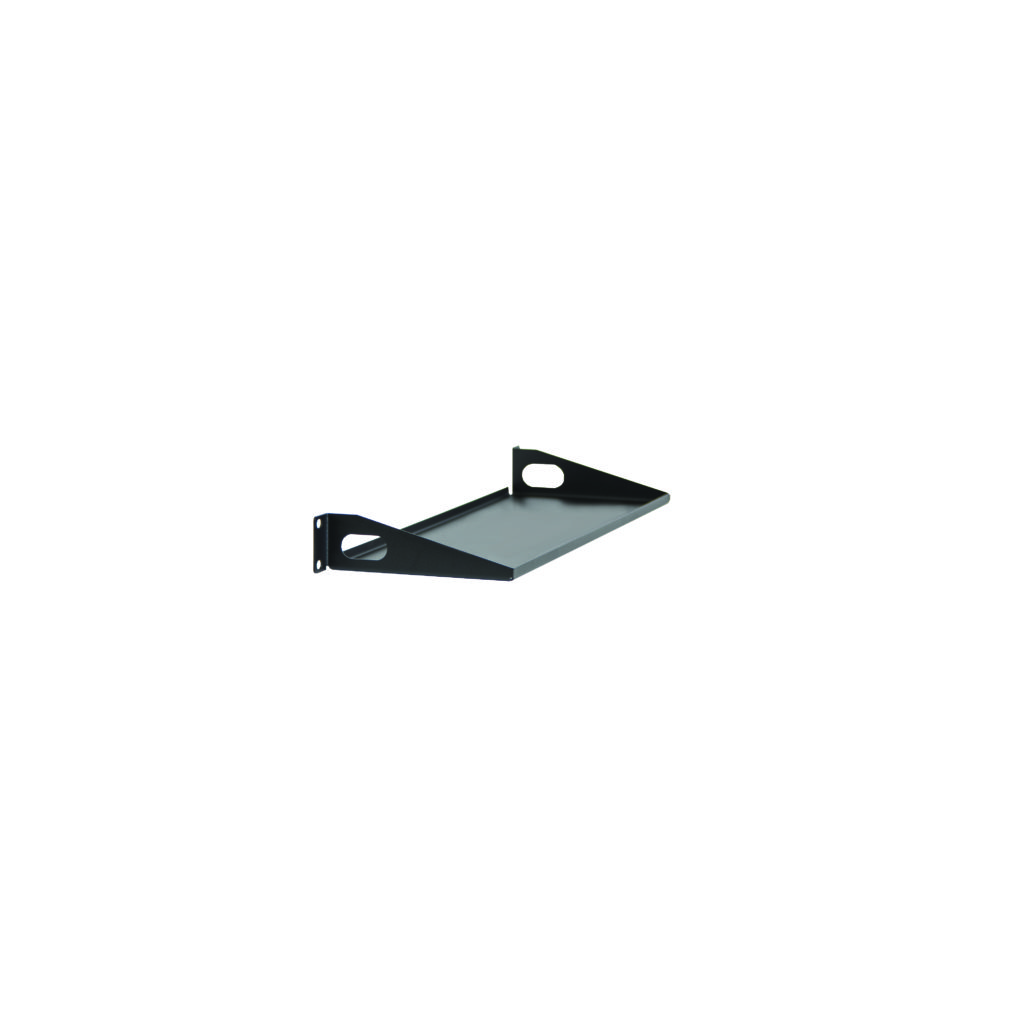

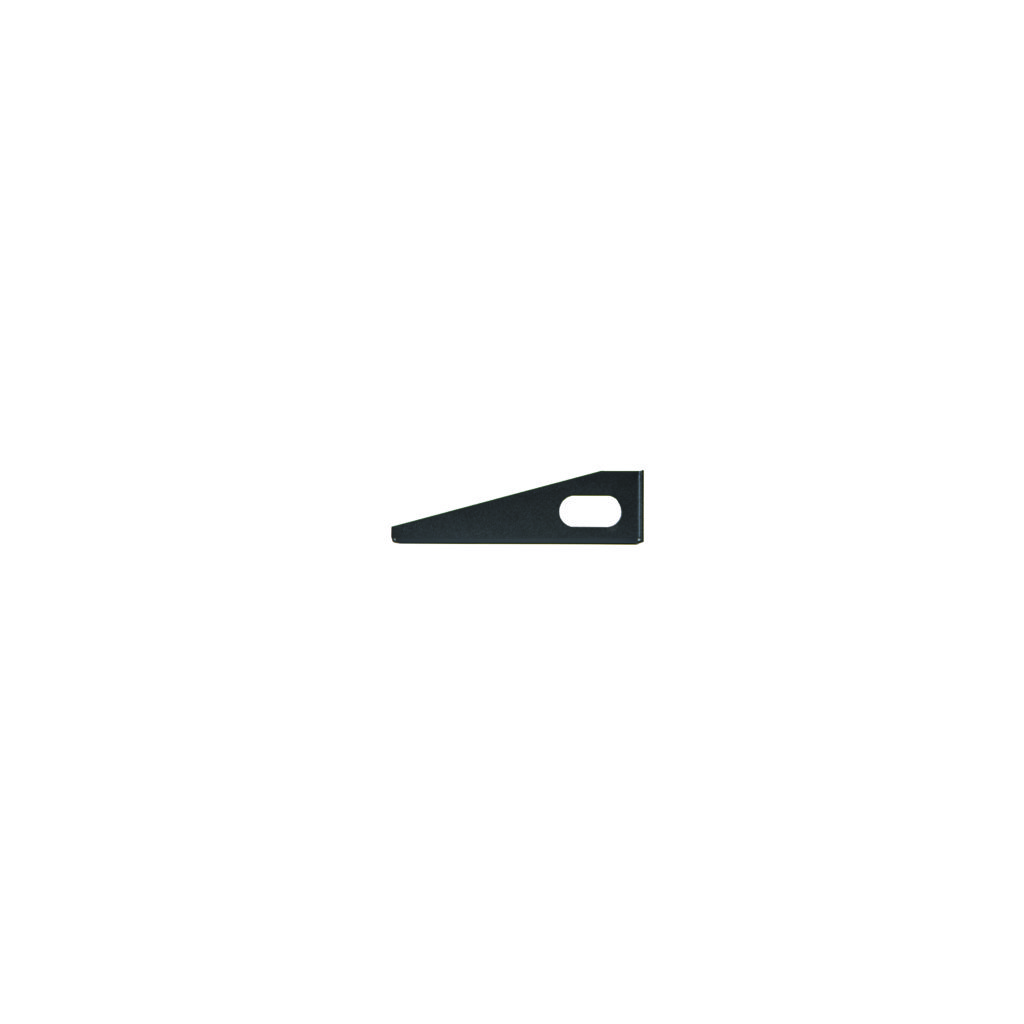

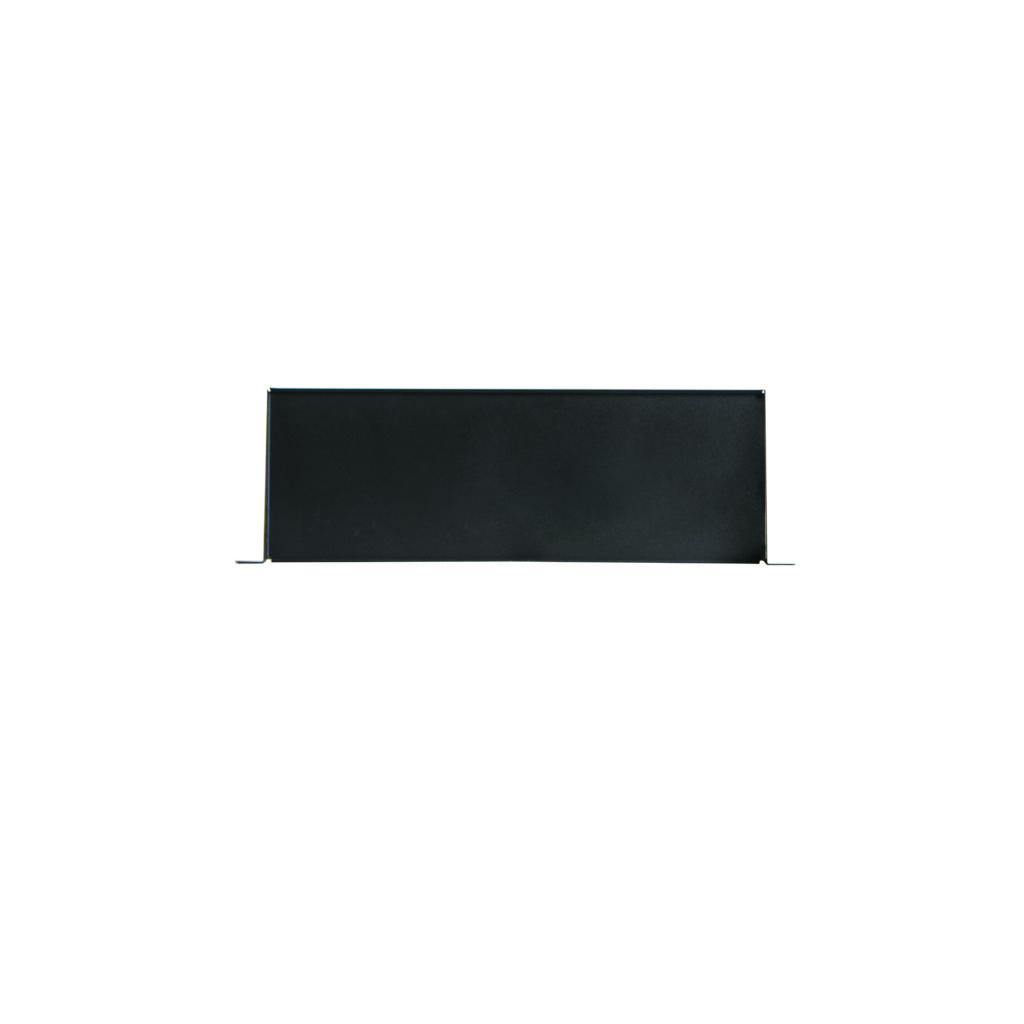

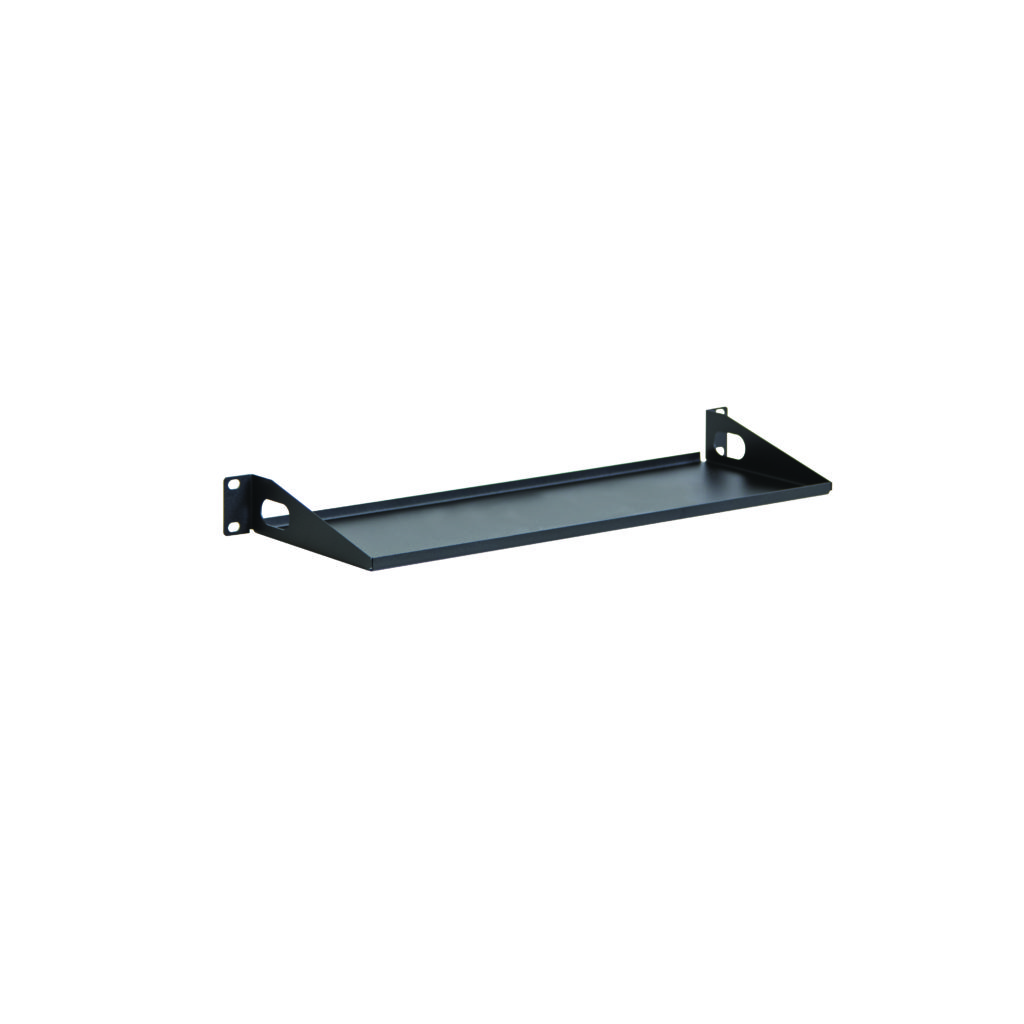

The Kendall Howard 1U 6" Light Duty Rack Shelf constructed of top grade US steel. Rated to hold up to 45 lbs., this cantilever rack shelf is perfect for supporting monitors, switches and other lightweight network or A/V equipment.
Medium Duty
Constructed of a top grade US steel providing a quality shelf to support your non-rack mount equipment at a cost conscious price point.
Easy to Install
Four mounting holes can be used with rack screws (and cage nuts if needed) to easily install in tapped or cage nut style mounting rails.
2-Point Mounting
Cantilever or two-point rack shelf is perfect for use in two-post racks, wall mount racks, and cabinets.
Rounded Corners
Rounded corners eliminate sharp edges which could potentially damage equipment, cabling, or installers’ hands while handling.
Specifications
Part Number | LDRS1U6 |
Width | 19" |
Depth | 6" |
Height | 1.72" |
Weight | 2.10 lbs. |
Shipping Dimensions | 6.5" L x 20.25" W x 2.5" H |
Material(s) | CRS (Cold Rolled Steel) |
Color/Finish | Black Powder Coated Finish |
UPC | 879447001846 |
Warranty | Limited Lifetime Warranty |
Shipping Method | FedEx Ground |
TAA Compliant | Yes |
What's in the Box
Item | Quantity |
---|---|
1U 6" Component Shelf | 1 |
