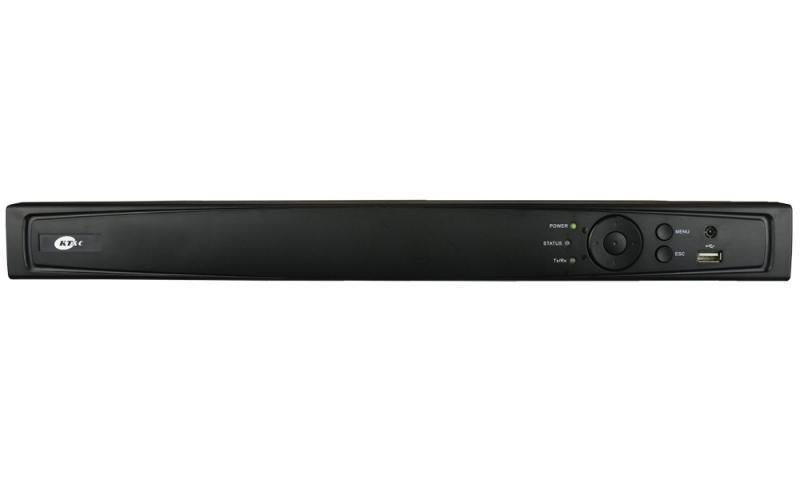

The ENR-p16Px16 from KT&C is a 16 channel NVR with 16 plug and play ports,.
Features:
- Connect up to 16 IP cameras in any combination with no special licenses required
--‘Hands Free’ Plug-and-Play cameras on the 16 built-in PoE ports
--Onvif or other supported IP cameras
--Power cameras with up to 30W each (802.3af PoE) from a total of 200W built in PoE power - Stream an aggregate bandwidth to the NVR of up to 160Mb/s from all connected cameras
- Select camera resolutions up to 6MP
- Local HDMI/VGA monitor displays at up to 1920x1080
- Employ digital zoom in both live view and playback for expanded view of fine details
- Record based on schedule: Continuous, Motion, Event, Alarm, Combinations, VCA, None
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or optional IR remote - Quickly locate and review event video
--Search by date/time, or preview images by pointing along a color coded timeline of record type
--Play based on results of extensive event/alarm log search
--Search for VCA events such as line crossing or area intrusion (requires compatible cameras)
--Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator - Optional arming schedule for action/notifications and alarms (e.g. ignore oncamera motion from specific cameras during normal business hours)
- View, record and play main stream for detail, or sub-stream to conserve bandwidth and CPU resources
- System automatically conserves resources by selecting sub-stream during multiple camera viewing
- User selectable viewing optimization for image detail/fluency or motion
- Choose up to 12Tb of internal HDD storage (optional mirroring), or record to external NAS/SAN
- Option to enable pass thru access from LAN/WAN to cameras or to isolate camera network from LAN/WAN for increased security
- Easy remote access: view NVR over Internet without programming router: built-in uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function)
- Your choice of IE, Firefox or Safari browsers to view live or playback video, or to manage NVR
- Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
- View multiple live/playback video streams on Android/iOS apps, or get HD viewing from tablet specific app
- Free Windows and MAC CMS Client for up to 64 live/4 playback views, manage and back up multiple sites
- Two way audio support (compatible camera required) from NVR, web screens and CMS
|
Streaming Video Inputs & Recording |
|
|
Maximum Number of IP Cameras |
16 |
|
Number of built in PnP/PoE Switch Ports |
16 |
|
Supported Live View/ Record Resolutions |
6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Sub-stream |
Supported for recording, playback and live viewing |
|
Audio streaming |
Supported from audio capable cameras |
|
Maximum FPS rate per camera (Live and Record) |
30FPS Main stream; 30FPS Sub-stream Up to 480FPS total for 16 cameras |
|
Maximum Record Streaming Video Input Bandwidth (all cameras combined) |
160 Mb/s |
|
Recording Compression |
Depends on IP Camera; typically H.264 for main stream, MJPEG for sub-stream |
|
Recording Modes |
Continuous, Motion, Alarm, Motion+Alarm, Motion or Alarm, Event, VCA, None |
|
Motion & VCA Detection |
Camera Side, configurable from NVR for KNC-p3 & KNC-p4 Omni IP Series Cameras |
|
Schedule Period |
Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays |
|
Pre- and Post- Event Recording |
Pre-record 0~30 seconds; post record 5s~10 minutes |
|
Built in network switch port speed |
10/100 Mb/s each port |
|
KT&C Omni-IP 'hands free Plug and Play' Cameras Fully Supported |
Any OMNI-IP models (IPCAM protocol). See camera datasheets for details |
|
Third Party Cameras Supported (requires traditional configuration and setup) |
Onvif; Acti, Arecont, Axis, Bosch, Brickcom, Canon, Hikvision, Hunt, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, Zavio |
|
Local Live Presentation of Streaming Video/Audio |
|
|
Local Display Main Monitor Outputs |
HDMI 60Hz: 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 VGA 60Hz: 1920×1080P, 1600×1200, 1280×1024, 1280×720, 1024×768 |
|
Camera Display Layouts |
1, 2x2, 1+5, 1+7, 3x3, 4x4 |
|
Automatic Stream Selection |
Single camera view and 720p 2x2 at main stream resolution; Automatic switching to sub-stream resolution in other multi-view displays to conserve CPU capacity and maintain parity between per-camera screen area and image size |
|
Audio Output (requires audio equipped cameras) |
1-ch Line Level, RCA (Linear, 1KΩ) |
|
Playback of Recorded Video/Audio |
|
|
Supported Playback Resolutions |
6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Nominal Local Playback Capability |
16 channels @ 4CIF; 12 Channels 720p; 6 channels 1080p (actual playback depends on decoding load which varies based on settings for recorded video bandwidth restrictions, resolution, image quality, FPS rate, compression effciency, and complexity of pixel change in the scene) |
|
Playback search modes |
Time/Date; Manual Tags; Smart Search for motion events from recorded video; Event (Motion/Alarm/VCA) |
|
Playback Controls |
Play; Pause; Forward/Reverse; speed control for single~1.8~xMax (256x) Slide bar with overview of record type and snapshot display from slider position |
|
Digital Zoom During Playback |
Supported on Local Displays and CMS |
|
Local Hard Drives and Other Storage |
|
|
Number of Internal Hard Drives |
Up to 2 SATA HDD; up to 6TB each for 12TB maximum |
|
Mirror Recording |
Can clone pairs of disks |
|
S.M.A.R.T |
With extensive statistics, alarms, on demand tests and reporting |
|
Record to |
HDD, NAS or SAN |
|
Archive to |
USB |
|
Local Plug and Play Camera Network Support |
|
|
Integral PoE Switch |
16 ports 10/100 Mb/s |
|
Camera Network Security |
Option to enable pass thru access from LAN/WAN to cameras or to isolate camera network from LAN/WAN for increased security |
|
PoE Type |
802.3at 30W max per port |
|
Total Power Budget |
200W all ports |
|
PnP Network Support |
Integral DHCP function with address-per-port initial assignment (Using KT&C KNC-p3 & KNC-p4 Omni-IP Series cameras connected to internal PnP PoE switch ports) |
|
Remote Viewing and Local/Remote Configuration |
|
|
Built in Web Server Interface |
Live view, playback and configuration via IE, Firefox, Safari (with free plug-in/extension installed) |
|
OMNI CMS |
PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 4 cameras in playback |
|
Mobile Apps |
iOS and Android supported; up to 4 (Android) or 16 (iOS); 4 camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, is available |
|
User Rights Control |
Per user-per camera for multiple functions |
|
Event Logging |
Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type |
|
Firmware Upgrade |
From USB or remotely |
|
Backup/Restore Configuration |
For NVR settings and for IP Camera settings; from USB or remotely |
|
Network and Other Interfaces |
|
|
LAN/WAN Network Port |
One 10/100/1000Mb/s RJ-45 port |
|
Connection of non-PnP IP cameras |
Supported |
|
Remote Monitoring Output Maximum Bandwidth |
80Mb/s |
|
Maximum number of remote connections |
128 |
|
DST/NTP |
Supported; choice of time zone, NTP server, DST start/end/offset |
|
Port Mapping/uPnP |
Automatic port forwarding/redirection using uPnP on routers with this capability |
|
Serial Interfaces |
1xRS-485 |
|
USB Interfaces |
1 USB2.0 front; 1 USB 3.0 rear |
|
Audio Input |
1 RCA (2VP-P, 1KΩ) |
|
General Mechanical and Environmental |
|
|
Power Input |
100~240VAC, 47~63Hz |
|
Continuous Power Consumption |
200W including PoE |
|
Operating Temperature |
14°F ~ 131°F (-10°C ~ +55°C) |
|
Operating Humidity Range |
10% ~ 90% |
|
Cooling Fan |
2 |
|
Size |
15.0” x 11.42” x 1.9” (380mm x 290mm x 48mm) |
|
Weight (without hard drives or ODD) |
4.4lb (2Kg) NVR only allow ~1.4 lb. per HDD |
|
Certifications |
FCC, CE, RoHS |
