ENR-p8Px8
Part number:
ENR-p8Px8
Price:

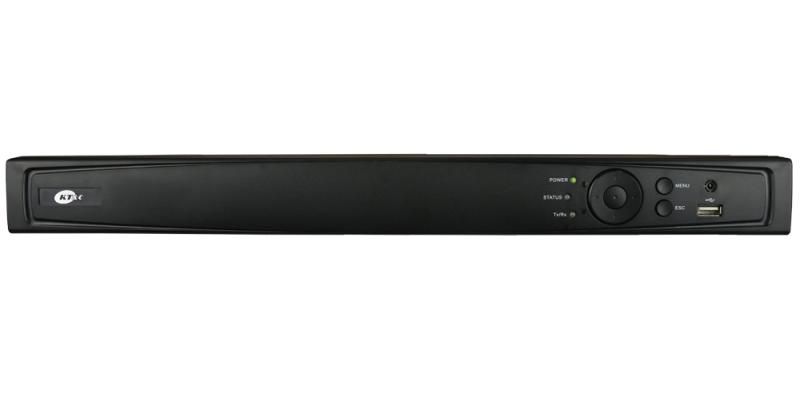

The ENR-p8Px8 from KT&C is a 8 channel NVR with 8 plug and play ports, No HDD.



Features:

  • Connect up to 8 IP cameras in any combination with no special licenses required
  • ‘Hands Free’ Plug-and-Play cameras on the 8 built-in PoE portsOnvif or
  • other supported IP cameras
  • Power cameras with up to 30W each (802.3af PoE) from a total of 120W built in PoE power
  • Stream an aggregate bandwidth to the NVR of up to 80Mb/s from all connected cameras
  • Select camera resolutions up to 6MP
  • Local HDMI/VGA monitor displays at up to 1920x1080
  • Employ digital zoom in both live view and playback for expanded view of fine details
  • Record based on schedule: Continuous, Motion, Event, Alarm, Combinations, VCA, None
  • Easy to use on-screen menus include digital zoom and instant playback of recent video
    - Operate using front panel controls, wheel mouse or optional IR remote
  • Quickly locate and review event video
    --Search by date/time, or preview images by pointing along a color coded timeline of record type
    --Play based on results of extensive event/alarm log search
SKU  ENR-p8Px8
Manufacturer  KT&C
IP Channels  8 Channels
Harddrive Size  No HDD
Protocols  ACTi Protocols, Arecont Protocols, Axis Protocols, Bosch Protocols, BrickCom Protocols, Canon Protocols, HikVision Protocols, Hunt Protocols, Onvif Protocols, Panasonic Protocols, Pelco Protocols, Sony Protocols, Vivotek Protocols, Zavio Protocols, PSIA Protocols
Features  Alarm Notification by E-mail, Audio, Centralized E-map, H.264 Compression, HDMI Output (720p/1080p), MJPEG Compression, Supports PTZ Control, Two-way Audio
Resolution   6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Compression   H.264 , MJPEG
Bandwidth 80 Mb/s
Operating temperature 14°F ~ 131°F (-10°C ~ +55°C)
Dimensions  17.52" x 11.42" x 1.8" (445mm x 290mm x 45mm) Rack Mountable with optional KA-ORM1 brackets
Voltage  100~240VAC, 47~63Hz
Power Consumption  145W including PoE
USB   1 USB2.0 front; 1 USB 3.0 rear
Post-alarm Recording 5s~10 minutes
Pre-alarm Recording 0~30 seconds
Audio   Two way audio
Alarm Notification by E-mail Yes
Centralized E-map Yes
HDMI Output (720p/1080p) Yes
Two Way Audio  Yes
Supports PTZ Control Yes
H.264 Compression Yes
MJPEG Compression Yes
