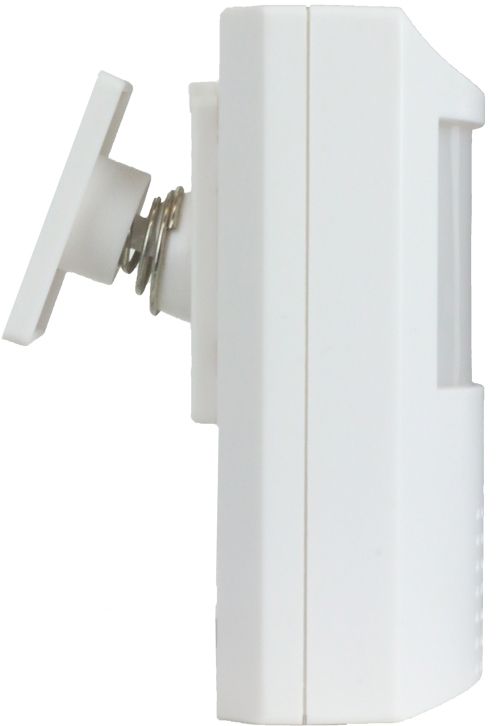

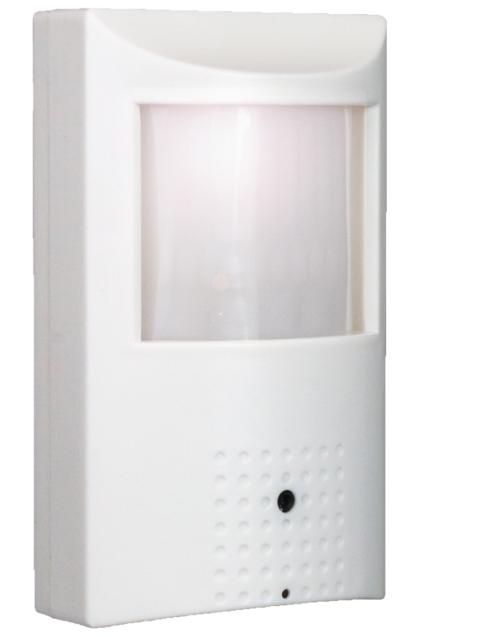

The KCC-b2PI4 from KT&C is a 1080p HD-TVI indoor PIR camera, 3.7mm lens.
Features:
- Superlative HD resolution of 1080p Full HD for amazing image quality
- useful digital zoom on live view and playback
- Field select 30 or 25 Hz - Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair) - HD-TVI HD BNC main output
- Field select CVBS analog service video for test/alignment - Covert PIR shaped housing for unobtrusive surveillance
- CMOS Sensor size 1/2.8” with 2.4 Megapixels
- OSD joystick at camera
- Auto Electronic Shutter (AES)
- Back Light (BLC) and Front Light (FLC) Compensation
- White balance for colorful or monochrome environments
- D/N operation with selectable auto/color/monochrome
- 2D Noise Reduction (2DNR) with separate Y & C control
- Sharpness control for detail, edge and saturation - 12VDC power with low current draw
|
Model |
KCC-b2PI4 |
|
Image Sensor |
1/2.8’’ 2.4 Megapixel CMOS |
|
Effective Picture Elements |
1920x1080 pixels |
|
Video Output |
HD-TVI: 1080p 30/25Hz nominal 960H CVBS for test/alignment switchable at camera |
|
Minimum Illumination |
0.01LUX @ F1.2 (AGC on) |
|
Lens Furnished |
Pinhole lens 3.7mm |
|
S/N Ratio |
More than 52 dB |
|
OSD Menu |
3-axis joystick on cable |
|
Scanning system |
NTSC/PAL selectable |
|
Auto Electronic Shutter |
NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s |
|
Gamma Characteristic |
0.45 |
|
Day/Night |
Internal/Color/Mono |
|
Gain Control |
Automatic, adjustable for brightness |
|
White Balance |
Auto/Gray |
|
Back/Front Light Compen- sation |
Off/BLC/FLC |
|
Noise Reduction |
Off/On for 2DNR, Y, C |
|
Sharpness |
Adjustable for Detail, Edge and Saturation |
|
Synchronization |
Internal |
|
OSD Language |
English and Chinese |
|
Video Output |
BNC-F; 1 V p-p / 75 ohm HD-TVI or CVBS |
|
Operating Temperature |
14°F to 113°F (-10°C to 45°C) |
|
Humidity |
Indoor 85% non-condensing |
|
Power Supply Requirements |
12VDC regulated; 300mA recommended |
|
Weight |
4.2 oz. / 120 gm |
|
Dimensions |
2.72“ w x 4.72“ H x 1.85” d (69mm w x 120mm h x 47mm d) Add 1.18“ (30mm) to depth for mount |
