KT&C - KEZ-b2TR28V12IRG - Gray IR Turret, 2.8-12mm
Part number:
KEZ-b2TR28V12IRG
Price:

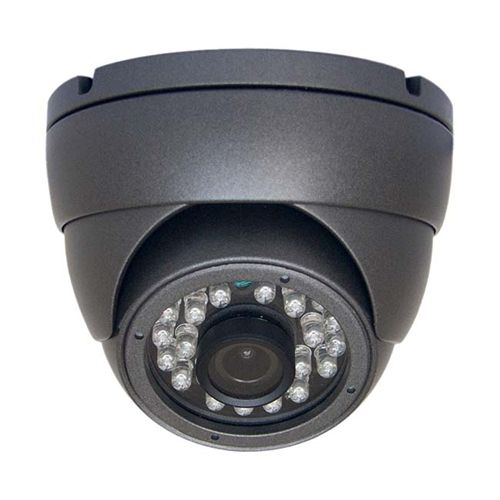

The KEZ-b2TR28V12IRG from KT&C is a 1080p HD-TVI outdoor turret camera with IR, gray color.
Features:
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- 2.8-12mm lens to capture the desired field of view
- True Day/Night zero light operating range of 115 feet or more* from 42 IR LEDs
- OSD menu controlled by joystick
- Switch between TVI and CVBS to use hand held test monitor for aim & focus
- Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
- IP66 weather resistant, vandal resistant metal housing
- Choice of gray or white housing color to blend or contrast with the décor
- Operating temperature range of 14°F~113°F
- 12VDC operation with low current draw
- Available in white (KEZ-b2TR28V12IRW)
|
Image Sensor |
1/2.8” 2.4 MP CMOS |
|
Pixels |
1920 (H) x 1080 (V) |
|
Electronic Shutter |
1/60 (50) ~ 1/100,000 |
|
Video Output Connector |
BNC-F |
|
Video Output |
TVI: 1080p 30/25; NTSC:PAL FPS OSD Selectable; TVI/CVBS Switch via on-cable joystick |
|
Synchronization |
Internal |
|
Minimum Illumination |
0.01Lux @ F1.2 (AGC On), 0 Lux IR On |
|
IR LED |
42 IR |
|
IR Distance |
115 Feet* |
|
Day/Night |
Auto (ICR), Color, B/W |
|
Noise Reduction |
2D |
|
Lens Focal Length |
2.8~12mm, Varifocal Lens |
|
Environmental |
IP66 Weather Resistant |
|
Dimension |
4.72” (Diameter) x 3.38” (H) |
|
Working Temperature |
-14° F ~ 113° F (-10° ~ 45° C) |
|
Power Supply |
DC12V + 10% |
|
Power Consumption |
600mA |
|
Weight |
1.63 Lbs |
