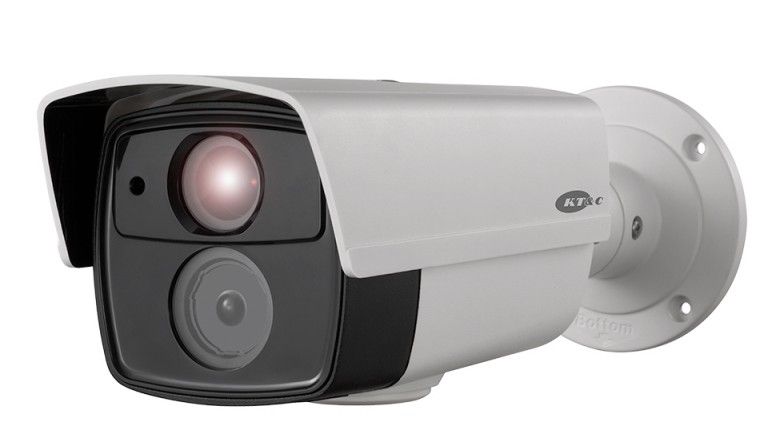

The KEZ-c2BR28V12XIR from KT&C is a 1/3” progressive scan CMOS IR bullet camera.
Features:
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- HD-TVI HD BNC output, plus CVBS analog BNC output for alternative connection/monitoring**
- CVBS Service Video output for convenient installation, and ease of service
- Operation over ‘almost any’ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair) - 1/3” progressive scan CMOS sensor with .01 lux native light sensitivity
- Externally adjustable 2.8~12mm F=1.4 Varifocal Megapixel lens to capture the desired field of view (92°~32° FOV)
- 120dB True Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions**
- Digital slow shutter (Sens-Up) low light enhancement*
- True Day/Night zero light operating range of 164 feet or more (depending on scene reflectivity) from Super Beam IR LED
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu
- Local 5-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- True Wide Dynamic Range for bright or unbalanced scene lighting conditions
- Digital Wide Dynamic range option
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D + 2D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details - Smart digital zoom** expands a selected area within the field of view to full screen when motion is detected
- Smart focus to adjust the lens by maximizing the easy to see on screen numeric readout to optimize focus
- Dual 24VAC/12VDC operation with low current draw
- IP66 weather resistant, vandal resistant construction
- Operating temperature range of -4°F~140°F
- Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box
| Imaging Device | 1/3" Progressive Scan CMOS |
| Video Format | Main Output: 1080p30/25 HD-TVI (30/25Hx OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) aux video, plus test point** |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL |
| True WDR Range** | 120dB |
| Sensitivity | 0 lux IR on; .01 lux @ F1.2 (AGC On) |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens Type | Megapixel Varifocal Type 2.8~12mm F=1.4 IR corrected |
| Angle of view | 92°(2.8mm) ~ 32°(12mm) |
| IR LED | One Super Beam LED, 850nm (Can be disabled in OSD if desired) |
| IR Range† | 164’ / 50m |
| Smart IR Exposure Adjust | Active when IR enabled |
| S/N Ratio | Over 52dB |
| Video Output Connector Type | TVI and CVBS: BNC 75Ω |
| Test Video: CVBS video test point inside access cover, cable to BNC supplied | |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using 3-axis joystick under access cover; UTC Control |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Mandarin, Cantonese, French, Korean, Italian, Polish, Dutch, Turkish, Hebrew, Arabic |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| Smart Focus | Display of on screen index of relative focus; optimize number for best focus |
| Scene Optimization | Choose: Indoor, Indoor 1, Outdoor, Low Light |
| WDR/BLC/HSBLC | OFF/WDR/BLC/HSBLC Selectable WDR: Low, Middle, High; adjustable brightness and offset, BLC: Low, Middle, High with adjustable area size/position, HSBLC: On/Off for 4 areas, adjustable area size/ position and level; full time or night-only |
| Auto Gain Control | 0~15 |
| Electronic Shutter | Auto; or 1/30 (25), FLK, to 1/50,000 |
| White Balance | ATW; AWC->SET; Manual |
| Color Correction | Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled. Optional color-only and B/W only modes under OSD control |
| Digital Slow Shutter [DSS] | DSS low light boost Off/Auto 2~30* |
| 2D-DNR | On/Off |
| 3D-DNR | Off/On: Smart Noise Reduction with adjustable level; adjustable AGC range limits |
| Digital Zoom | 2X~62X with virtual P/T (area selection) |
| Smart Digital Zoom | Select programmable area and sensitivity level; while in-area motion/pixel change is detected, image zooms to full screen display of selected area and holds for user selected time; size of area to be shown full screen selected defines zoom ratio when active. |
| Brightness | 1~100 |
| Defog | Adjustable area size/position; gradient off, low, middle, high |
| Digital Wide Dynamic Range | On/Off |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for 4 programmable zones (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/On |
| DPC (Defective Pixel Correction) | Live mode with level adjust; static mode with level, DSS and AGC adjust |
| Smart Digital Focus | OSD of numeric indication of degree of image focus |
| Other OSD Functions | Flickerless; Camera Title with position, Font Color; Image Sharpness; CRT/LCD display optimization; Negative Image |
| Power Source | 12VDC/24VAC |
| Power Consumption | 12VDC:585mA ; 24VAC: 10W |
| Operating Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Environmental | IP66 weather resistant |
| Mechanical | Metal body with plastic access ports for controls. External lens adjust. Access port for 3-axis OSD joystick controls, CVBS video test point, and switch to toggle WDR state. |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~90° Rotate: 0~360° |
| Dimensions | 11.84” × 3.97” × 4.23” [301 × 101 × 108mm] |
| Weight | 1.54 lbs./.7Kg |
| Mounting Options | Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box |
| Certifications | CE / FCC / RoHS |
