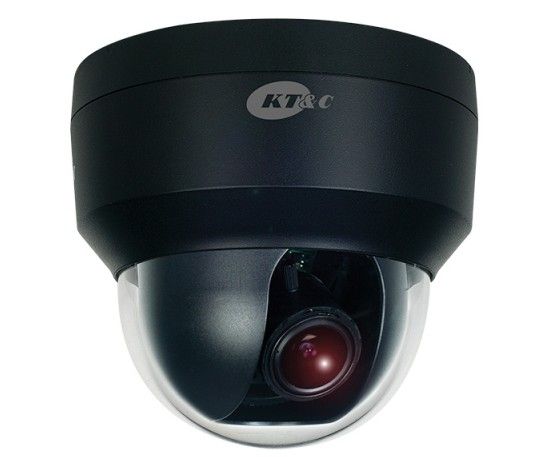

The KEZ-c2DI28V12NB from KT&C is a 1080p HD-TVI Indoor Dome, f2.8~12mm, AC/DC Dual Voltage, UTC, Black.
Features:
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and
- useful digital zoom on live view and playback
- Field select 1080p or 720p
- Field select 30/25 Hz or 60/50 Hz - Operation over ‘almost any’ wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair) - HD-TVI HD BNC main output
- CVBS analog service video output inside housing
- Use standard hand held test monitors
- Convenient aim and focus; ease of service - 1/3” Sony progressive scan CMOS sensor with .5 lux native light sensitivity
- Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view
- Digital Day/Night low light operation plus Digital Slow Shutter low light enhancement*
- Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
- digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading Compensation for even exposure out to the Lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details
- image H/V flip and rotate, digital zoom and More - Dual voltage 24VAC/12VDC operation with low current draw
- Choice of black or white plastic housing (2 models) to blend or contrast with the décor
- 3-Axis positioning for convenient wall or ceiling mounting
- Easy-mount twist-on mounting plate (attach plate; housing covers/locks onto plate; or, mount directly on surface) - Optional KA-ICMP1 with integral twist-on for mounting to standard electrical boxes
|
Imaging Device |
1/3" Sony 2.1Mp Progressive Scan CMOS |
|
Video Format |
Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point |
|
Picture Elements |
1984 (H) x 1105 (V) |
|
Effective Picture Elements |
1920 (H) x 1080 (V) |
|
Horizontal Resolution |
More than 1080 HTVL (in 1080p mode) |
|
Sensitivity |
.5 lux @ F1.6 (AGC On) |
|
Day/Night Type |
Digital Day/Night |
|
Lens Type |
2 Megapixel Varifocal Type 2.8~12mm F=1.6 |
|
Video Output Connector Type |
TVI and CVBS: BNC 75Ω Test Video: CVBS video test point inside access cover, cable to BNC supplied |
|
Sync. Mode |
Internal |
|
OSD Menu |
Multiple functions using 3-axis joystick inside housing; UTC Control |
|
OSD Languages |
English, Spanish, Portuguese, German, Russian, Japanese, French |
|
UTC Control |
Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
|
DWDR / BLC / HSBLC |
OFF/WDR/BLC/HSBLC Selectable |
|
Adjustable for Level 1~10; also BLC area, HLC color. |
|
|
Auto Gain Control |
OFF; 2~42dB |
|
Electronic Shutter |
Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
|
White Balance |
Auto / Push Lock / Manual |
|
Color Correction |
Gamma 0.45~.65, adjustable |
|
Day & Night |
Digital D/N; Optional color-only and B/W only modes under OSD control |
|
Sens-Up |
DSS low light boost Off/Auto 2X~16X* |
|
3D-DNR |
Off/Low/Mid/High |
|
Digital Zoom |
1X~8X |
|
Defog |
Off/Low/Mid/High |
|
Mirror |
Off / H-flip, V-flip, rotate |
|
Motion Detection |
Off/On for programmable zone with sensitivity adjust (pixel change detection) |
|
Privacy Mask |
Off/On with full programmability for 8 selectable zones |
|
Lens Shading Compensation) |
Off/Low/Mid/High |
|
DPC (Defective Pixel Correction) |
Off/On |
|
Other OSD Functions |
Camera Title with position, Font Color; Image Sharpness |
|
Power Source |
12VDC/24VAC |
|
Power Consumption |
12VDC: 230mA, 24VAC: 2.5W |
|
Operating Temperature |
-14 °F ~ 122 °F (-10 °C ~ 50 °C) |
|
Environmental |
Indoor, up to 80% RH |
|
Mechanical |
Three axis positioning; plastic housing with snap on cover; clear bubble for maximum light transmission, with integral liner to inhibit observation of camera direction; choice of black body (B suffix) and white body (W suffix) |
|
Mounting |
Included easy-mount twist-on plate (attach to surface; housing base locks to plate); or, mount camera directly to surface if desired. Optional rough-in box adapter with integral twist-on fits 1 or 2 gang boxes or 4” octagonal boxes |
|
Dimensions |
4.21” (107mm) diameter, 3.82” (97.1mm) high With box adapter 5.91” (150mm) diameter x 4.18” (106.1mm) high |
|
Weight |
8 oz./ 0.5 lb. / 230 g |
|
Mounting Options |
Junction Box Adapter Plate KA-ICMP1 |
|
Certifications |
CE / FCC / RoHS |
